Price is for a SET of 2 panels
The SA3100™ Level IIIA Soft armor cummerbund panels provide excellent protection against handgun rounds at a price point most individuals and small agencies can afford.

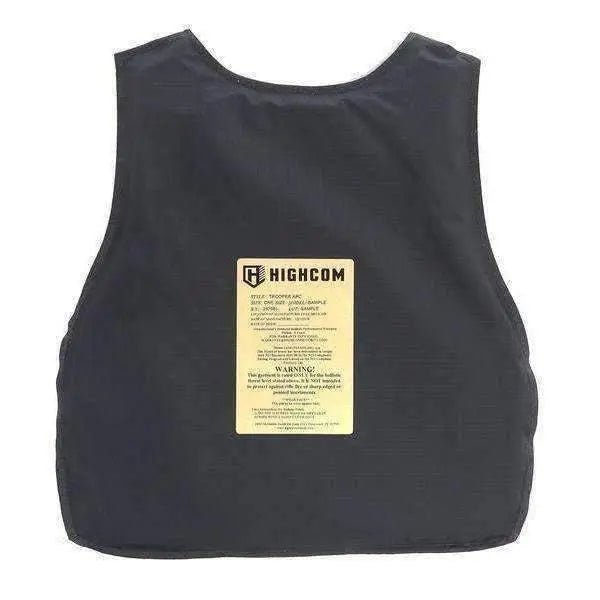

The Trooper SA3100™ is high performing, cost-effective Level IIIA soft armor
solution. Engineered with a proprietary hybrid solution of woven and
unidirectional protective materials, utilizing Twaron® aramid fibers, the
sa3100 is NIJ 0101.06 compliant “Certified” by NIJ and can be found on the
NIJ’s CPL (Compliant Product List).
These panels are manufactured by Highcom Armor at their Ohio facility and private labeled for Chase Armor.
It is designed to work with the Trooper ACAP-RESCUE and CAP-RESCUE Plate carriers but will fit a variety of other similarly sized units.
- NIJ Standard 0101.06 Certified: Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06
- Aerial Density: 1.32 psf (6.44 kg/sqm)
- Thinness: 0.287’’
- Material: Enhanced blend of woven and unidirectional aramid fibers
- Multi-hit capabilities
- Sonobond Sealed ripstop water resistant cover
- Custom sizing: Available for minimum quantity +20% surcharge per size.
- Warranty: 5 years on all ballistic material and 1 year on exterior cover material and workmanship
WEAPON TYPES
| CARTRIDGE | PROJECTILE | VEL (ft/s ± 30) | VEL (m/s ± 9) |
| .357 SIG (NIJ06) | 125 gr FMJ | 1470 | 448 |
| .44 Magnum (NIJ06) | 240 gr SJHP | 1430 | 436 |
| .357 Magnum | 158 gr JSP | 1430 | 435 |
| .44 Magnum | 240 gr SWCGC | 1400 | 426 |
| 9 x 19 mm Parabellum | 124 gr FMJ RN | 1400 | 426 |
| 40 S&W | 180 gr FMJ | 1155 | 352 |
SPECIAL THREATS
| CARTRIDGE | PROJECTILE | VELOCITY |
| 9mm SXT | 9-mm +P+, 127-grain SXT | 1360 fps / 415 ms |
| .40 Cal GDHP | .40-cal., 165-grain S+W Speer GDHP | 1279 fps / 390 ms |
| 5.7 x 28mm SS195 | 5.70 x 28-mm, 27-grain SS195 LFHP | 2041 fps / 622 ms |
| 5.7 x 28mm SS197 | 5.70 x 28-mm, 40-grain Hornady V-Max Blue Tip | 1815 fps / 553 ms |
