ARS zur Nadeldekompression

Is the ARS for Needle Decompression CoTCCC-recommended?

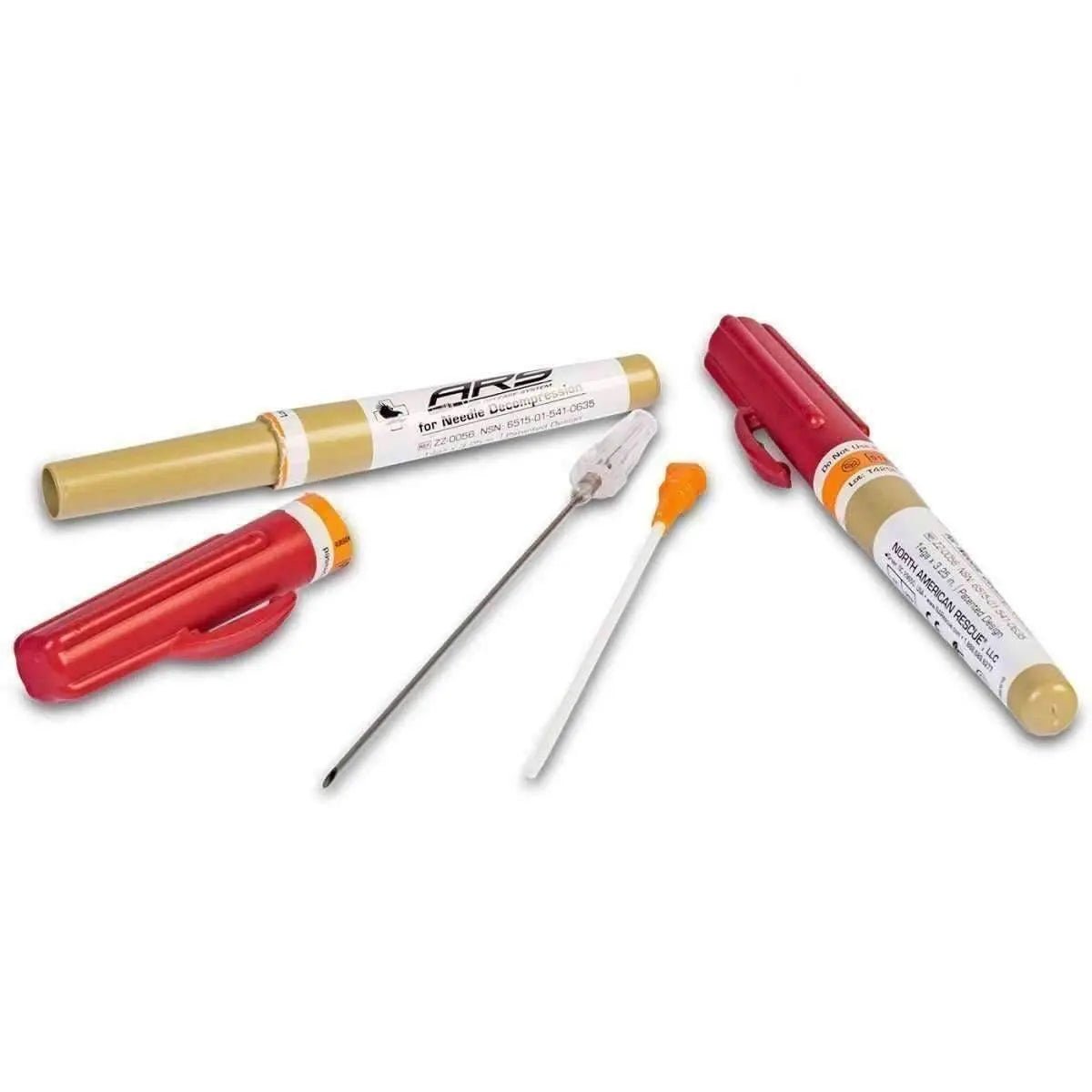

Yes. The CoTCCC-recommended device for needle chest decompression (NDC) is a 14-gauge or 10-gauge, 3.25-inch needle/catheter unit — precisely what the NAR ARS® provides. Both the 14 Ga. (ZZ-0056) and 10 Ga. (ZZ-0298) ARS variants meet this specification. The 10-gauge option was added to the CoTCCC guidelines in 2018 as an alternative to the 14-gauge for units seeking a larger-lumen decompression catheter.

What makes the 3.25-inch length important for needle decompression?

Clinical and CT-based studies have demonstrated that standard 2-inch needles fail to reach the pleural space in 42–50% of patients at the 2nd ICS-MCL due to chest wall thickness variation. A landmark study published in the Journal of Trauma and Acute Care Surgery found that 8 cm (3.25 in.) catheters were significantly more effective than 5 cm catheters (83% vs. 41%; p=0.01). The 3.25-inch ARS® ensures pleural access in the vast majority of adult patients and aligns with TCCC standards that have eliminated NDC-failure combat fatalities since adoption.

What is the purpose of the capless flash chamber on the ARS?

The capless flash chamber eliminates the step of removing a protective needle cap before insertion — a critical failsafe in high-stress environments where fine motor skills are degraded. As the needle enters the pleural space, the flash chamber provides immediate visual confirmation of placement. This unobstructed design reduces the risk of delay or fumbling during a life-threatening decompression procedure.

Should I use the 14-gauge or 10-gauge ARS?

Both gauges deliver 3.25 inches of needle length and meet CoTCCC standards. The 10-gauge provides approximately 60% more lumen diameter (over 2.5 times greater cross-sectional flow area) compared to the 14-gauge, enabling faster pressure relief. The choice between them is typically determined by your unit's medical director, standing medical orders, or service-specific protocol. Military units following updated 2018+ TCCC guidelines may be authorized for either; civilian TECC protocols most commonly specify 14 Ga.

Where should needle decompression be performed per TCCC guidelines?

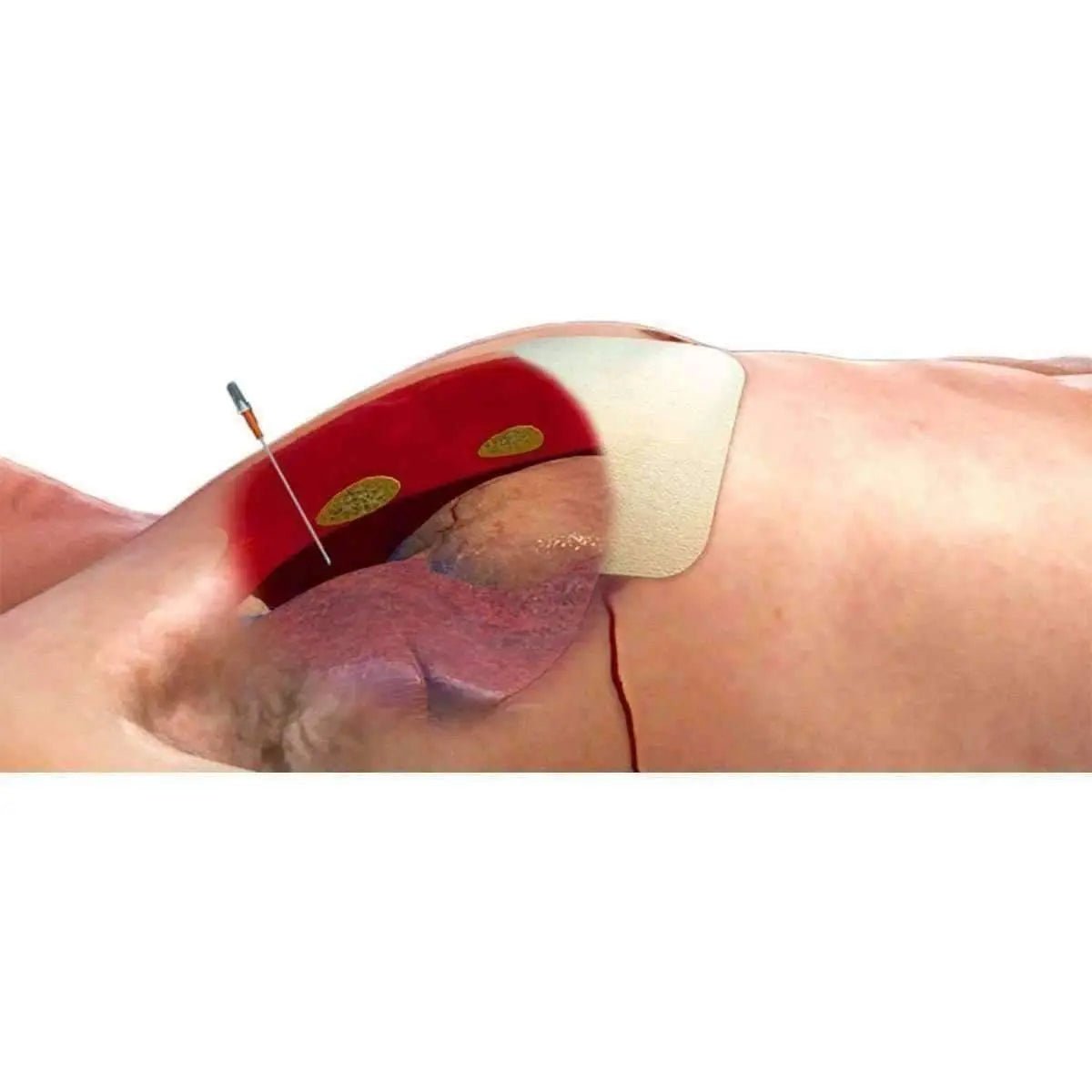

Current TCCC guidelines identify two acceptable sites: (1) the 2nd intercostal space at the midclavicular line (2 ICS-MCL), and (2) the 4th–5th intercostal space at the anterior axillary line (AAL) as an alternate. The needle/catheter unit should be inserted perpendicular to the chest wall all the way to the hub, held in place for 5–10 seconds for full decompression, then the needle is removed leaving the catheter in place. If the first attempt is unsuccessful, a second attempt should be made at the other recommended site on the same side using a new ARS unit.

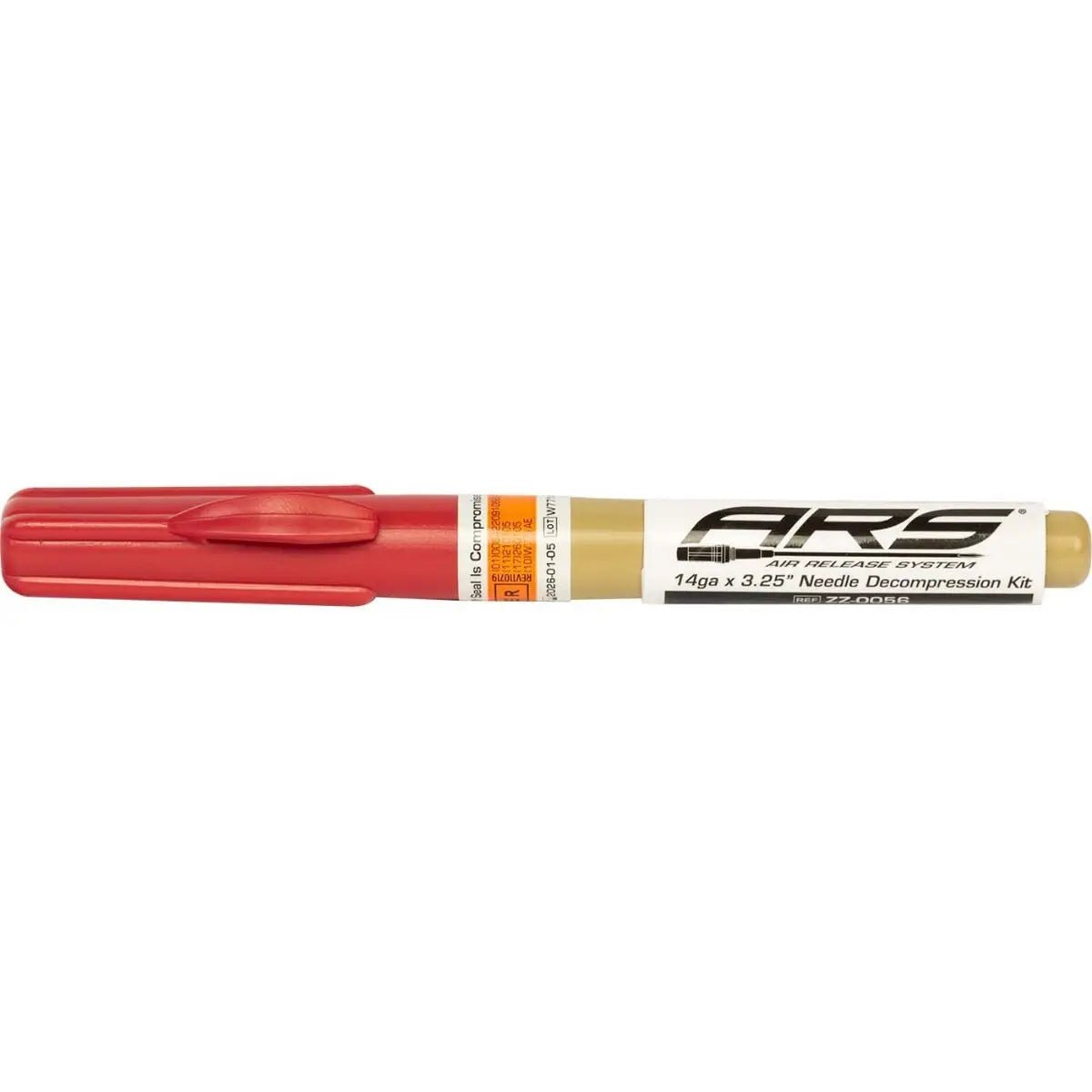

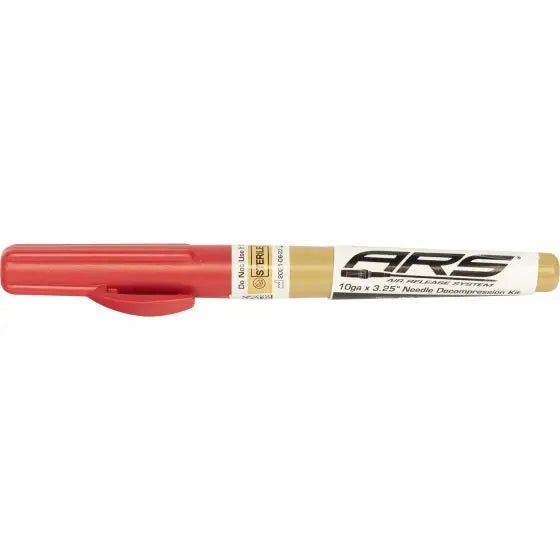

What is the difference between the 14 Ga. and 10 Ga. ARS?

Same 3.25-inch length, same protective tube, same capless flash chamber design. The 10 Ga. (ZZ-0298, $15.99) has a ~60% larger lumen bore than the 14 Ga. (ZZ-0056, $9.99) — faster decompression airflow and reduced kink risk due to the thicker catheter wall. CoTCCC added the 10 Ga. in 2018 and now recommends it for the anterior 2nd ICS MCL approach in many updated protocols. When budget allows, carry both gauges — $25.98 for the pair covers both primary and backup scenarios.

Which gauge does CoTCCC currently recommend?

Both the 14 Ga. and 10 Ga. ARS are CoTCCC-recommended. Updated CoTCCC guidance recommends the 10 Ga. for the anterior (2nd ICS MCL) approach and the 14 Ga. for the lateral (4th/5th ICS AAL) approach, though specific guidance varies by unit protocol and TCCC card version. Always check your unit's current TCCC card — medical directors set gauge specification for your protocol.

Is this CoTCCC-recommended?

Yes. The NAR ARS is listed under CoTCCC SEL# 09MS-02-THOR, developed in collaboration with military pre-hospital providers. Both gauge variants are on the CoTCCC recommended list. Use the language 'CoTCCC-recommended'; do not say 'CoTCCC-approved.'

What does the capless flash chamber do?

The capless hub on the needle assembly allows immediate visual confirmation — an audible air rush and visible movement through the open chamber — when the needle enters the pleural space. Standard IV angiocatheters have a closed cap requiring removal under stress. The ARS eliminates that step and provides instant placement feedback, both of which matter when working fast in a tactical environment.

Who can use the ARS?

Trained medical providers: TCCC-certified medics, paramedics, PAs, physicians, SOF medical personnel (18D, SOCM), and law enforcement trained to TEMS standards with needle thoracostomy in their scope. Incorrect placement risks puncturing the heart, liver, or subclavian vessels. Train before you carry — ideally on cadaveric or porcine simulation with both gauge variants.
