Teleskop-Faltschiene (TC-Schiene)

How does the TC Splint achieve rigid immobilization while being collapsible?

The TC Splint uses 6 high-grade 304 stainless steel telescoping poles contained within a 400 denier nylon shell. When the poles are extended and locked in position, they create a rigid structural framework 34 inches long that provides firm immobilization for major and minor fractures — without requiring a bulky rigid padded board. The poles collapse and nest together for storage at 8 × 5 × 3 inches.

What is the deployed size of the NAR TC Splint?

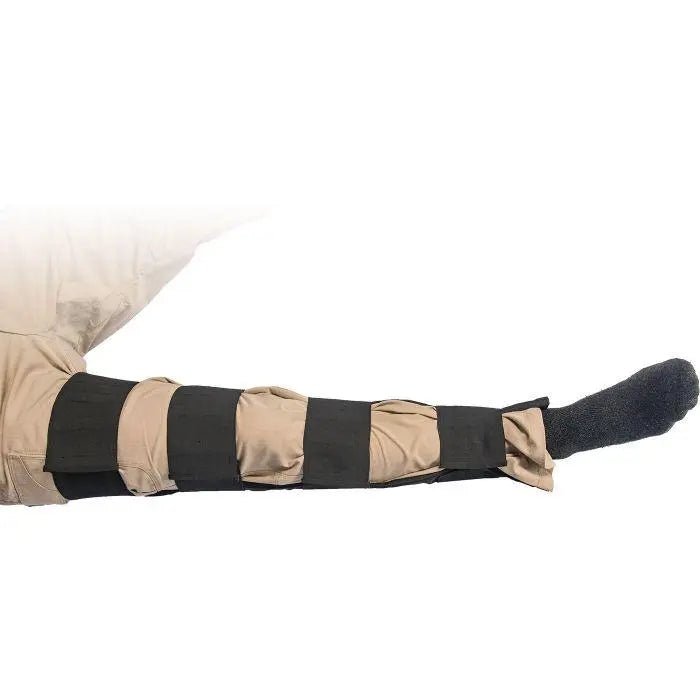

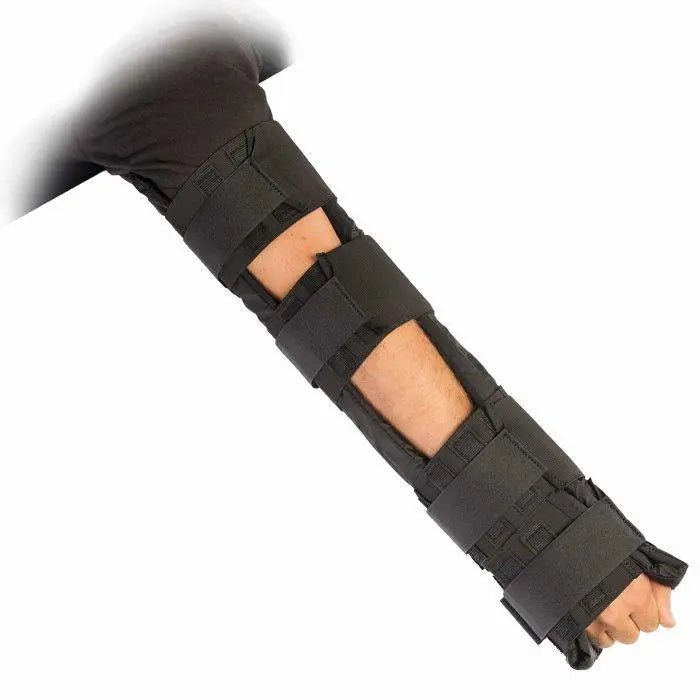

When fully deployed, the TC Splint measures 34 × 9.5 inches — appropriate for immobilizing lower extremity fractures (tibia, fibula, ankle) and upper extremity injuries. The telescoping poles can be adjusted within this range to accommodate different limb lengths and injury locations.

How does the TC Splint secure to the injured limb?

The TC Splint uses 4 wide elastic bands with hook-and-loop (Velcro-style) closures that attach at multiple points along the splint's length. This multi-point securing system distributes pressure evenly along the injury site and prevents limb movement relative to the splint during transport.

Is the TC Splint suitable for tactical and austere environment use?

Yes. The TC Splint is designed and marketed by North American Rescue specifically for tactical, field, and pre-hospital use by medics, first responders, emergency management professionals, and search and rescue teams. The 400 denier nylon shell is water resistant, the non-absorbent foam padding does not retain blood or fluid, and the stainless steel poles are corrosion resistant.

How does the TC Splint compare to the SAM Splint II for major fracture immobilization?

For major long-bone fractures (distal tibia, fibula, ankle), the TC Splint provides firmer, more reliable immobilization due to its rigid stainless steel pole construction. The SAM Splint II uses an aluminum-foam moldable design that provides good immobilization for upper extremity injuries but is less suited to long-distance patient transport of major lower extremity fractures. The TC Splint is the preferred NAR option for rigid lower extremity splinting in a packable format.

Is the Telescoping Collapsible Splint (TC Splint) CoTCCC-recommended?

The TC Splint is a rigid immobilisation device for extremity fractures and is appropriate for use within TCCC's Circulation (C) phase. It is not a traction device. CoTCCC does not issue recommendations for rigid splints by name; verify your unit's TCCC protocols and medical director guidance for fracture management indications.

What fracture types is the TC Splint designed to treat?

The TC Splint is designed for rigid immobilisation of a wide variety of major and minor extremity fractures — including radius, ulna, tibia, fibula, and humerus. It is not a traction device and is not indicated as the primary tool for mid-shaft femur fractures, which require traction (CT-6 or STS).

How are the six telescoping poles adjusted for different limb lengths?

The six high-grade 304 stainless-steel poles are interconnected and extend simultaneously using grip spacers between the poles. Telescoping adjustment allows the deployed length to be sized for the injured limb, with hook-and-loop straps securing the device in position after adjustment.

What are the NSN and procurement details for the TC Splint?

SKU: 50-0039. The TC Splint is available through North American Rescue and MED-TAC International via GSA and ECAT procurement channels. Contact NAR or MED-TAC International for current NSN data and agency pricing.

Can the TC Splint be cleaned and reused?

The non-absorbent 400-denier nylon shell and non-absorbent foam padding are designed to resist fluid absorption, supporting field decontamination. Follow your unit's infection control protocols for cleaning; the structural poles are stainless steel and can be wiped with standard antiseptic solutions between uses.
