An automated tourniquet moves the hardest part of the job — generating and holding occlusion pressure — from the user's hands to the device. Where it goes, when it goes on and what happens next still belong to the person holding it.
At a glance
12 things to know about the TAK710
What the automation does, what you still have to do, and what the evidence does and does not cover.
-
01
The device does the tightening

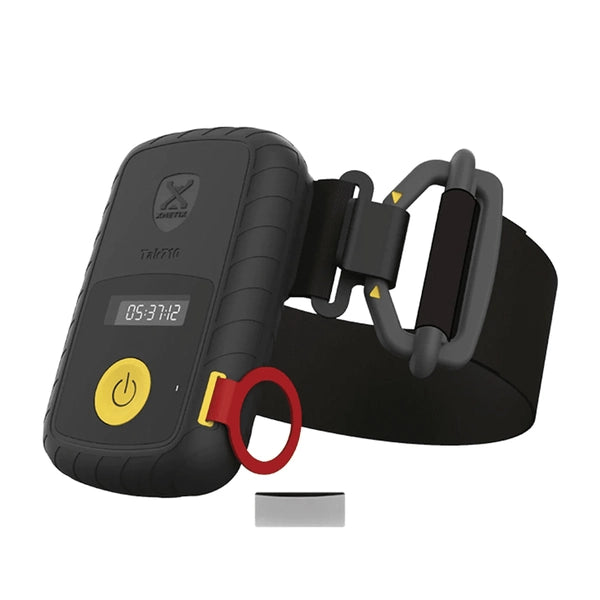

Xmetix built the TAK710 so the user does not have to generate the pressure: place it, pull the strap, press the button, and the unit applies compression and adjusts to the limb — no windlass and no twisting.3,4 Xmetix's published patent for an automatic tourniquet describes how such a device works: a battery-powered motor drives a gear that tightens a strip along the cuff band, with sensors, an activation button and a display with an internal clock.6
-
02
Four steps
Put it on the limb, pull the strap tight, pull the red safety pin, press the button.3,4,10 Everything after the button press is the device's job; everything before it is yours.
-
03
It keeps adjusting
Xmetix states the TAK710 re-adjusts its pressure during movement and evacuation and maintains pressure for up to 6 hours.4,5 Pressure under a strap tourniquet can change within a minute as muscles tense and relax15 — the problem automatic re-adjustment is designed to address.
-
04

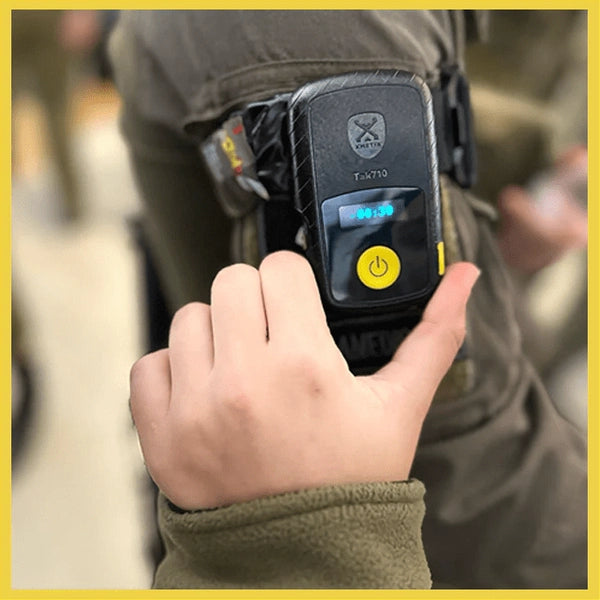

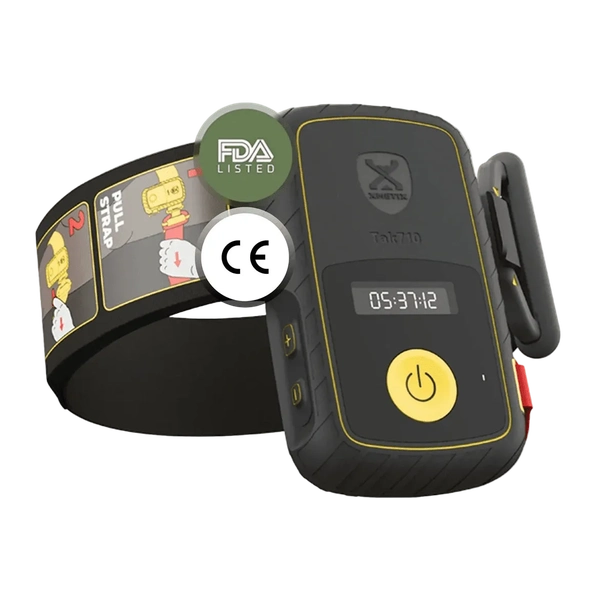

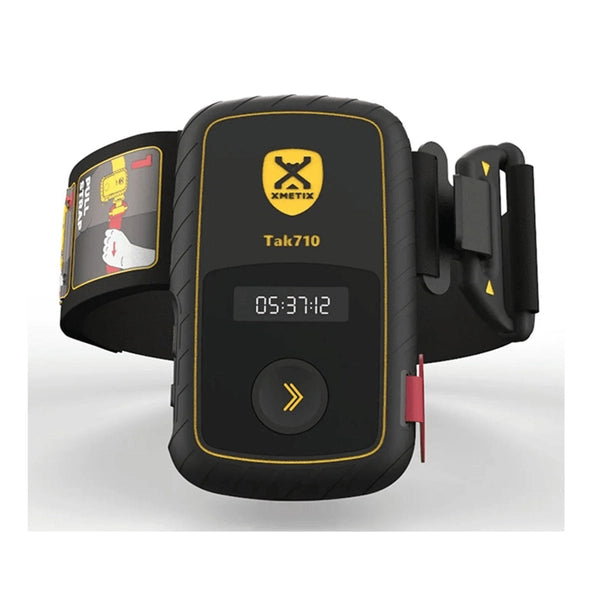

A timer on the unit
The display runs a built-in timer so the receiving team can see how long the tourniquet has been on.5,10 Write the time down anyway: the TCCC Guidelines call for the application time on the tourniquet and on the casualty card.1
-
05
Single activation
Pulling the red safety pin activates the TAK710 and commits it to one use; the black operational unit cannot be reused once activated.4 Never pull the pin to check it, to demonstrate it or to practice.
-
06
The TAK711 is the trainer
Practice happens on the TAK711, a blue, non-functional training unit with the same shape, button interface and feel as the TAK710 and no compression at all.7
-
07

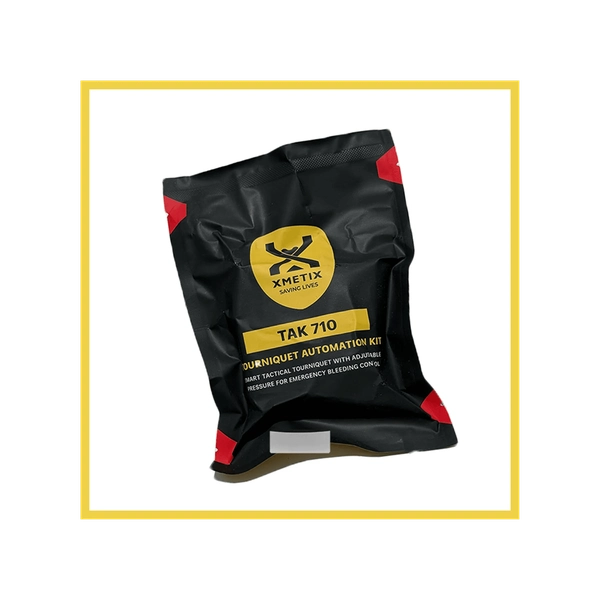

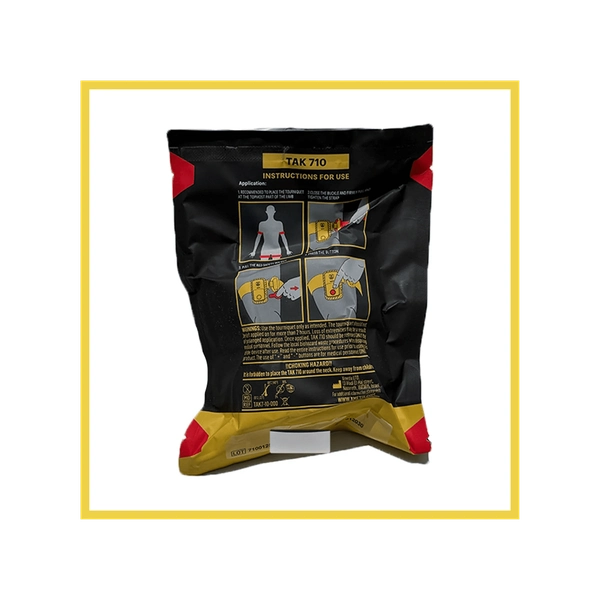

Keep it sealed until it is needed
A strap-and-windlass tourniquet comes out of its packaging and goes into a pouch. The TAK710 is the exception: Xmetix directs that its sealed bag be opened only in a life-threatening emergency.4 Stage the sealed unit where it can be reached fast, and away from children — Xmetix lists it as a choking hazard.
-
08
Built for weather and rough handling
Xmetix states the TAK710 meets IP56 under IEC 60529 for dust and water, MIL-STD-810G for durability and ANSI/AAMI/IEC 60601-1-2 for electromagnetic compatibility, and operates from −22 °F to 140 °F (−30 °C to 60 °C).4,5
-
09
Five years, with a battery inside
Shelf life is 5 years sealed, with refurbishment options at the end of the device's 5-year lifespan; the battery is rated for more than 6 hours of active use.4,5
-
10

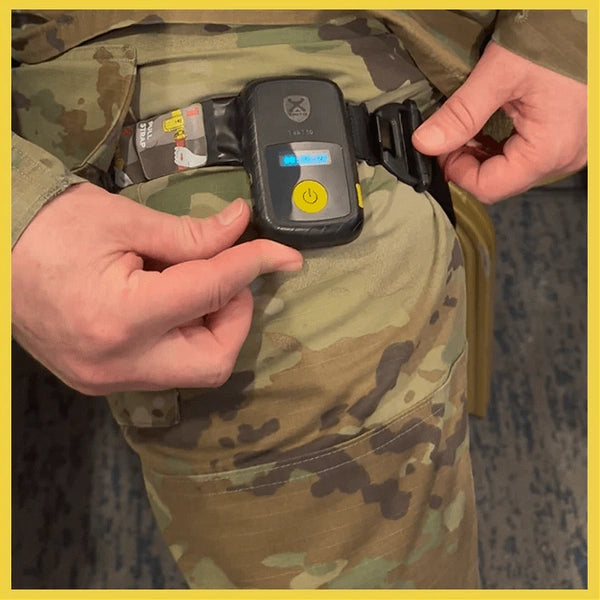

One hand, on yourself
Xmetix designed the TAK710 for one-handed self-use on an injured arm or leg3 — the situation where a windlass is hardest to turn.
-
11
Where it is in service
Lake Macquarie City Council in New South Wales equipped lifeguards at four beaches with the TAK710 for the 2026–27 season; the training physician described the four steps and the timer the hospital team reads.10
-
12
What the evidence covers
A U.S. Army Institute of Surgical Research expert panel agreed that next-generation tourniquets should be usable longer than 2 hours, applied and monitored by anyone, display data, and offer semiautomated function with overrides and automated monitoring with alerts — the territory the TAK710 is built in.8 The performance figures quoted for the TAK710 — time to apply, hours of pressure — are Xmetix's own.
How to apply the TAK710
Xmetix's four steps, inside the placement rules taught in TCCC and TECC.
-

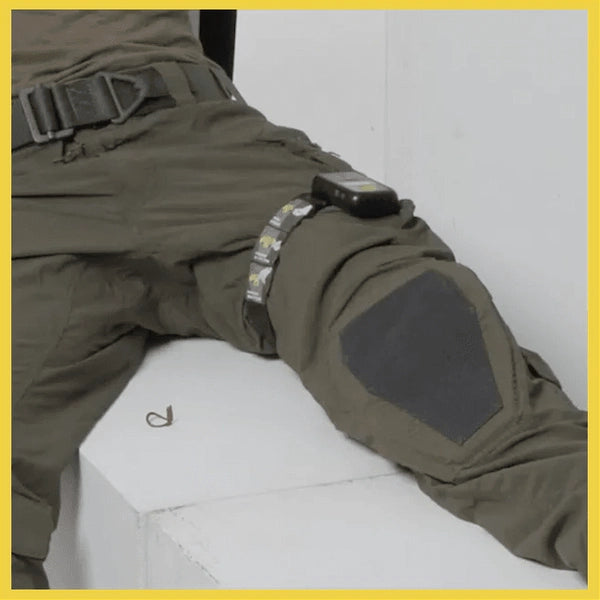

1Choose the placement. Under threat, or when you cannot find the source: high and tight — as high on the limb as possible, over clothing. When it is safe and you can see the wound: bare skin, 2–3 in. above it. Never across or directly over a joint; if that spot lands on the knee or elbow, go above the joint.1
-
2Open the sealed bag. Only now, with a casualty in front of you.4
-
3Put it on and pull the strap tight. Clip the band around the limb and pull the strap snug by hand.3,10
-
4Pull the red safety pin. This activates the unit and commits it to this one use.4
-

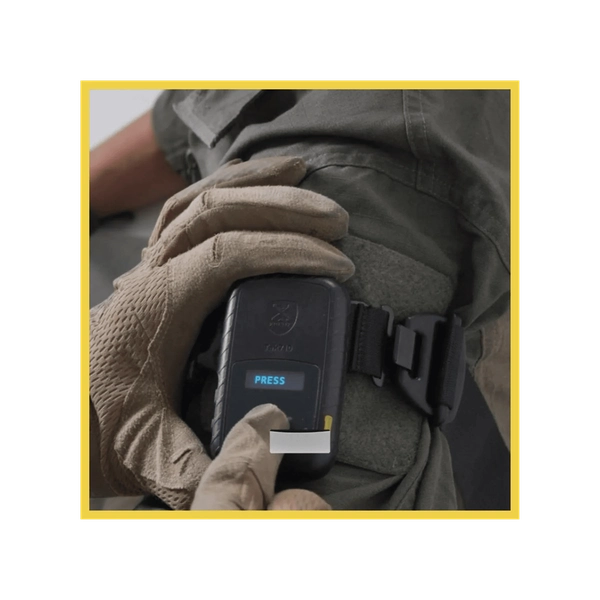

5Press the button. The TAK710 tightens itself to its own pressure and its timer starts running.3,5
-
6Confirm it worked. The bleeding should stop and the distal pulse should be gone. It will hurt. If the bleeding continues, apply a second tourniquet side-by-side with the first.1
-
7Record the time. Write the application time on the casualty card or the casualty's skin as well as relying on the display, and tell the receiving team.1
-
8Leave it on, or convert if you are trained to. For a civilian, and especially after self-aid, leaving it on for the receiving clinicians is good practice. Under TCCC, a tourniquet is converted to a hemostatic or pressure dressing as soon as possible — with every effort to do it within 2 hours — when the casualty is not in shock, the wound can be watched closely and it is not an amputation.1
Where it fits
- Life-threatening bleeding from an arm or leg
- Any traumatic amputation, even one that is barely bleeding
- Public-access cabinets, schools, workplaces, lifeguard stations, vehicles and home kits
- One-handed self-application on an injured arm or leg
- The neck, armpit or groin crease — those wounds are packed and pressed, not tourniqueted; the chest and abdomen are never packed
- Placement across or directly over a joint
- Minor bleeding that direct pressure or a pressure dressing controls
- Checking, demonstrating or practicing — the pin commits the unit; train on the TAK711
The evidence
What the evidence covers — and which device each study actually tested.
| Study | Evidence type | What was studied | What it found |
|---|---|---|---|
| Veazey et al., J Trauma Acute Care Surg 2024 | Expert consensus · Delphi | 34 tourniquet experts convened by the U.S. Army Institute of Surgical Research rated design requirements for next-generation tourniquets | Agreed on use beyond 2 hours, application and monitoring by anyone, data displays, semiautomation with overrides, automated monitoring with alerts |
| Goralnick et al., JAMA Surg 2018 | Simulation · randomized trial | 465 laypeople, simulated scenario, standard tourniquet; the problem an automated device is built to solve | 16% applied it correctly with no training vs 88% after a one-hour course; 54.5% retained the skill at 3–9 months |
| McCarty et al., JAMA Surg 2019 | Manikin · randomized crossover | 102 laypeople trained on the C-A-T® then applied five tourniquet types | 92.2% correct with the trained design vs 11.8–68.6% with others — skills did not fully transfer |
| Walters et al., Prehosp Emerg Care 2005 | Human volunteer | Seven commercial tourniquets self-applied to the thigh (n = 18) and arm (n = 12), Doppler endpoint | Three were 100% effective on both limbs; others failed from too little mechanical advantage, breakage or pain |
None of these studies tested the TAK710: the panel set requirements for future devices, and the other three tested windlass, elastic and other manual tourniquets. They are listed for what they show about the problem an automated tourniquet targets — untrained hands, skill decay and designs that do not reliably occlude.11,12,14 The TAK710's own performance figures come from Xmetix.4,5
How it compares
The TAK710 against the manual windlass tourniquet most kits already carry.
| Xmetix TAK710 | C-A-T® Gen 7 | |
|---|---|---|
| How it tightens | Automatically, at one press of a button — battery-powered | By hand — a windlass rod turned until the bleeding stops |
| Steps after placement | Pull the strap, pull the red safety pin, press the button | Pull the strap, turn the rod, lock it in the clip, strap it down |
| Time record | Built-in timer on the display | Writeable windlass security strap |
| Weight | 6.3 oz (180 g) | 2.7 oz |
| Practice | Separate TAK711 training unit — the live unit cannot be practiced on | Blue C-A-T® Gen 7 trainer |
| evidence-based standard | No | Yes — NSN 6515-01-521-7976 |
TAK710 figures from Xmetix; C-A-T® figures from North American Rescue.4,5,13 Absence from the evidence-based list does not by itself mean a device was tested and failed.2
