SKU: E32113-10

Type: Ventilator & Respiratory

Vendor: Safeguard Medical

HME Filter (Case of 10)

Name: HME Filter (Case of 10)
Brand: Safeguard Medical
SKU: E32113-10
Price: 60.05 USD
Availability: InStock

MARCH PROTOCOL Built around MARCH. Evidence-based trauma care sequence →

$60.05

Ships from Florida HQ Free Shipping $200+ CONUS Free APO/FPO Shipping 30-Day Unopened Returns

Fulfillment Timeline: In stock merchandise ships within 48-72 hours from Florida HQ.

$60.05

PRODUCT INFORMATION

Safeguard Medical · SAVe Accessory

HME Filter (Case of 10)

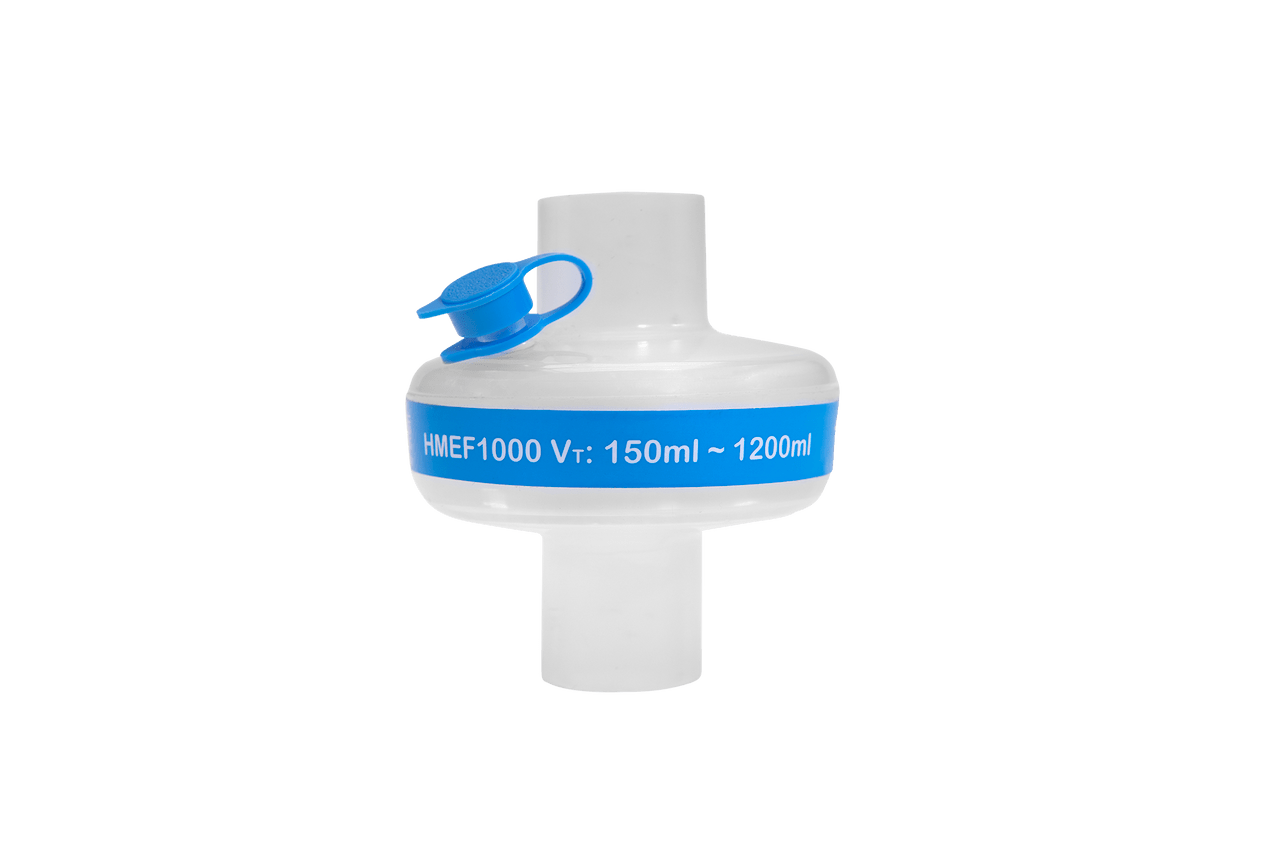

The OEM Heat and Moisture Exchange filter for the SAVe II and SAVe II+ ventilators, SKU E32113-10, supplied in cases of ten for resupply. A passive exchanger: It captures heat and moisture from the patient's exhaled breath and returns it on the next inspiration, standing in for the upper-airway conditioning that a mechanical circuit bypasses. Single-patient use.

SKU E32113-10 · case of 10Passive HME — no power, no waterSAVe II and SAVe II+Single-patient use

One intake port, three mutually exclusive accessories. Whichever one is fitted is a decision about what the patient needs next — and the filter is the answer only when supplemental oxygen is not.

What's Included

Ten filters, and an exclusivity rule that decides when you can fit one. Read both. Tap to open.

VIEW ▾What's in the Package — SKU E32113-10 · ten filters · resupply case

10× HME filter — passive Heat and Moisture Exchanger for the SAVe II and SAVe II+ ventilator, capturing heat and moisture from the exhaled breath and returning it on the next inspiration
1× Resupply case of ten. The case count matches the ten-patient SAVe II+ Starter Bundle resupply cycle, so filters and bundles can be procured in the same quantities.
Each filter is single-patient use. Ten filters means ten patients, not ten uses on one.
No ventilator, no circuit, no mask and no oxygen tubing is included. This is a consumable accessory for a ventilator you already own.
The O₂ reservoir (F20072-10) and the noise attenuator (M41112-5) are separate products. All three connect to the SAME air intake port and are mutually exclusive — only one can be fitted at a time.
The HME filter is fitted only when the O₂ reservoir is NOT connected. If the patient needs supplemental oxygen, the reservoir takes the port and the filter comes off.

▾Specifications

HME Filter (Case of 10) — specifications

Specification	Detail
Manufacturer	Safeguard Medical
SKU	E32113-10
Quantity	Case of 10
Type	Passive HME — Heat and Moisture Exchanger
Function	Captures heat and moisture from the patient's exhaled breath; returns it on the next inspiration. Requires no external heat or humidity source.
Compatible with	SAVe II and SAVe II+ ventilators
Connection	Air intake port
Use condition	Fitted when the O₂ reservoir is NOT connected. The filter and the reservoir cannot be used simultaneously.
Mutually exclusive accessories	O₂ reservoir (F20072-10) · noise attenuator (M41112-5) — all three share the same intake port
Accessory priority	Manufacturer's stated rule: The O₂ reservoir takes priority when the patient requires supplemental oxygen; the HME filter is used during room-air ventilation; the noise attenuator is used only when neither of the other two is needed.
Use type	Single-patient use — not reprocessed. The O₂ reservoir and noise attenuator are reusable; this is not.

The one rule that governs this accessory is the intake-port exclusivity, and it is worth reading twice because it is a patient-safety rule dressed as a hardware note: The HME filter, the O₂ reservoir and the noise attenuator all connect to the same port on the SAVe II family, only one of the three can be fitted, and the manufacturer's order of priority puts supplemental oxygen first. Fitting the filter is therefore a decision that the patient does not currently need the reservoir. All other specifications are as published by Safeguard Medical.

▾Who Carries It

Services and units already operating the SAVe II or SAVe II+ — this filter fits nothing else · Prolonged field care and prolonged casualty care teams running a ventilated patient over hours on room air, where airway drying is a real complication rather than a theoretical one · CASEVAC and MEDEVAC crews whose supplemental oxygen may be depleted or unavailable for part of the transport leg · Logistics and supply staff matching filter resupply to the ten-patient SAVe II+ bundle cycle · Aid stations and field hospitals holding ventilator consumables against a surge.

Mechanical ventilation is a provider-level intervention throughout: Who may initiate it, on which patients, and with what settings is governed by your licensure, your medical direction and your unit protocol. The accessory rule is the practical trap — a crew that fits the filter and then needs to add oxygen must swap the port, not stack the accessories. Brief that before a transport, keep the reservoir and the filter stored together so the swap is one reach.

Genuine Safeguard Medical

Sourced direct from the manufacturer or an authorized master distributor. Ships from MED-TAC International, South Florida, US of A — clinician-founded, veteran-led, SDVOSB-certified.

Built around MARCH. Every kit we sell maps to the MARCH protocol — Massive hemorrhage, Airway, Respiration, Circulation, Hypothermia. Learn the sequence in our complete MARCH guide.

SPECS & MEASUREMENTS

Specifications coming soon. Contact us for detailed product information.

SHIPPING & RETURNS

Domestic & Military Shipping

Free Standard Shipping: Automatically applied at checkout on all orders $200 and above within the 48 contiguous United States (CONUS).

APO/FPO Military Addresses: Unconditionally free standard shipping on every order, with no minimum purchase required.

Order Processing & Tracking

Fulfillment Timeline: In stock merchandise ships within 48-72 hours from Florida HQ.

Automated carrier tracking details are emailed immediately upon shipment dispatch.

30-Day Returns & Medical Safety

Returns: Unused, unopened equipment in original manufacturer packaging is eligible for return within 30 days of delivery.

Bio-Safety Notice: To ensure sterility and patient safety, medical consumables with opened or broken tamper-evident seals cannot be returned.

Return Facility: MED-TAC International Corp., 15757 Pines Blvd, Suite 154, Pembroke Pines, FL 33027.

Export Compliance

North American Rescue (NAR) products and rifle hard armor plates are strictly restricted to US and APO/FPO addresses and cannot be exported internationally.

FREQUENTLY ASKED QUESTIONS

What does an HME filter do during mechanical ventilation?

A Heat and Moisture Exchange (HME) filter passively captures the heat and moisture exhaled by a ventilated patient and returns it to the next inspired breath. This substitutes for the humidification function normally performed by the upper airway, preventing drying of the lower airway mucosa, thickening of secretions, and associated complications that develop when ventilated patients breathe unhumidified gas.

Which Safeguard Medical ventilators is the HME Filter (E32113-10) compatible with?

The HME Filter (SKU E32113-10) is the OEM-specified filter compatible with both the SAVe II and SAVe II+ ventilators by Safeguard Medical. It is not compatible with the SAVE II+ Power Charger charger models from the older SAVe II (M40090, 0.9A) charging platform generation — verify your ventilator model against Safeguard Medical's compatibility guide for accessory selection.

How many HME filters are included in the case?

The HME Filter case (SKU E32113-10) contains 10 individual HME filters. This quantity is matched to the 10-patient configuration of the SAVe II+ Starter Bundle, ensuring a one-to-one filter-to-patient ratio for mass-casualty ventilator deployments without requiring separate HME filter procurement.

Are HME filters single-use or reusable?

HME filters are single-patient use. Each filter should be used for one patient encounter and then discarded. This is why the case of 10 is designed to match the 10-patient resupply cycle — one filter per patient, with the full case covering a complete SAVe II+ Starter Bundle 10-patient cycle.

Can the HME filter be used when supplemental oxygen is being delivered?

No. The HME filter (E32113-10) and the Oxygen Reservoir (F20072-10) both connect to the air intake port of the SAVe II/II+ and are mutually exclusive. When supplemental oxygen is being delivered via the reservoir, the HME filter must be removed. When room-air ventilation is in use and supplemental O2 is not required, the HME filter can be installed on the intake port.

Why is airway humidification important during mechanical ventilation?

Mechanical ventilation bypasses the upper airway — the nose and oropharynx — which normally warm, humidify, and filter inspired air. Without this conditioning, the lower airway receives cool, dry, unfiltered gas with every breath, leading to mucosal drying, impaired mucociliary clearance, secretion retention, atelectasis, and increased risk of ventilator-associated complications. The HME filter passively restores a portion of this conditioning function by recycling heat and moisture from the patient's own expired breath.
