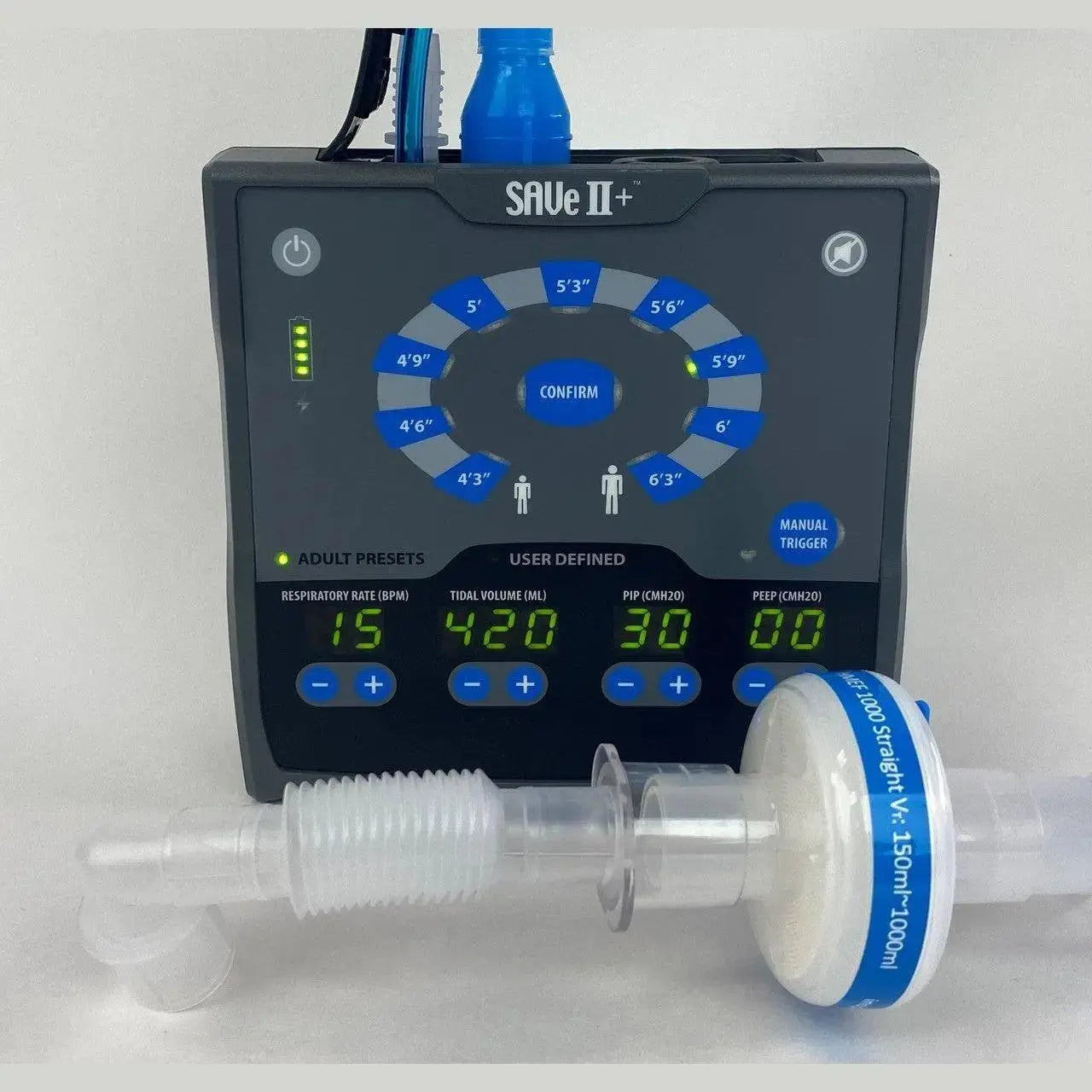

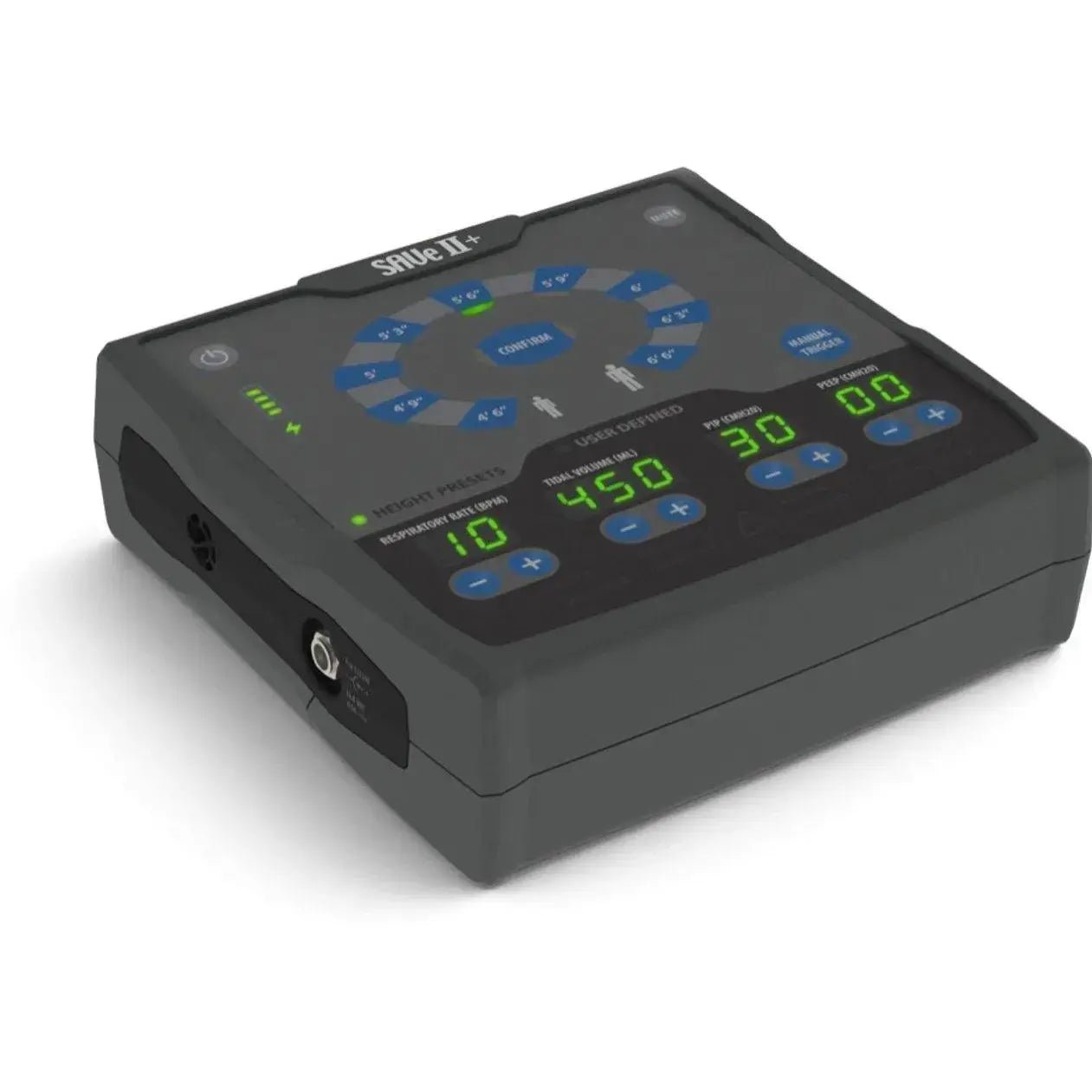

SAVe II+ Simplified Automated Ventilator

$8,280.00 USD
0 have this item in their cart.
Product Description

Compact, economical, and easy-to-use, the SAVe II+ is built for dependable use during a crisis. Medical personnel have relied on AutoMedx products devices for over a decade. The new SAVe II+ delivers up to 50% more flow than the SAVe II and can generate up to 20 cmH2O of PEEP.  The SAVe II+ replaces the SAVe II.

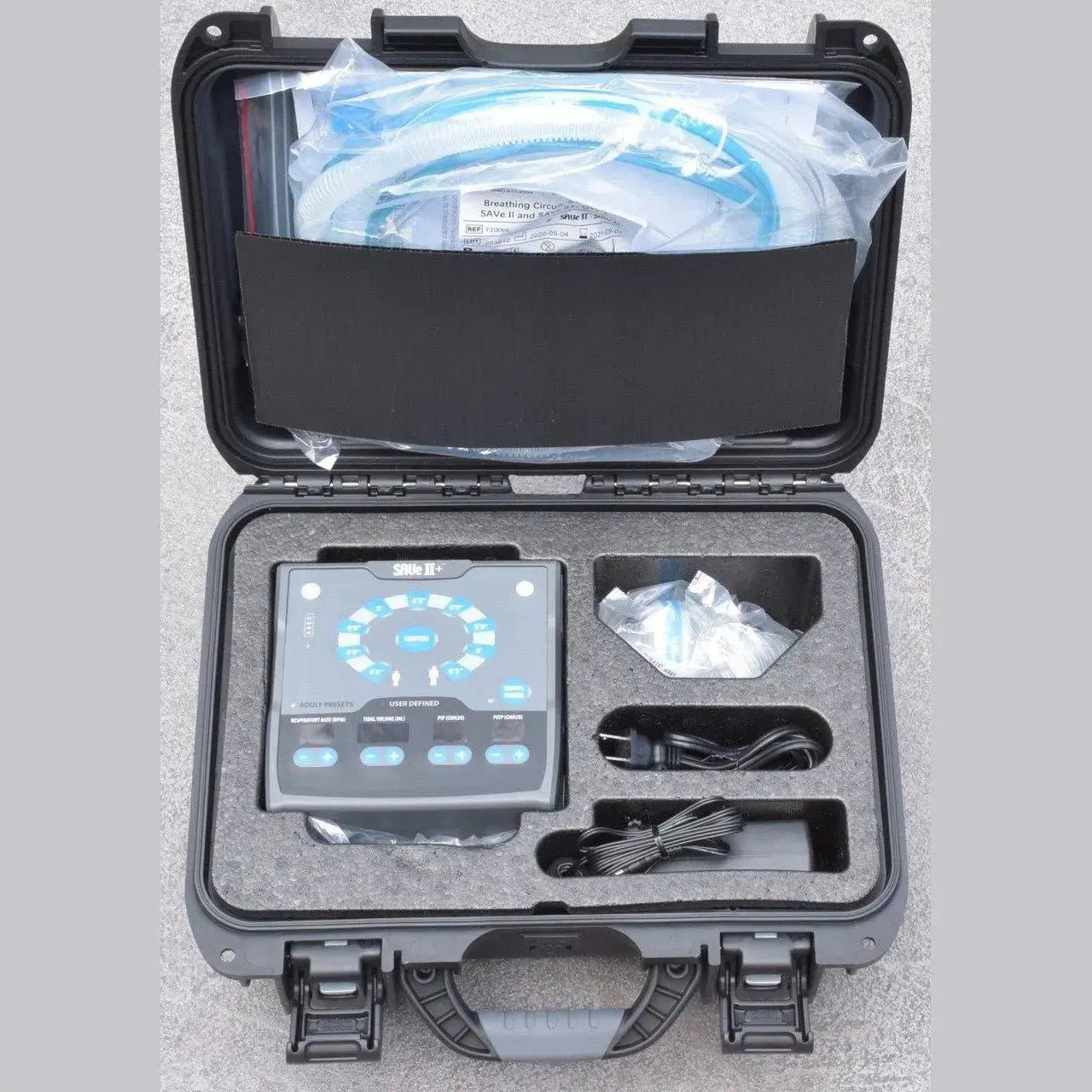

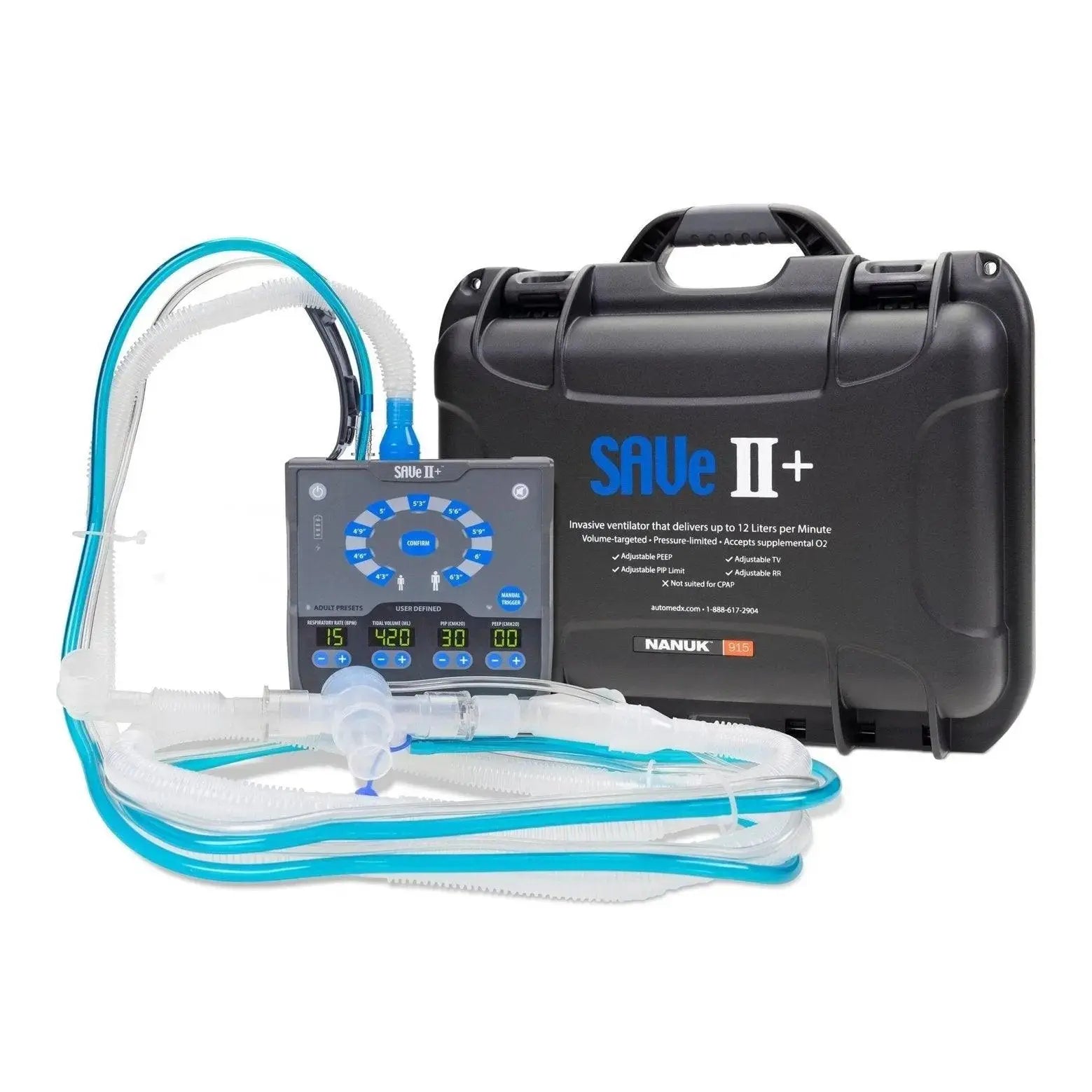

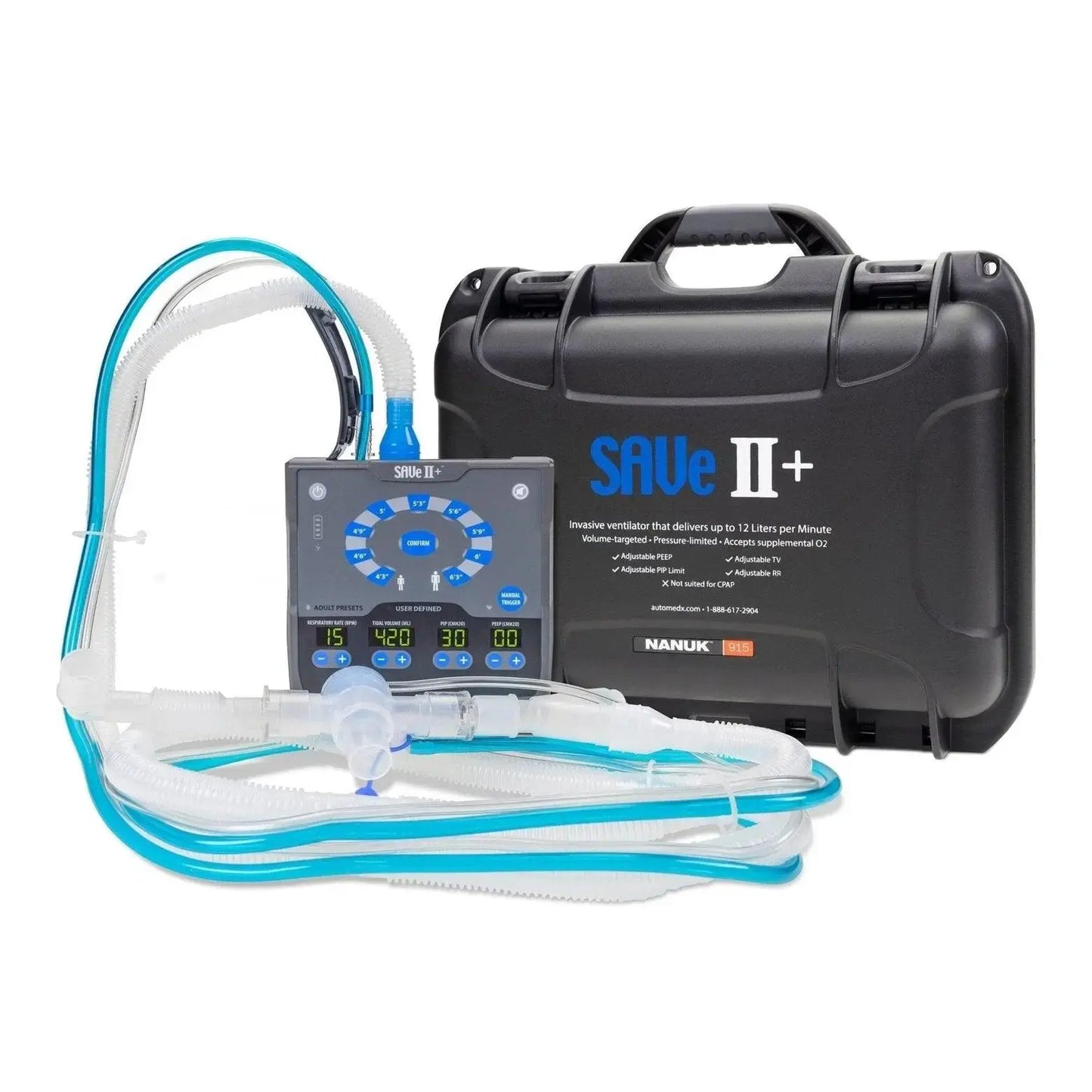

This kit includes the following:

  • 1x SAVe II+ Ventilator
  • 1x Hard Case (water and dust proof), PN F20065
  • 1x Power Charger, PN M42090
  • 1x Patient Circuit, PN F20066 (3 year shelf life)
  • 1x Extendable Oxygen Reservor Tubing, PN F20072
  • 1x Noise Attenuator, PN M41112

SAVe II+ Product & Performance Specifications

General:

Dimensions Ventilator         6.5" x 6.25" x 2.0" (81 cubic inches)
Weight Ventilator                 2.8 lbs. (1.3 kg)
Weight of Full Kit                  9.9 lbs. (4.5 kg)
Operating Mode                   A/C-CMV
Mode Description                 Time cycled, pressure limited, volume targeted.
PRESET Heights                     4' 3" - 6' 3" in 3-inch increments
PRESET Target                       6 ml/kg of IBW or 30 cmH2O of Working Pressure
Flow Rate                               0 - 40 LPM
I:E Ratio                                 1:2 Fixed
Respiratory Rate                     8 - 30 BPM
Tidal Volume                          200 - 800 ml
Peak Inspiratory Pressure       10 - 60 cmH2O
PEEP                                        0 - 20 cmH2O
Inadvertent PEEP                    < 2.0 cmH2O
FiO2 Range:                             21 - 100%
Oxygen Input:                         0 - 12 LPM from Flow Regulated Source
Inspiratory Trigger                  2.0 cmH2O
Inspiratory Resistance            < 6 cmH2O @ 30 LPM
Expiratory Resistance             < 6 cmH2O @ 30 LPM
Dead Space                             < 100 ml
Battery Duration                     8.25-9.25 Hours (see below note)
Power Input                            100 – 240 VAC / 50-60 Hz
Audible Alarms Meets            60601-1-8
Shock & Vibration                  IEC 60068-2-6 and 60068-2-36
Ingress Protection Vent          IP24
Protective Case                      IP67

SETTINGS:

Breath Rate (BPM)                8 – 30
Tidal Volume (ml)                 200 - 800
Pressure Limit (cmH2O)     10 - 60
PEEP (cmH2O)                       0 - 20

MEASUREMENTS:

PIP (cmH2O)                           0 - 60
PEEP (cmH2O)                       0 - 25

FIXED PARAMETERS:

I:E Ratio                                   1:2
Inspiratory Time (Ti)            0.67 - 2.50 seconds
Expiratory Time (Te)             1.3 - 5.0 seconds
Flow Rate (Avg LPM)             4 - 40

Product Life:

Control Unit                           8 years
Breathing Circuit                 3 year shelf life (single use)

Notes:

1. All specifications include a tolerance of ±10% of nominal value unless stated otherwise in the Operator’s
Manual. Test conditions available upon request.
2. Delivered Tidal Volume may be materially affected by very low lung compliance (< 0.01 L/cmH2O)
3. With a fully charged new battery the 5’9” preset will run approximately 8.25 hrs with (2600 mAh battery) or 9.25 hrs with 2800 mAh battery)

Compact, economical, and easy-to-use, the SAVe II+ is built for dependable use during a crisis. Medical personnel have relied on AutoMedx products devices for over a decade. The new SAVe II+ delivers up to 50% more flow than the SAVe II and can generate up to 20 cmH2O of PEEP.  The SAVe II+ replaces the SAVe II.

This kit includes the following:

  • 1x SAVe II+ Ventilator
  • 1x Hard Case (water and dust proof), PN F20065
  • 1x Power Charger, PN M42090
  • 1x Patient Circuit, PN F20066 (3 year shelf life)
  • 1x Extendable Oxygen Reservor Tubing, PN F20072
  • 1x Noise Attenuator, PN M41112

SAVe II+ Product & Performance Specifications

General:

Dimensions Ventilator         6.5" x 6.25" x 2.0" (81 cubic inches)
Weight Ventilator                 2.8 lbs. (1.3 kg)
Weight of Full Kit                  9.9 lbs. (4.5 kg)
Operating Mode                   A/C-CMV
Mode Description                 Time cycled, pressure limited, volume targeted.
PRESET Heights                     4' 3" - 6' 3" in 3-inch increments
PRESET Target                       6 ml/kg of IBW or 30 cmH2O of Working Pressure
Flow Rate                               0 - 40 LPM
I:E Ratio                                 1:2 Fixed
Respiratory Rate                     8 - 30 BPM
Tidal Volume                          200 - 800 ml
Peak Inspiratory Pressure       10 - 60 cmH2O
PEEP                                        0 - 20 cmH2O
Inadvertent PEEP                    < 2.0 cmH2O
FiO2 Range:                             21 - 100%
Oxygen Input:                         0 - 12 LPM from Flow Regulated Source
Inspiratory Trigger                  2.0 cmH2O
Inspiratory Resistance            < 6 cmH2O @ 30 LPM
Expiratory Resistance             < 6 cmH2O @ 30 LPM
Dead Space                             < 100 ml
Battery Duration                     8.25-9.25 Hours (see below note)
Power Input                            100 – 240 VAC / 50-60 Hz
Audible Alarms Meets            60601-1-8
Shock & Vibration                  IEC 60068-2-6 and 60068-2-36
Ingress Protection Vent          IP24
Protective Case                      IP67

SETTINGS:

Breath Rate (BPM)                8 – 30
Tidal Volume (ml)                 200 - 800
Pressure Limit (cmH2O)     10 - 60
PEEP (cmH2O)                       0 - 20

MEASUREMENTS:

PIP (cmH2O)                           0 - 60
PEEP (cmH2O)                       0 - 25

FIXED PARAMETERS:

I:E Ratio                                   1:2
Inspiratory Time (Ti)            0.67 - 2.50 seconds
Expiratory Time (Te)             1.3 - 5.0 seconds
Flow Rate (Avg LPM)             4 - 40

Product Life:

Control Unit                           8 years
Breathing Circuit                 3 year shelf life (single use)

Notes:

1. All specifications include a tolerance of ±10% of nominal value unless stated otherwise in the Operator’s
Manual. Test conditions available upon request.
2. Delivered Tidal Volume may be materially affected by very low lung compliance (< 0.01 L/cmH2O)
3. With a fully charged new battery the 5’9” preset will run approximately 8.25 hrs with (2600 mAh battery) or 9.25 hrs with 2800 mAh battery)
