NAR SPEAR - Dispositivo simplificado de liberación de aire de emergencia para neumotórax

Is the NAR SPEAR device CoTCCC-recommended?

The SPEAR device meets the CoTCCC-recommended specification for needle decompression: a 10-gauge, 3.25-inch-or-longer needle/catheter unit. The 2018 TCCC guideline update added 10-gauge as an authorized needle size for NDC, and the SPEAR's 10 Ga. × 3.75 in. catheter exceeds the minimum length requirement. Units operating under protocols that authorize 10-gauge needle decompression will find the SPEAR fully compliant with CoTCCC-recommended standards.

How does the SPEAR's fenestrated catheter improve success rates?

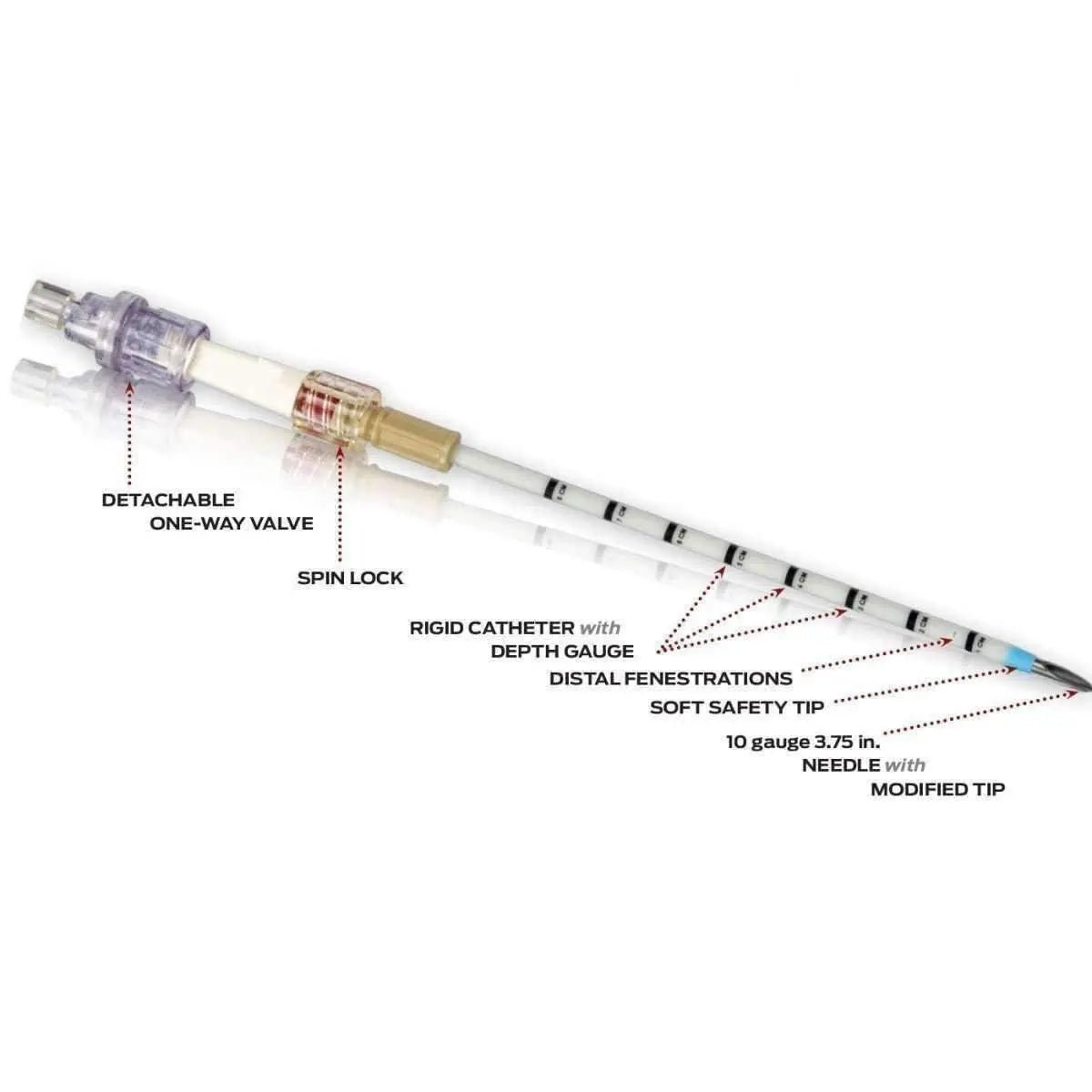

Research on fenestrated catheters shows they are nearly twice as successful as non-fenestrated catheters in maintaining catheter patency and decompression success. The SPEAR features three fenestrations along its catheter length plus an open distal tip — creating four independent pathways for air to escape. This design exponentially reduces the risk of total occlusion from blood, fibrin, or tissue debris, which is a recognized failure mode with conventional single-port catheters.

What is the purpose of the one-way check valve on the SPEAR?

The SPEAR's detachable low-pressure one-way check valve provides two critical functions. First, it creates an audible whistle as air rushes through the valve upon successful pleural entry — confirming decompression in noisy tactical, transport, or mass casualty environments where visual assessment alone is insufficient. Second, it functions as a Heimlich-type valve, allowing air to vent outward while preventing atmospheric air from re-entering the pleural space. Per protocol, the valve can be transferred to the catheter hub after needle removal or removed entirely.

Can the SPEAR be used for lateral decompression?

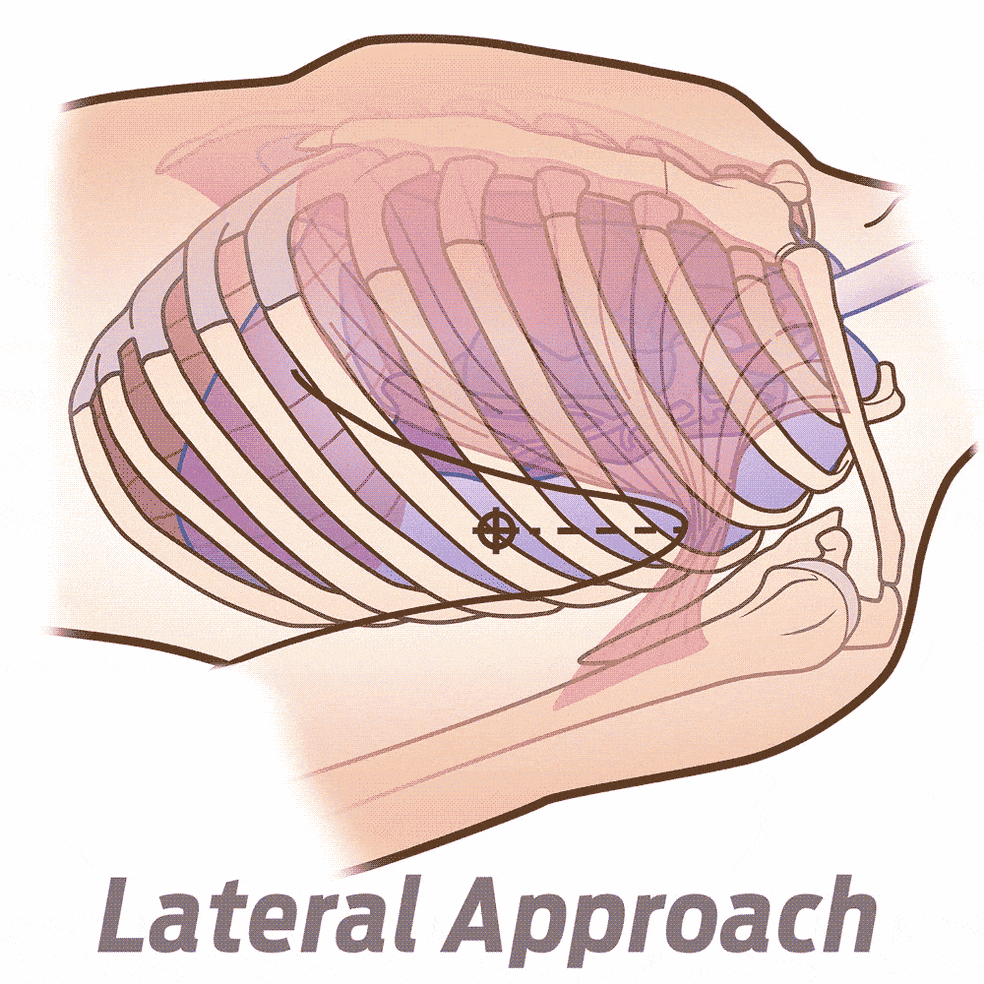

Yes. The SPEAR is specifically designed to support both anterior (2nd ICS-MCL) and lateral (4th–5th ICS-AAL) decompression — the two sites recognized in current TCCC guidelines. Lateral access is particularly valuable when anterior sites are obstructed by body armor, wound dressings, tourniquet straps, or patient positioning. The 3.75-inch catheter length ensures adequate chest wall traversal at both sites in the vast majority of adult patients.

What does the spin-lock feature on the SPEAR prevent?

The spin-lock connection secures the needle to the catheter hub during insertion, preventing premature separation — a known failure mode with conventional needle/catheter assemblies. When the needle and catheter separate prematurely, the unsupported catheter can mistrack or fail to advance correctly into the pleural space. The SPEAR's spin-lock mechanism maintains structural integrity throughout insertion, releasing only when the provider intentionally withdraws the needle after confirmed placement.

How does the SPEAR fenestrated catheter compare to a standard 14-gauge NDC needle?

The SPEAR's 10-gauge, 3.75-inch catheter provides approximately 2.5× the cross-sectional area of a 14-gauge needle and four independent air pathways (three fenestrations plus the open tip) versus one. Research on fenestrated catheters shows approximately twice the patency success rate compared to single-port designs. The spin-lock additionally prevents the premature needle-catheter separation that is a recognized failure mode of standard assemblies.

Can the SPEAR be used for lateral thoracic decompression per current CoTCCC guidelines?

Yes. The SPEAR is specifically designed to support both anterior (2nd ICS-MCL) and lateral (4th–5th ICS-AAL) decompression sites. At 3.75 inches, the catheter length is sufficient for chest-wall traversal at both sites in the vast majority of adult patients, including higher-BMI individuals.

What training is required to carry the SPEAR device?

Needle decompression is restricted to credentialed providers: 68W, IDC, 18D, paramedic, or equivalent with local medical director authorization. A formal TCCC provider course is required; CoTCCC does not authorize Combat Lifesavers for needle decompression.

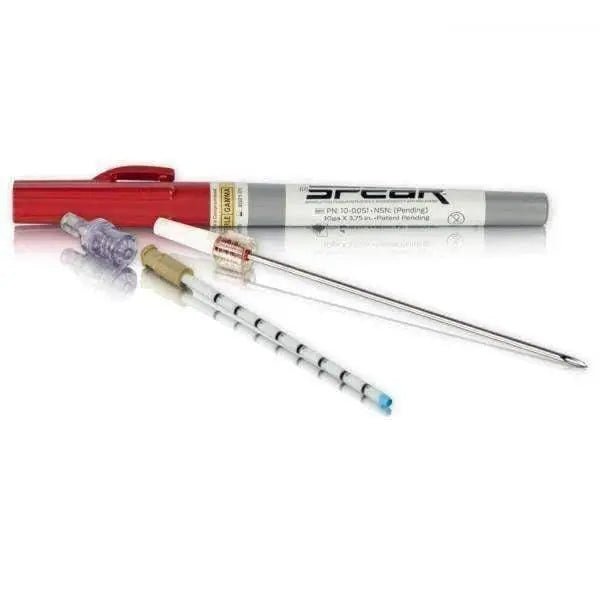

What is the NSN for the NAR SPEAR Device?

The SPEAR Device SKU is 10-0051. For current NSN and DoD/GSA procurement information, contact NAR directly or check the MED-TAC International chest and thoracic supplies collection.

What happens to the SPEAR check valve after the needle is removed?

The SPEAR's one-way check valve is detachable. After needle removal and confirmed catheter placement, the valve can be transferred to the catheter hub to continue functioning as a Heimlich-type valve — allowing air to exit while preventing atmospheric air from re-entering. It can also be removed entirely per provider protocol and medical director guidance.
