JACK Infusion Hook - V2

Name: JACK Infusion Hook - V2
Brand: Dimatex
Price: 19.95 USD
Availability: InStock

Weight: 50 Grams Dimensions:14 Inches unfolded - folds to 6.7 Inches L × 1 Inch W Brand: Dimatex

MARCH PROTOCOL Built around MARCH. Evidence-based trauma care sequence →

Your Price: $19.95

Ships from Florida HQ Free Shipping $200+ CONUS Free APO/FPO Shipping 30-Day Unopened Returns

$19.95

PRODUCT INFORMATION

Dimatex · IV Accessory

JACK Infusion Hook - V2

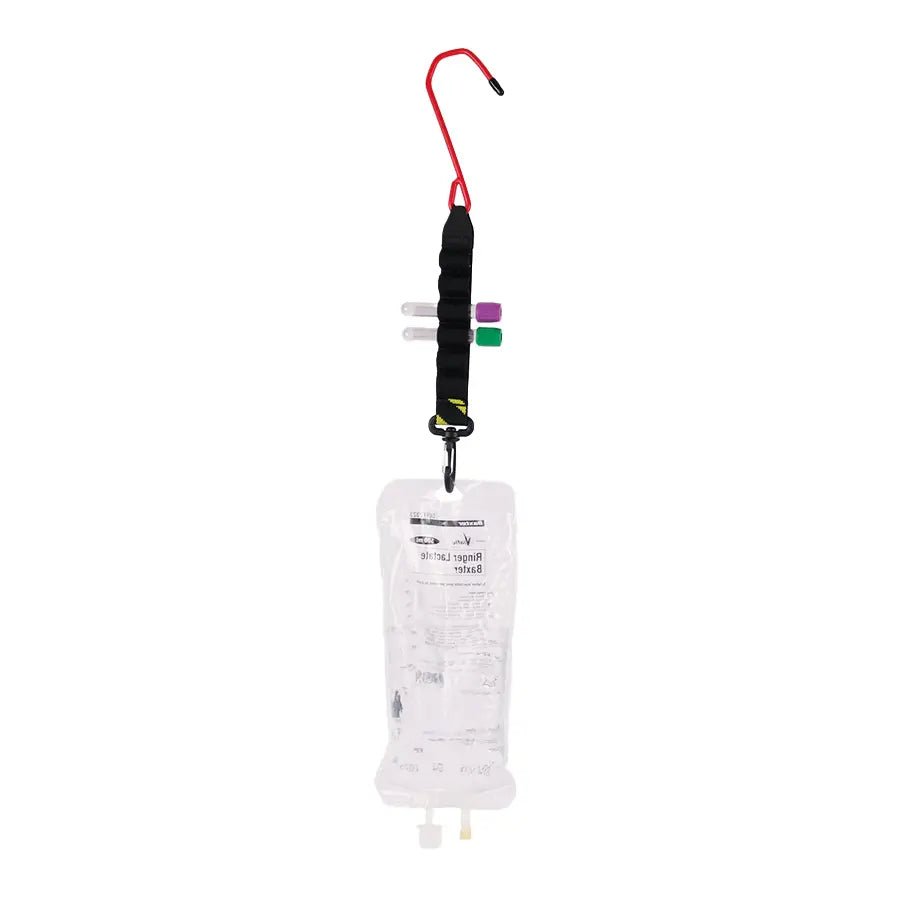

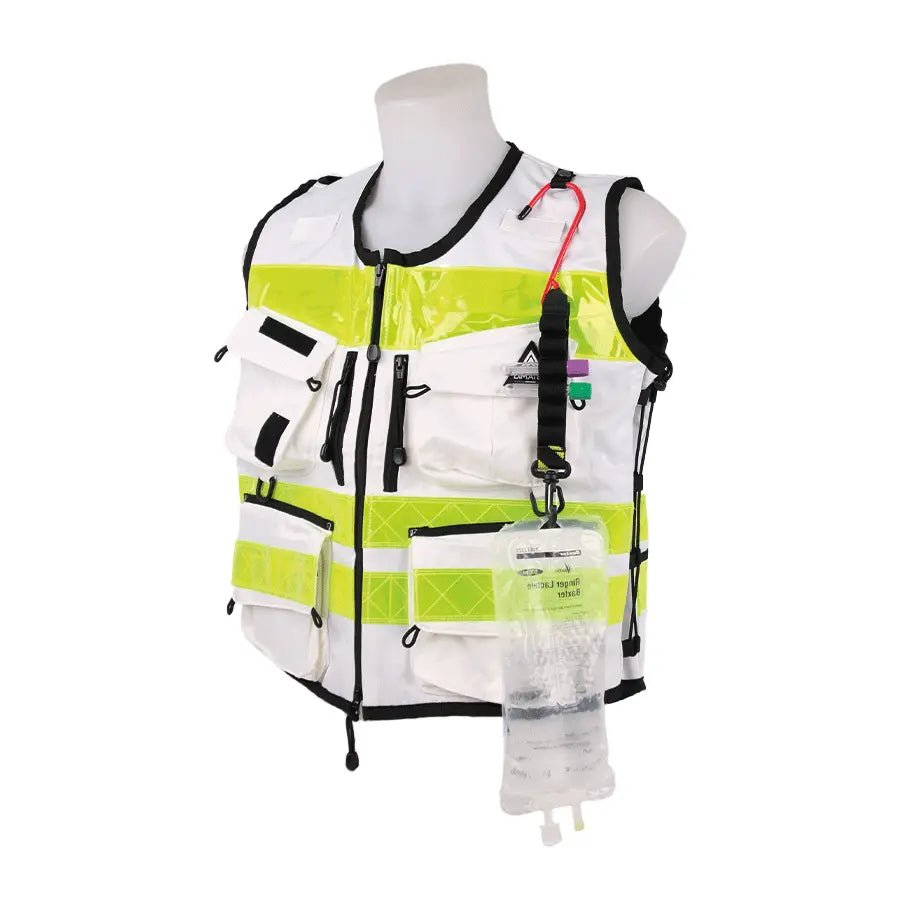

A 50-gram preformed aluminium hook that hangs an IV bag off whatever is available — a medic’s webbing, a MOLLE pouch, a door frame, a vehicle rail, an aircraft overhead. A Hypalon joint absorbs movement, a non-slip rubber tip keeps it seated on smooth surfaces, and a 360-degree swivelling connector lets the bag turn without torquing the line.

50 g (1.76 oz)Preformed aluminiumHypalon joint360-degree swivel

Gravity infusion needs height, and height is exactly what a field environment does not supply. This is 50 grams that turns any hookable edge into an IV pole.

What's Included

One hook assembly. The first accordion is what ships; the second is what it is not. Tap a section.

VIEW ▾What's in the Package — one hook assembly

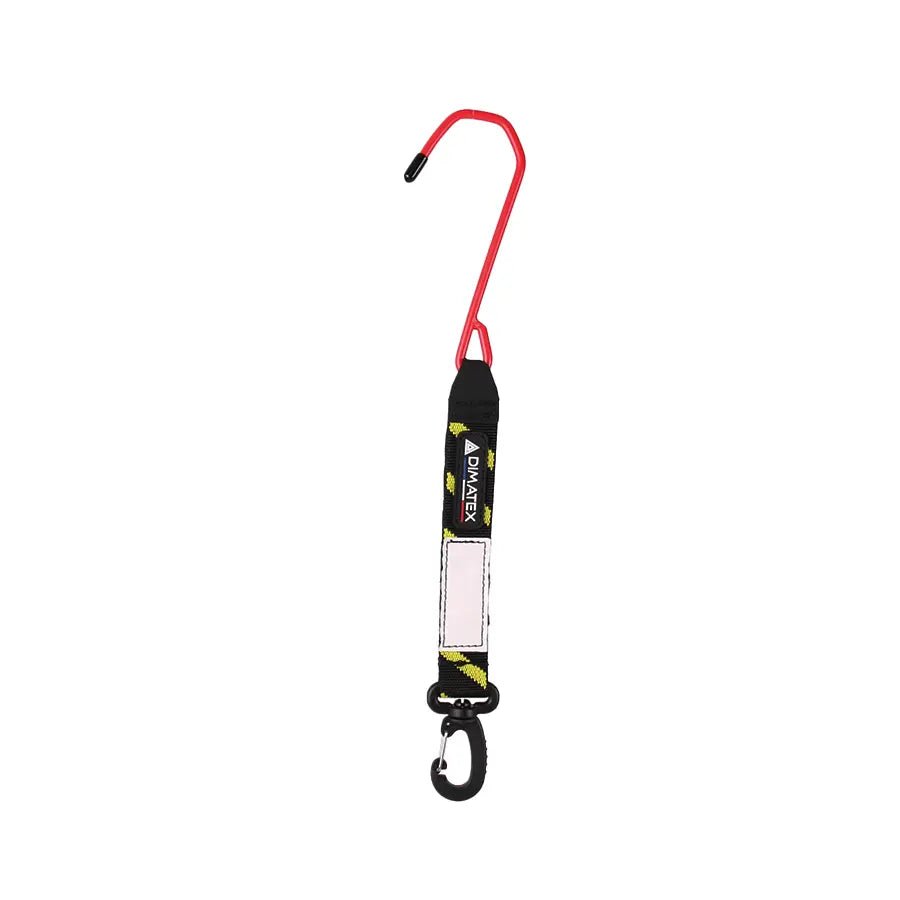

1x JACK Infusion Hook V2 — preformed aluminium hook with a Hypalon synthetic rubber joint and a non-slip rubber tip
Integrated 360-degree swivelling plastic hook with non-return valve, for suspending the IV bag without transmitting rotation into the IV set connection
Integrated high-strength double-walled strap with six attachment rings, which the manufacturer describes as sized for hanging gloves
Total assembly weight 50 g (1.76 oz). Supplied as one assembled unit — no tools, fasteners or spare parts are included.

VIEW ▾What This Is Not — read before ordering

Not sterile, and not a fluid-path component. Nothing in this assembly touches the patient or the fluid; it holds the bag.
Not an IV administration set. No tubing, drip chamber, spike or catheter is supplied — the hook suspends a set you already have.
Not a pressure infuser. Flow here is gravity-fed; a device that pushes fluid is a separate product.
Not an IV pole. It needs something to hook onto — webbing, a rail, a frame, a branch — and provides no standing structure of its own.
Not rated to a published load limit on this page. The manufacturer does not state a maximum bag weight or working load.

▾Specifications

JACK Infusion Hook V2 — specifications

Specification	Detail
Manufacturer	Dimatex (France)
Weight	50 g (1.76 oz)
Hook material	Preformed aluminium
Joint material	Hypalon (chlorosulfonated polyethylene) synthetic rubber
Tip	Non-slip rubber
Connector	360-degree swivelling plastic hook with non-return valve
Strap	High-strength double-walled strap with 6 attachment rings, described by the manufacturer as sized for gloves
Hang points, per the manufacturer	Clothing, MOLLE gear, ambulance interiors, door frames, poles and vehicle rails
Sterility	Non-sterile — an accessory, not a fluid-path component
Use classification	Reusable accessory
Guideline status	Not on the evidence-based standard-device list — an accessory, not a listed device class

Specifications are as published by Dimatex. The manufacturer does not publish a part number, a working load limit, or a temperature range for this item on this page; the Hypalon material properties cited in the legacy copy (resistance to temperature extremes, UV, chemicals and abrasion) are general properties of the material rather than tested figures for this assembly. This is a carriage accessory. Deciding to run an infusion, and how, is a clinical decision made by a trained provider under scope of practice and local protocol.

▾Who Carries It

Tactical EMS and combat medics hanging a bag off their own kit while working in a confined or exposed position - CASEVAC and MEDEVAC crews using aircraft and vehicle overhead rails - Casualty collection points and MCI staging where pole infrastructure does not exist - Wilderness, remote and expedition medicine - Ambulance services wanting a packable backup to the fitted hanger.

This is an accessory, not a clinical capability. Establishing and running an infusion is a trained skill performed within scope of practice and under local protocol; this page describes the hook and states exactly what ships.

Genuine Dimatex

Sourced direct from the manufacturer or an authorized master distributor. Ships from MED-TAC International, Pembroke Pines, FL — clinician-founded, veteran-led, SDVOSB-certified.

Built around MARCH. Every kit we sell maps to the MARCH protocol — Massive hemorrhage, Airway, Respiration, Circulation, Hypothermia. Learn the sequence in our complete MARCH guide.

SPECS & MEASUREMENTS

Specification	Value
Width	1 Inch
Length	14 Inches unfolded - folds to 6.7 Inches
Weight	50 Grams

Built around MARCH. Every medical product and kit aligns with the MARCH protocol — Massive hemorrhage, Airway, Respiration, Circulation, Hypothermia.

SHIPPING & RETURNS

Domestic & Military Shipping

Free Standard Shipping: Automatically applied at checkout on all orders $200 and above within the 48 contiguous United States (CONUS).

APO/FPO Military Addresses: Unconditionally free standard shipping on every order, with no minimum purchase required.

Order Processing & Tracking

Standard Gear: In-stock medical devices, consumables, and tactical packs process within 48 hours.

Stocked Kit Bags: Custom-built kits ship within 7-10 days as they are assembled by hand at our South Florida facility.

Automated carrier tracking details are emailed immediately upon shipment dispatch.

30-Day Returns & Medical Safety

Returns: Unused, unopened equipment in original manufacturer packaging is eligible for return within 30 days of delivery.

Bio-Safety Notice: To ensure sterility and patient safety, medical consumables with opened or broken tamper-evident seals cannot be returned.

Return Facility: MED-TAC International Corp., 15757 Pines Blvd, Suite 154, Pembroke Pines, FL 33027.

Export Compliance

North American Rescue (NAR) products and rifle hard armor plates are strictly restricted to US and APO/FPO addresses and cannot be exported internationally.

FREQUENTLY ASKED QUESTIONS

Can the JACK V2 hook hold a full 1,000 mL IV bag?

Yes. The JACK V2 is constructed from preformed aluminum with a high-strength double-walled Hypalon strap and is rated to support full IV fluid bags, including 500 mL and 1,000 mL volumes. The non-slip rubber tip and Hypalon joint provide stable suspension even during patient movement or vibration in vehicle transport scenarios.

What surfaces can the JACK V2 hook onto?

The JACK V2 can hook onto any surface that accommodates its preformed aluminum profile: MOLLE webbing on chest rigs and plate carriers, uniform belt loops, ambulance overhead rails, vehicle roll bars, door frames, IV poles, medical cots, tree branches, and any tubular or flat surface the hook geometry fits. The non-slip tip prevents sliding on smooth metallic surfaces.

What is the non-return valve on the swiveling connector?

The non-return valve prevents IV line backflow through the connector when the hook rotates or the bag swings during patient movement. This maintains IV line integrity and prevents air introduction into the IV set during positional changes. The 360° swivel allows the bag to orient freely in response to movement without torquing the IV tubing connection at the bag spike port.

Why is Hypalon used for the joint material?

Hypalon (chlorosulfonated polyethylene) is a high-performance synthetic rubber with exceptional resistance to temperature extremes (-40°C to +130°C), UV radiation, ozone, chemicals, and abrasion. For a medical accessory that may be deployed in desert heat, arctic cold, maritime salt air, or chemical environments, Hypalon outperforms natural rubber or standard PVC in maintaining flexibility and structural integrity across the full operational temperature range.

How does the JACK V2 compare to using improvised hanging methods?

Improvised hanging methods (tying IV bags to structures with cord or webbing) risk IV set disconnection, bag rotation causing line kinking, and loss of hang point during patient movement. The JACK V2's non-return valve, non-slip tip, and positive-lock hook geometry provide a designed, reliable solution that maintains IV line integrity under movement. At 50 grams, the weight investment for this reliability is negligible.
