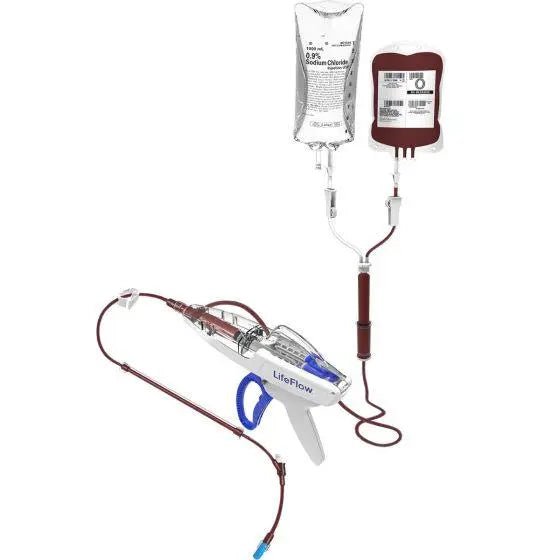

The NAR LifeFlow® PLUS is a hand-operated, rapid blood and fluid infusion device capable of delivering 500 mL of IV fluid or one unit of whole blood in under 2 minutes through a 20-gauge catheter — without batteries, electricity, or pressure pumps. Operating in 10 mL increments per handle compression, it provides complete provider control over infusion volume in a portable, field-ready package weighing under one pound.
Key Specifications
| Specification | Detail |
|---|---|
| Manufacturer | North American Rescue (NAR) |
| Item Number | 30-0287 |
| Dimensions | 12 in. × 7.5 in. × 2.75 in. |
| Weight | 0.95 lb |
| Volume per Compression | 10 mL per handle compression |
| IV Fluid Delivery Rate | 500 mL in < 2 minutes (via 20G IV catheter) |
| Whole Blood Delivery Rate | 1 unit (~450 mL) in approximately 2 minutes |
| Minimum Compatible Catheter | 20-gauge IV catheter |
| Power Source | None — fully manual, hand-operated |
| Validated For | Blood, packed red blood cells, IV fluids |
| Operation | One-hand capable; other hand free for clinical assessment |
Product Overview
Hemorrhagic shock kills by depleting circulating volume faster than the body can compensate. Every minute of sustained hypotension results in progressive organ ischemia — 'time is tissue' in the language of damage control resuscitation. Conventional gravity-fed IV administration delivers fluids at 80–200 mL/hour on a standard administration set — orders of magnitude too slow for a Class III or Class IV hemorrhage casualty requiring 1–2 liters of volume immediately.
The LifeFlow® PLUS was engineered to close this gap without battery power, electronic components, or pressure cuff inflation. Each compression of the ergonomic handle displaces exactly 10 mL of fluid — providing precise, controlled delivery that prevents over-infusion while enabling rates far exceeding gravity flow. At a sustainable compression rate, a provider can deliver 500 mL in under 2 minutes through a standard 20-gauge peripheral IV catheter — a flow rate of approximately 250 mL/min.

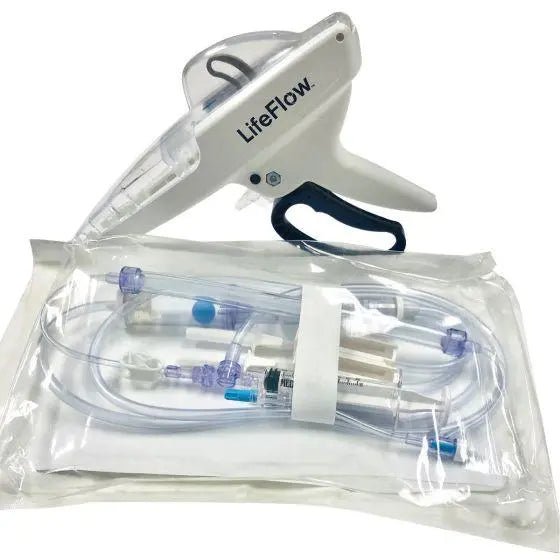

Critical design features make the LifeFlow® PLUS practical in austere environments. One-hand operation allows the provider to simultaneously monitor the IV site, perform patient assessment, or manage other interventions. The handle and tubing are packaged together for rapid setup without a confusing assembly sequence. A bacterial contamination shield protects the syringe mechanism from environmental exposure between uses. The device is compatible with both IV fluids (normal saline, lactated Ringer's) and blood products including whole blood and packed RBCs — the viscosity of blood does not prevent operation through a 20g catheter.
QinFlow has validated LifeFlow PLUS compatibility with the Warrior EXTREME blood and fluid warmer — the system handles the rapid bolus flows generated by hand pump infusion without compromising warming performance. This integration enables warmed whole blood delivery at field rates, addressing both volume deficit and hypothermia simultaneously.
LifeFlow PLUS vs. Gravity Drip: Flow Rate Comparison
| Specification | Detail |
|---|---|
| Standard gravity drip (wide open) | 80–200 mL/hour (1.3–3.3 mL/min) |
| Pressure bag (300 mmHg) | 80–120 mL/min depending on catheter size |
| LifeFlow® PLUS (hand-operated) | ~250 mL/min via 20g catheter — 500 mL in < 2 minutes |
| Clinical advantage | LifeFlow PLUS delivers a 1L resuscitation bolus in ~4 minutes with full volume control |
Operational Applications
- Far-forward damage control resuscitation: Class III–IV hemorrhagic shock requiring immediate volume restoration
- CASEVAC: Continued fluid delivery during patient transport without power source
- Hypovolemic code: Emergency volume loading in cardiac arrest secondary to blood loss
- Blood product delivery: Rapid whole blood or LTOWB administration without compromising 20g IV access
- Pediatric use: Precise 10 mL increments support controlled pediatric volume resuscitation
See also: IV/IO & Blood Transfusion Supplies
See also: IV Infusion Starter Set (Mojo)
See also: QinFlow Warrior EXTREME Blood & Fluid Warmer
All products sourced from the actual brand manufacturer or authorized master distributors. CoTCCC recommendation status verified where applicable. Ships from MED-TAC International, Pembroke Pines, FL — clinician-founded, veteran-led, SDVOSB-certified.
When to Deploy the LifeFlow Plus Fluid Infuser
- Hemorrhagic shock resuscitation at point of injury: Deliver 500 mL of crystalloid or 1 unit of whole blood in under 2 minutes — critical during the platinum ten minutes when hypotension drives irreversible organ injury.
- Far-forward blood product administration (LTOWB/TACWASH): LifeFlow PLUS handles whole blood and packed red blood cells, enabling far-forward resuscitation consistent with TCCC's Circulation phase priorities.
- Austere environment and MEDEVAC transport: One-hand operation frees the provider to manage airway, monitor IV site, or communicate with receiving facilities — essential when personnel are operating alone in degraded environments.
- Mass-casualty incidents (MCI) with multiple casualties in shock: Rapid infusion reduces the time per patient, allowing a single medic or provider to cycle through multiple casualties in the critical window.
- TCCC/TECC-trained medic resuscitation protocols: LifeFlow PLUS integrates directly into damage-control resuscitation (DCR) protocols taught at TCCC and TECC courses as a hands-on rapid-infusion tool.
- Hospital-to-field continuity: LifeFlow PLUS moves from the point of injury through transport to definitive care — same device, no handoff complexity.
Clinical note: Each handle compression delivers 10 mL in a controlled bolus — the operator maintains full volume awareness throughout the infusion. For patients in Class III–IV hemorrhagic shock, initiate LifeFlow PLUS resuscitation concurrent with hemorrhage control, not after.
How the LifeFlow Plus Fluid Infuser Compares
LifeFlow PLUS vs. pressure bags: Pressure bags require two hands, a pressure gauge, and consistent bag management. LifeFlow PLUS is one-handed, requires no accessory hardware, and delivers fluid faster with full operator control over infusion rate.
LifeFlow PLUS vs. gravity IV: Standard gravity infusion cannot overcome catheter resistance at rates sufficient to restore intravascular volume in patients with severe shock. LifeFlow PLUS overcomes catheter resistance in 10 mL increments, achieving sub-2-minute 500 mL delivery.
LifeFlow PLUS vs. mechanical infusion pumps: Pumps require power, setup time, and are not rated for austere environments. LifeFlow PLUS is fully manual — no batteries, no electronics, no failure modes from power or connectivity.
LifeFlow PLUS vs. IO rapid infusion: IO access enables rapid infusion in patients without peripheral IV access; LifeFlow PLUS works with as small as a 20G IV catheter and can be used across both peripheral IV and IO pathways depending on provider setup. See IV/IO devices at tactical-medicine.com for complementary tools.
Government procurement: LifeFlow PLUS (NSN: 6515-01-703-0004, ECAT: SPE2DE-23-D-A008) is DLA-stocked and available through DAPA and GSA schedules. Manufacturer: 410 Medical.
LifeFlow Plus Fluid Infuser — FAQ
Q: Is the LifeFlow PLUS CoTCCC-recommended?
A: LifeFlow PLUS is a commercially available rapid infusion device widely used in TCCC and TECC training curricula. CoTCCC recommendations are issued for specific drug and device categories; verify current TCCC guidelines for rapid-infusion device guidance as applied to your mission profile.
Q: Does the LifeFlow PLUS require any special training to operate?
A: The device is designed for intuitive one-hand operation and is included in TCCC/TECC provider curricula. Handle-and-tubing are packaged together for rapid setup. Providers should practice the assembly and priming sequence during sustainment training to maintain proficiency.
Q: What IV catheter size is required for the LifeFlow PLUS?
A: LifeFlow PLUS is compatible with catheters as small as 20G. Larger-bore catheters (18G or 16G) will achieve higher flow rates. The syringe mechanism overcomes resistance even at 20G, making it usable in patients where only small-gauge access is possible.
Q: What is the NSN and procurement information for the LifeFlow PLUS?
A: NSN: 6515-01-703-0004. ECAT: SPE2DE-23-D-A008. Unit of issue: case (5 each). CAGE Code: 71UG3. DAPA: SP020018H0066. Available through DLA, GSA, and North American Rescue's ECAT contract. Contact MED-TAC International for agency and unit pricing.
Q: When should the LifeFlow PLUS replacement tubing set be used?
A: After four or more units of blood, flow rate through the original tubing may begin to decline due to clot buildup in the tubing. The LifeFlow PLUS Replacement Tubing Set (NAR SKU: 75-0024) allows providers to swap tubing and continue using the same infuser handle at full flow rates for continued resuscitation.
