Pocket BVM Tactical

Name: Pocket BVM Tactical
Brand: MicroBVM Systems LTD.
SKU: PBVM-T
Price: 74.95 USD
Availability: InStock

(750+ verified reviews storewide)

Weight: 450 g (15.9 oz) — resuscitator, mask, and case Size: Case: 134 mm × 63 mm (5.3 in. diameter × 2.5 in. high). Deployed: 217 mm × 121 mm (8.5 in. long × 4.7 in. diameter). Brand: MicroBVM Systems LTD.

Your Price: $74.95

Ships from Florida HQ Free Shipping $200+ CONUS Free APO/FPO Shipping 30-Day Unopened Returns

$74.95

PRODUCT INFORMATION

MicroBVM Systems · Collapsible Adult Resuscitator

Pocket BVM Tactical

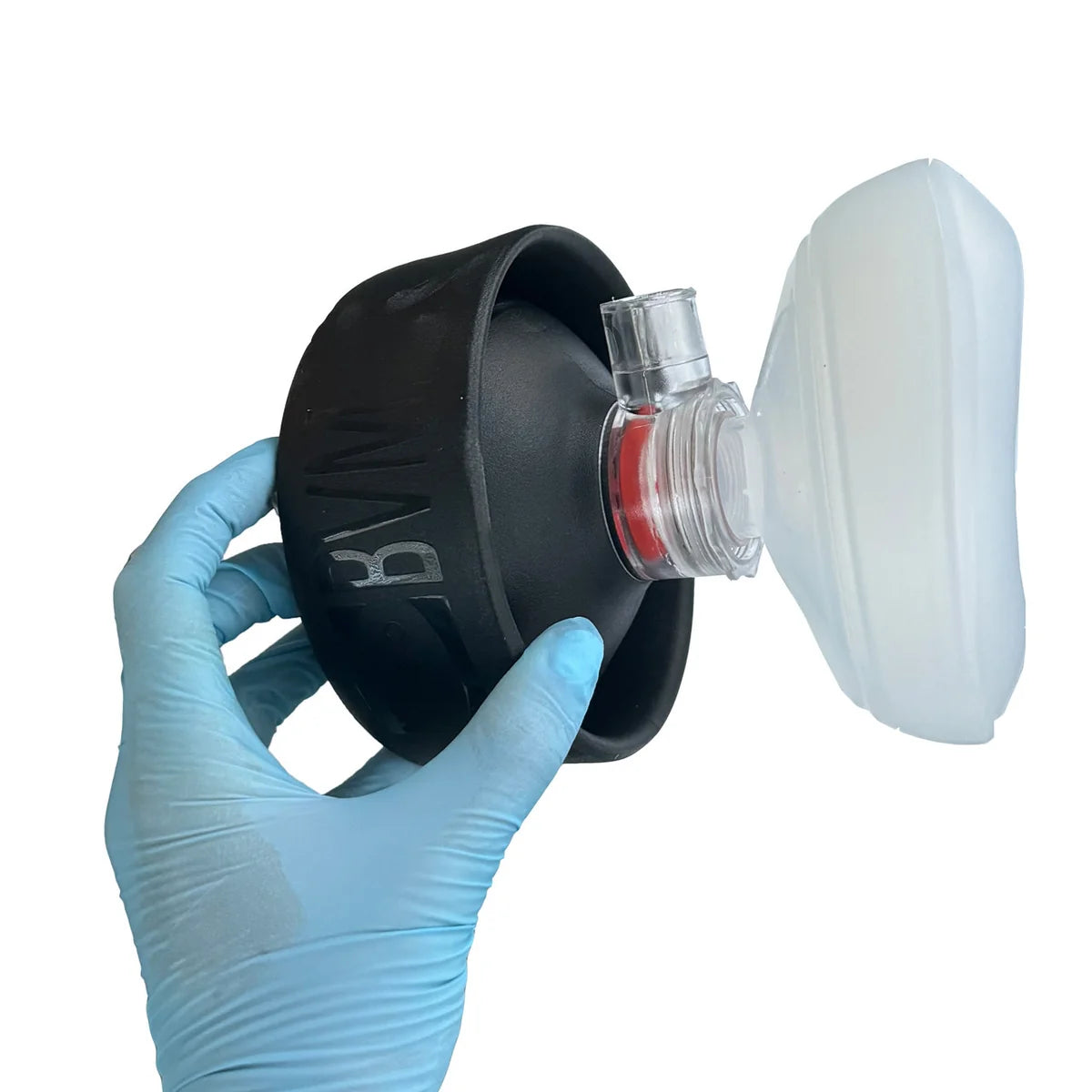

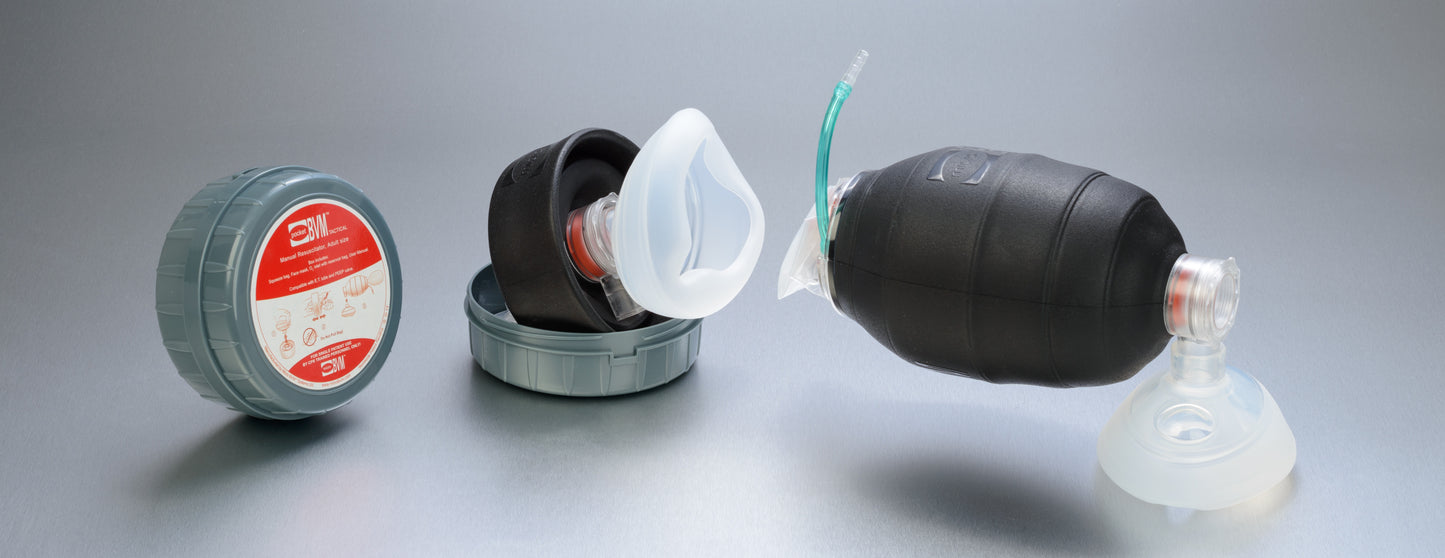

The black-bag configuration of the Micro BVM collapsible resuscitator: a full 1,600 mL adult bag-valve-mask with transparent mask, patient valve and 2,600 mL oxygen reservoir, collapsed into a rigid twist-top case 134 mm across. The resuscitator body is moulded in non-reflective black; the mask is deliberately left clear.

1,600 mL adult bag134 × 63 mm case450 g totalAdult over 40 kg

A provider bagging a patient is stationary, hands occupied, and lit for the whole intervention — and ventilation is measured in minutes. The black bag removes that variable at no clinical cost.

What's Included

One packed case, not a kit. The manufacturer publishes the case contents item by item — tap to read them.

VIEW ▾What's in the Case — five components, packed

1× Resuscitator bag — black, non-reflective, 1,600 mL
1× Transparent adult face mask — left clear on purpose, so vomit, blood and condensation stay visible
1× Patient valve

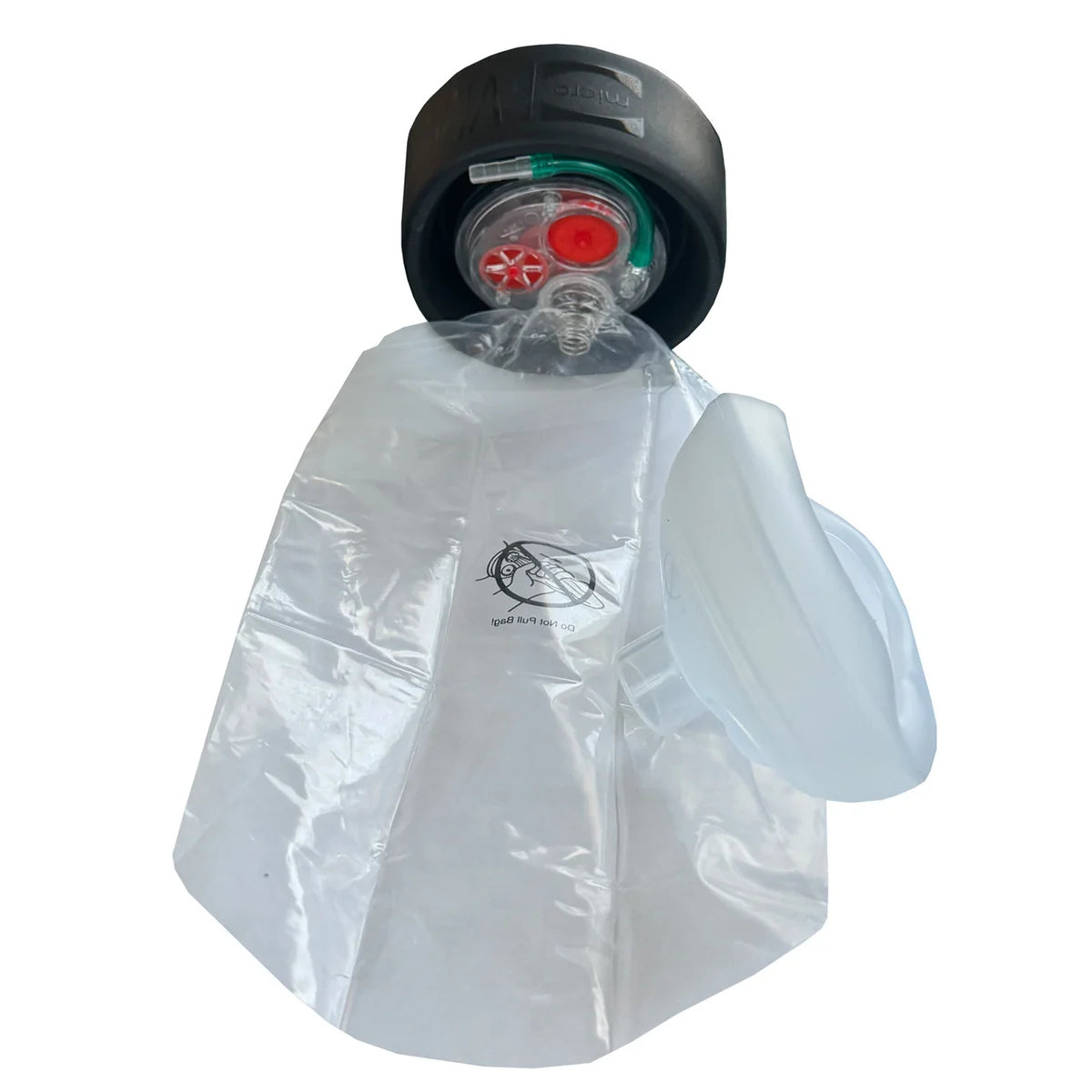

1× Oxygen reservoir bag, 2,600 mL

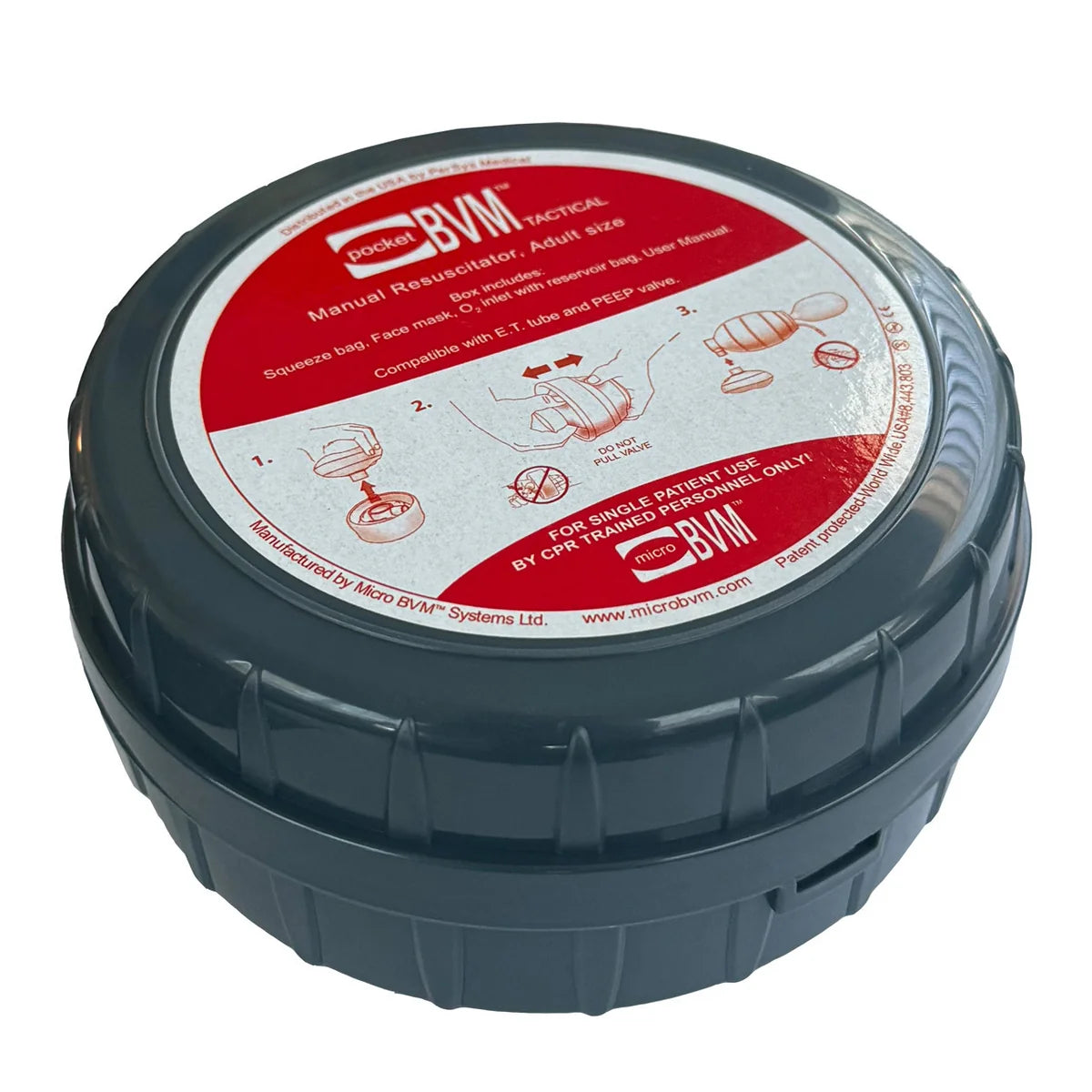

1× Rigid twist-top carry case, 134 mm diameter × 63 mm high
No oxygen supply line is included in this configuration — the Pocket BVM with O₂ Tubing packs a 2 m line in an identically sized case. No PEEP valve, adjunct airway or instruction card is listed as shipping with this configuration.

▾Specifications

Pocket BVM Tactical — specifications

Specification	Detail
Manufacturer	MicroBVM Systems LTD. (Micro BVM)
Manufacturer P/N	MBVM002TAC / PBVM-T
NSN	None assigned — commercial-purchase item. The standard Pocket BVM (6515-01-590-8909) and the O₂ Tubing configuration (6515-01-593-4841, NATO 3590A) carry assigned NSNs.
Patient population	Adult — the manufacturer rates the device for body mass over 40 kg (88 lb). It is not a pediatric BVM.
Resuscitator bag volume	1,600 mL — the capacity of the bag, not a delivered volume
Delivered stroke volume	500–600 mL on a one-handed compression, per the manufacturer
Oxygen reservoir volume	2,600 mL — a reservoir, not a delivered volume
Delivered FiO₂	55% at 2 L/min rising to 100% at 8 L/min, per manufacturer testing
Bag colour	Black, non-reflective
Mask	Transparent
Case dimensions	134 mm diameter × 63 mm high (5.3 in. × 2.5 in.)
Deployed dimensions	217 mm long × 121 mm diameter (8.5 in. × 4.7 in.)
Component mass	Resuscitator 273 g · case 90 g · mask 87 g · total 450 g (15.9 oz)
Shipping weight	16 oz
Dead space	Under 6 mL
Inspiratory resistance	-4.5 cm H₂O
Expiratory resistance	3.4 cm H₂O
Patient connector	22 mm male outside / 15 mm female inside (ANSI/ISO)
Expiratory connector	30 mm male — accepts standard PEEP valves
Gas inlet connection	15 mm length × 6 mm O.D.
Operating temperature	-18 °C to +50 °C (0 °F to +122 °F)
Standard	EN ISO 10651-4:2002
Reuse	Single-patient use; may be refolded into the case for training repetitions, but a device used on a patient should not be returned to service
Oxygen supply line	Not included — see the O₂ Tubing configuration
Country of origin	Israel
CoTCCC status	None. CoTCCC does not publish brand-specific recommendations for bag-valve-mask resuscitators as it does for tourniquets and hemostatic dressings; any vendor calling a BVM "TCCC approved" is overstating. What is verifiable here is the ISO standard and the NSNs held by the other two configurations.

Three numbers get confused on every collapsible BVM listing, so keep them separate: 1,600 mL is bag capacity, 500–600 mL is what reaches the patient on a one-handed compression, and 2,600 mL is the oxygen reservoir. Ventilate to chest rise, not to bag capacity. Every figure on this page is the manufacturer's published specification for this device.

▾Who Carries It

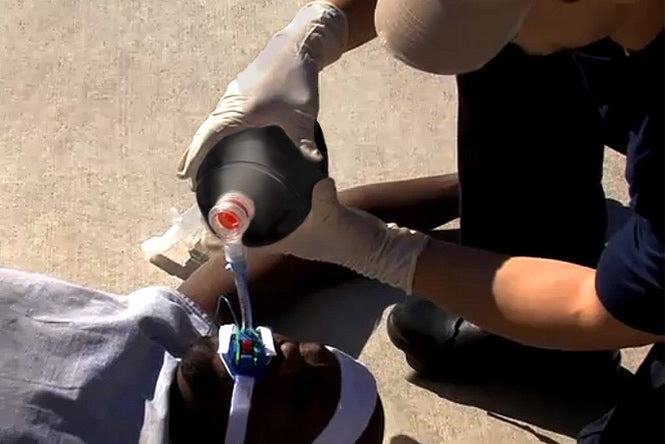

SWAT and TEMS carrying real ventilation capability on a plate carrier or duty belt in a colour that does not mark the treatment position · Night-vision operations, where a translucent bag is a bright moving object under IR illumination · Military and SOF medics whose mission profile already demands light discipline · Fire, EMS and rural SAR after dark, where headlamp glare off a clear bag is a working problem before it is a tactical one.

Positive-pressure ventilation works only through a patent airway, and an adjunct is usually what makes the bag work. Bag-valve-mask ventilation is a trained skill performed within your scope of practice and local protocol. The device is rated for adults over 40 kg by the manufacturer; stock a pediatric-sized bag separately if your response profile includes children.

Genuine MicroBVM Systems LTD.

Sourced direct from the manufacturer or an authorized master distributor. Ships from MED-TAC International, Pembroke Pines, FL — clinician-founded, veteran-led, SDVOSB-certified.

SPECS & MEASUREMENTS

Specification	Value
Weight	450 g (15.9 oz) — resuscitator, mask, and case
Dimensions	Case: 134 mm × 63 mm (5.3 in. diameter × 2.5 in. high). Deployed: 217 mm × 121 mm (8.5 in. long × 4.7 in. diameter).

SHIPPING & RETURNS

Domestic & Military Shipping

Free Standard Shipping: Automatically applied at checkout on all orders $200 and above within the 48 contiguous United States (CONUS).

APO/FPO Military Addresses: Unconditionally free standard shipping on every order, with no minimum purchase required.

Order Processing & Tracking

Standard Gear: In-stock medical devices, consumables, and tactical packs process within 48 hours.

Stocked Kit Bags: Custom-built kits ship within 7-10 days as they are assembled by hand at our South Florida facility.

Automated carrier tracking details are emailed immediately upon shipment dispatch.

30-Day Returns & Medical Safety

Returns: Unused, unopened equipment in original manufacturer packaging is eligible for return within 30 days of delivery.

Bio-Safety Notice: To ensure sterility and patient safety, medical consumables with opened or broken tamper-evident seals cannot be returned.

Return Facility: MED-TAC International Corp., 15757 Pines Blvd, Suite 154, Pembroke Pines, FL 33027.

Export Compliance

North American Rescue (NAR) products and rifle hard armor plates are strictly restricted to US and APO/FPO addresses and cannot be exported internationally.

FREQUENTLY ASKED QUESTIONS

Does the black bag change ventilation performance?

No. The material change is pigment only. Bag volume, delivered stroke volume, dead space, resistance values, and connector standards are identical to the standard Pocket BVM.

Why is the face mask still clear?

Because you need to see through it. Vomit, blood, and condensation on the mask are early indicators during mask ventilation, and an opaque mask would hide all three. Signature reduction is applied to the bag, where it has operational benefit and no clinical cost.

Does it include oxygen tubing?

No. This configuration ships with the 2,600 mL reservoir bag but without a supply line. If you need the line packed in the same case, use the Pocket BVM with O2 Tubing, which includes a 2 m (6 ft 6 in.) line in an identically sized case.

Is 1,600 mL the volume delivered to the patient?

No. 1,600 mL is the capacity of the resuscitator bag. Delivered stroke volume with a one-handed compression is 500-600 mL, which is the adult tidal volume range targeted by current resuscitation guidance. The 2,600 mL figure is the oxygen reservoir bag, not a delivered volume.

Can it be reused?

No. It is designed and labeled by the manufacturer for single-patient use. It can be refolded into the case for training repetitions, but a device used on a patient should not be returned to service.

Will it take a PEEP valve?

Yes. The 30 mm male expiratory connector accepts standard PEEP valves. The patient connector is 22 mm male outside / 15 mm female inside, per ANSI/ISO.
