Tactical Mechanical Tourniquet (TMT™) w/ Rigid Holster SET
The CoTCCC-recommended TMT™ limb tourniquet paired with a custom-molded Kydex® rigid holster — a protected, one-handed-access tourniquet system for belt, plate carrier, or MOLLE carriage.
The Tactical Mechanical Tourniquet (TMT™) w/ Rigid Holster SET by Safeguard Medical bundles the CoTCCC-recommended TMT™ tourniquet with a custom Kydex® rigid holster and Malice Clip attachments. The 2″-wide co-poly resin acetyl band delivers consistent arterial occlusion across a 5.75″ to 38″ limb-circumference range; the rigid holster provides positive, one-handed extraction and mounts to belts, plate carriers, and MOLLE platforms. Available with a Black or Orange tourniquet and a Black, Olive Drab, Coyote Tan, or Multicam holster. NSN 6515-01-656-6191.
Key Specifications
| Manufacturer | Safeguard Medical (joint venture including Combat Medical) |
| SKU (Primary) | CMS-TMT (Black/Black); additional color combinations available |
| NSN | 6515-01-656-6191 (TMT) |
| Combined Weight | ~5 oz packaged (TMT 3.5 oz + holster 3.2 oz) |

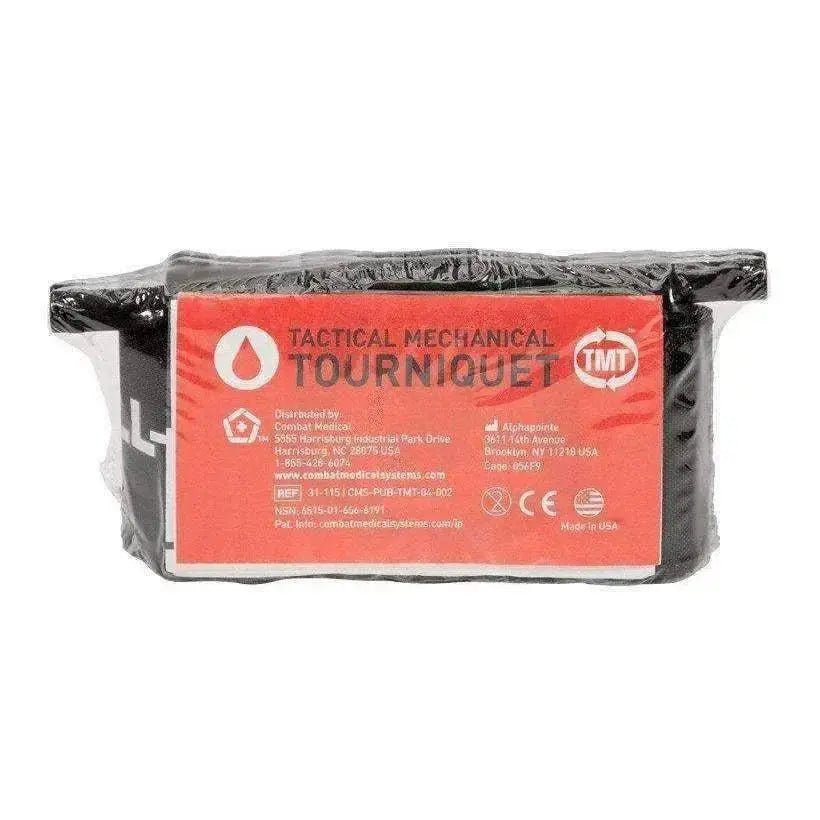

| TMT Dimensions | 4.5″ H × 2.5″ W × 1.85″ D (packaged) | 38.7″ × 2.25″ (open) |
| Holster Dimensions | 3.4″ L × 3.5″ W × 2″ D (Kydex housing) |
| TMT Band Width | 2″ (wider than the 1.5″ C-A-T / SOF band — distributes occlusion pressure over more tissue surface area) |
| Limb Circumference Range | 5.75″ minimum to 38″ maximum (single device); two TMTs can be linked for larger circumferences |
| TMT Material | Co-poly resin acetyl with IR/UV protection |
| Holster Material | Kydex® (custom-molded) with Malice Clip attachments |

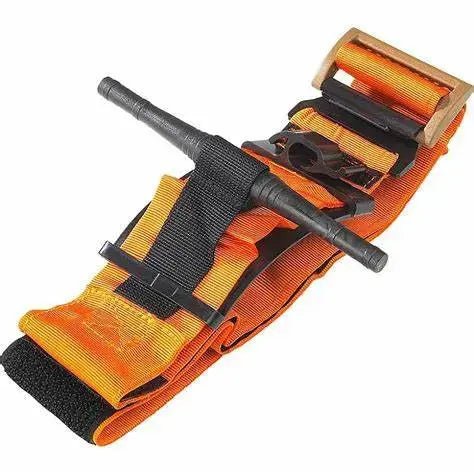

| Tourniquet Colors | Black | Orange |

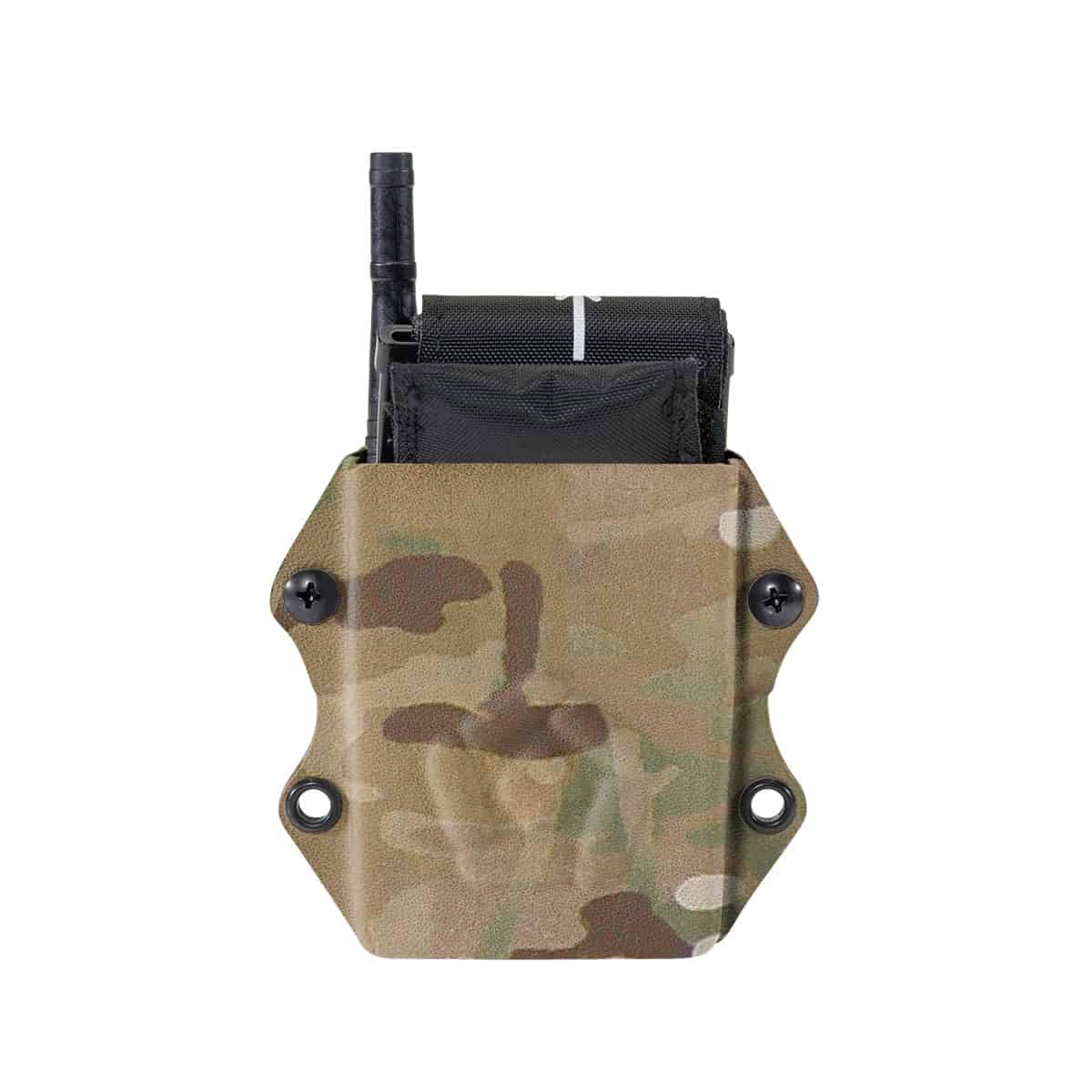

| Holster Colors | Black | Olive Drab | Coyote Tan | Multicam |
| Compliance | CoTCCC-recommended | CE-marked |
| Shelf Life | Indefinite (controlled environment); up to 10 years (operational storage) |
| TQ-RAM™ Compatible | Yes — dual slots on the TMT base plate accept the TQ-RAM™ point-pressure device (sold separately) |
What It Is
The Tactical Mechanical Tourniquet™ (TMT™) is a CoTCCC-recommended limb tourniquet developed by Combat Medical, now part of Safeguard Medical. Its 2″-wide band sets it apart from the 1.5″ standard of the C-A-T Gen 7 and SOF® Tourniquet — a meaningful design difference. A wider band distributes occlusion pressure over a larger tissue surface area, which can reduce localized compression intensity during prolonged application and improve seating on proximal-thigh wounds where a narrow band may purchase less effectively.

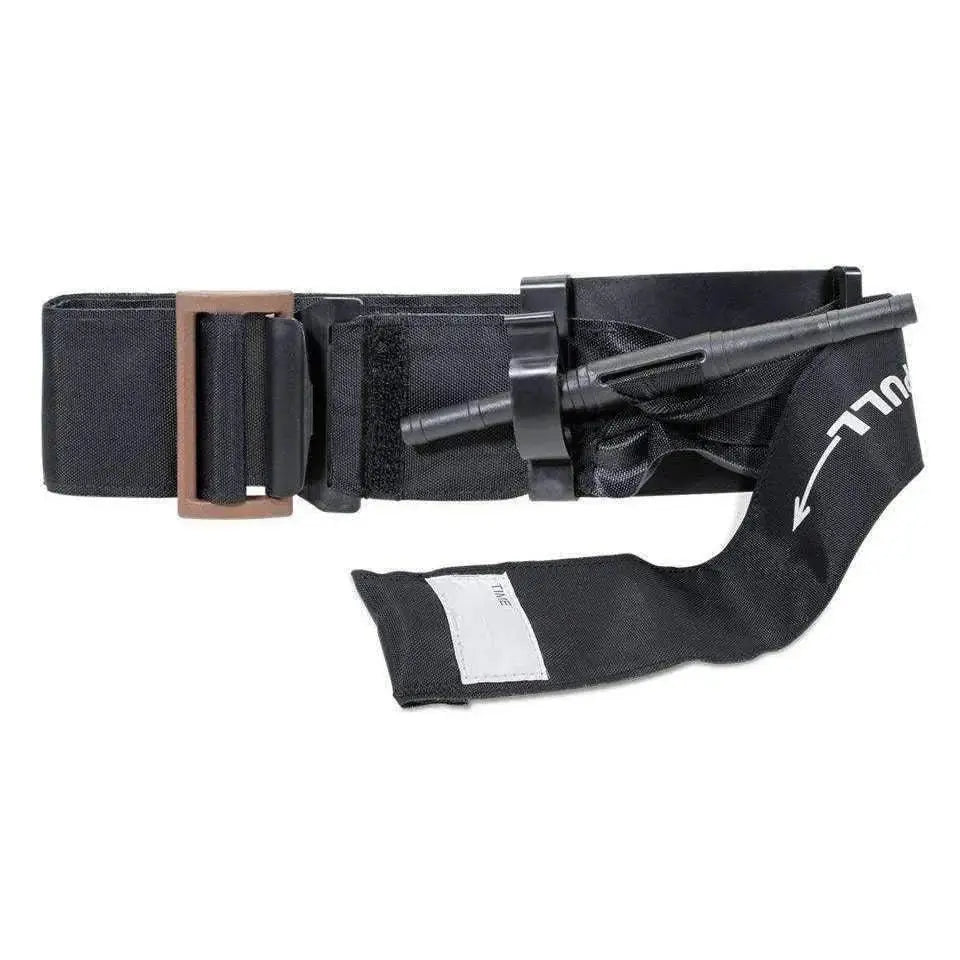

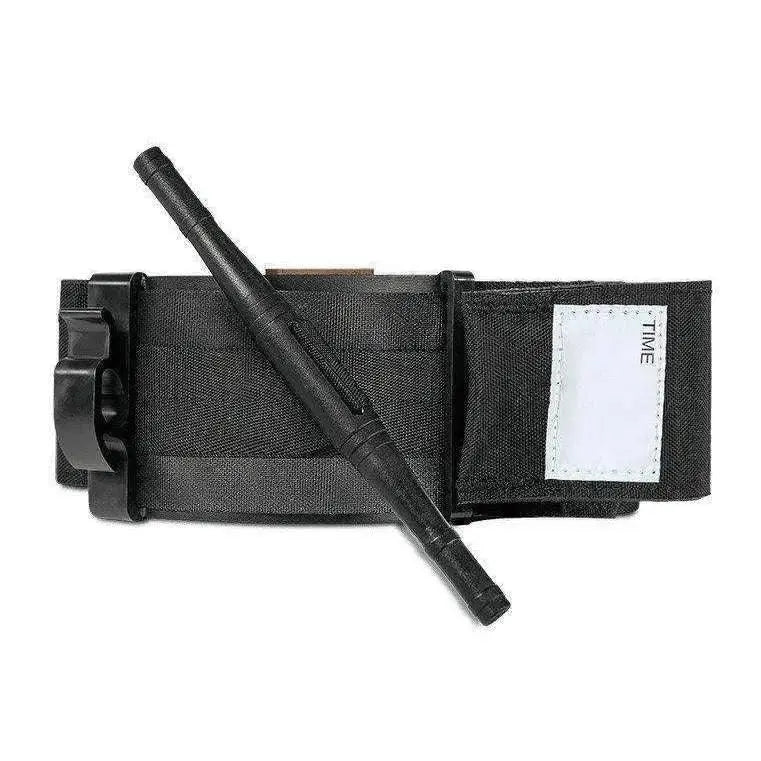

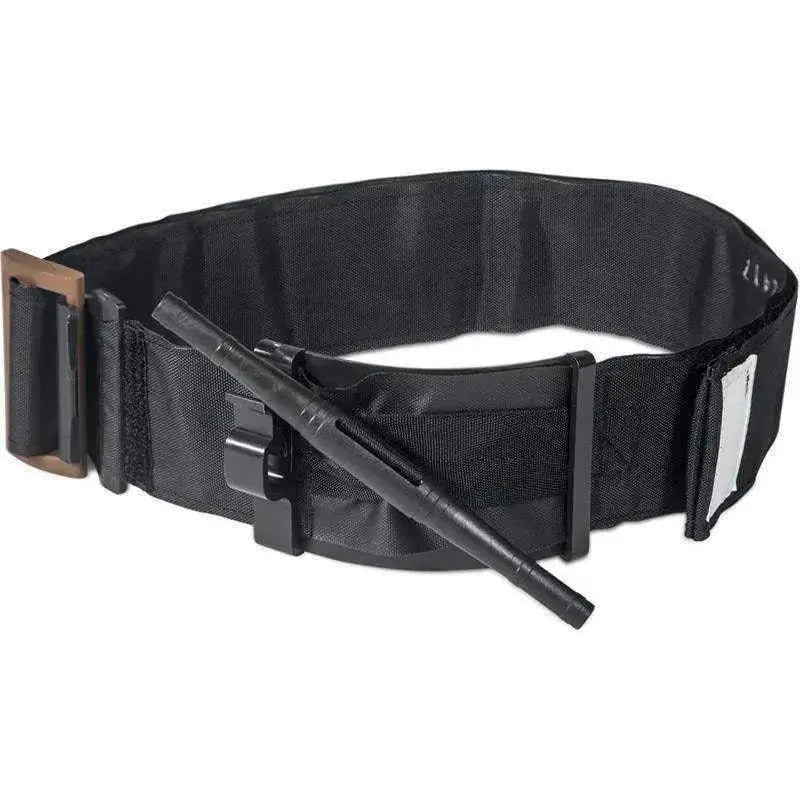

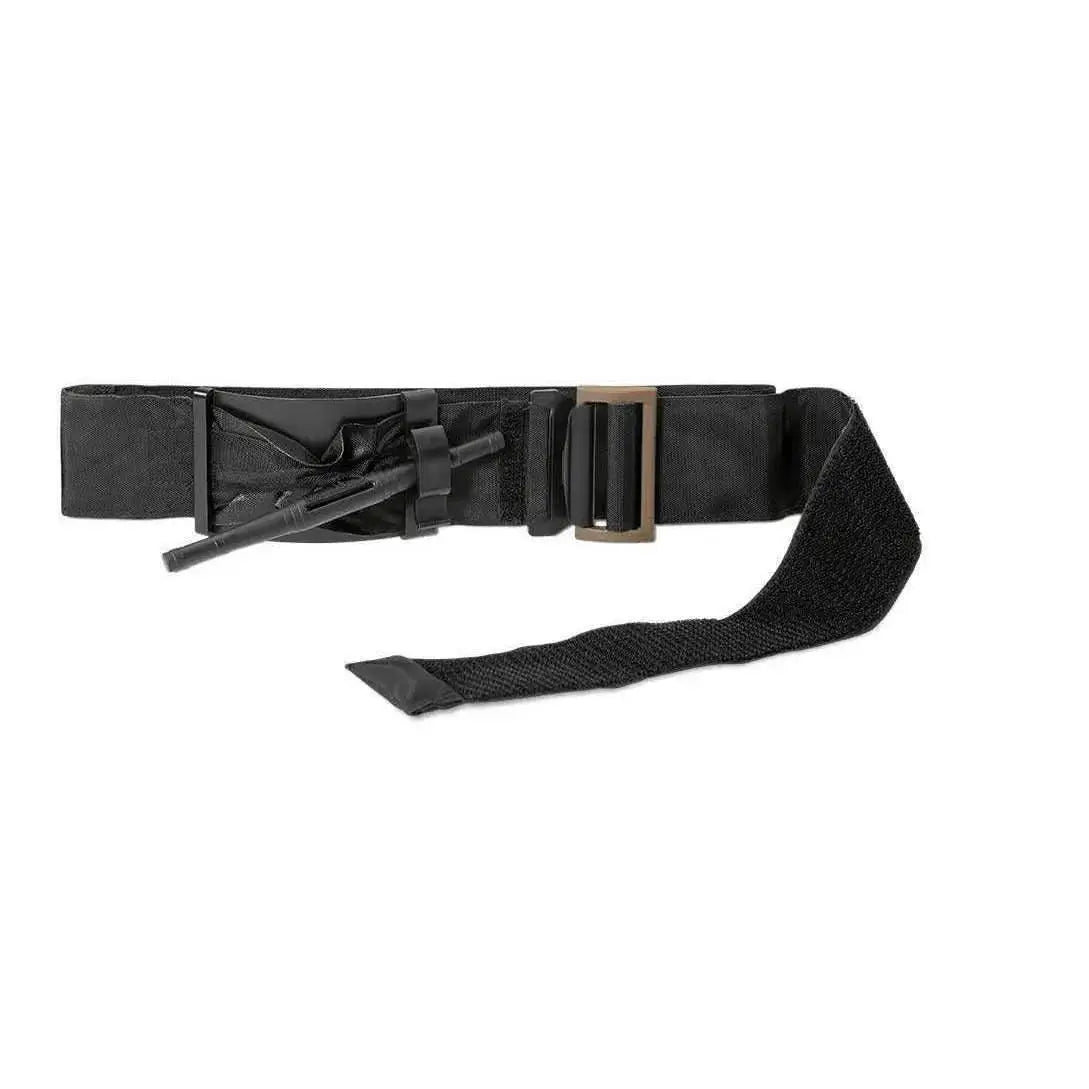

The TMT™ combines a hook-and-loop closure familiar from the C-A-T with a quick-detach windlass retention clip, giving a hybrid application sequence that trains cleanly for users coming from either C-A-T or SOF® platforms. Its base plate carries two dedicated slots for the TQ-RAM™ point-pressure device (sold separately), allowing the TMT™ to serve as an anchoring compression platform for wound-packing maintenance in proximal injuries — an extended capability that is unique to the TMT™ among CoTCCC-recommended limb tourniquets.

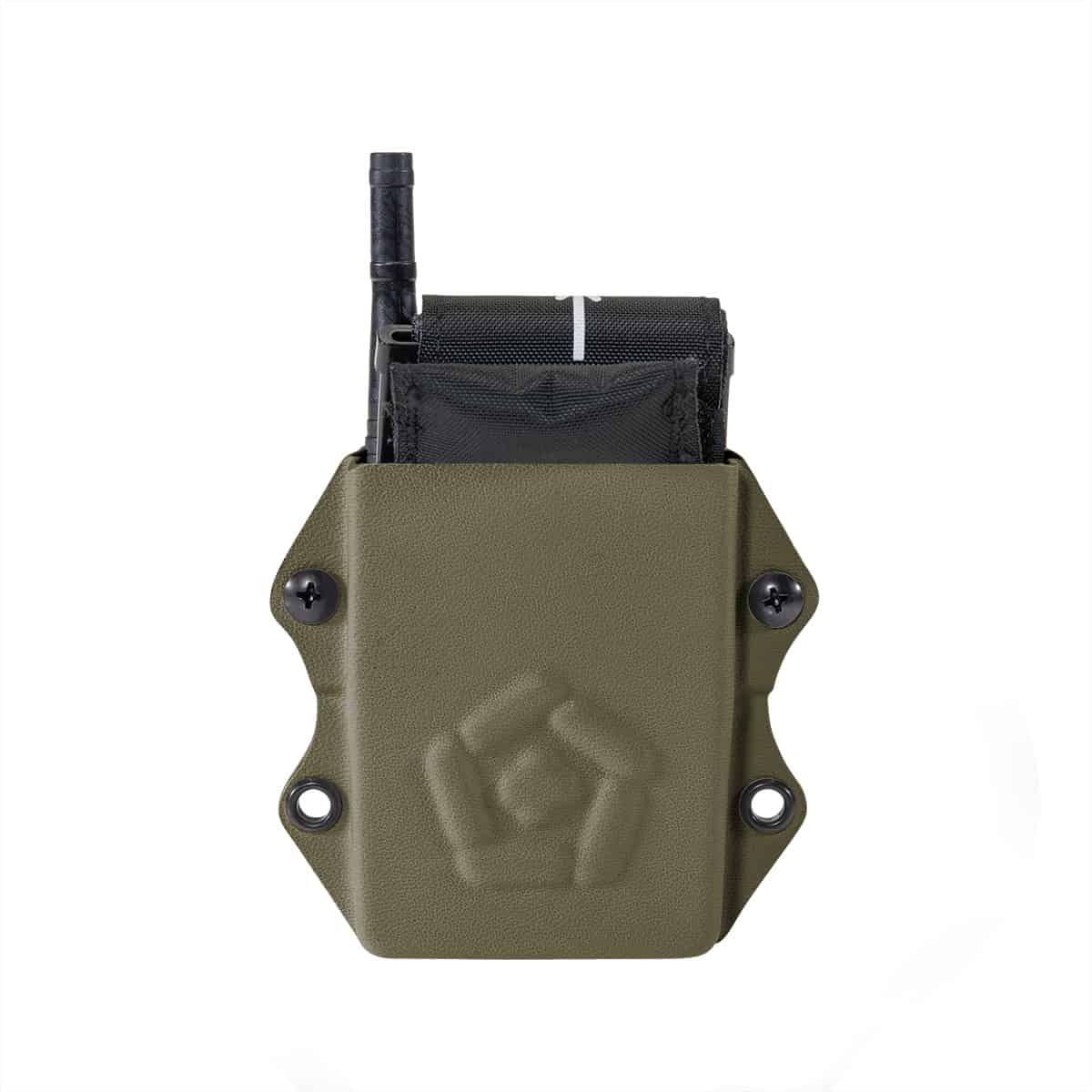

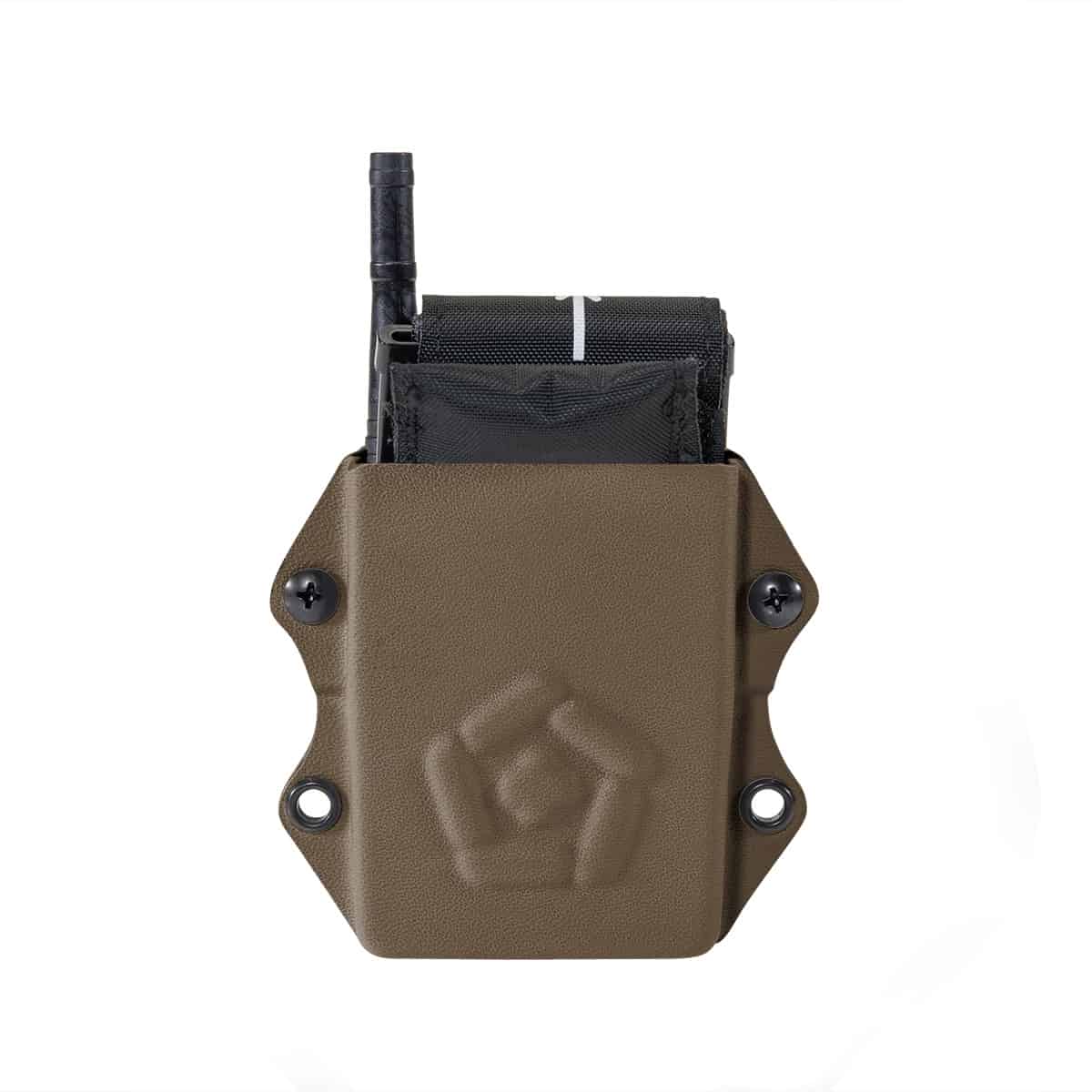

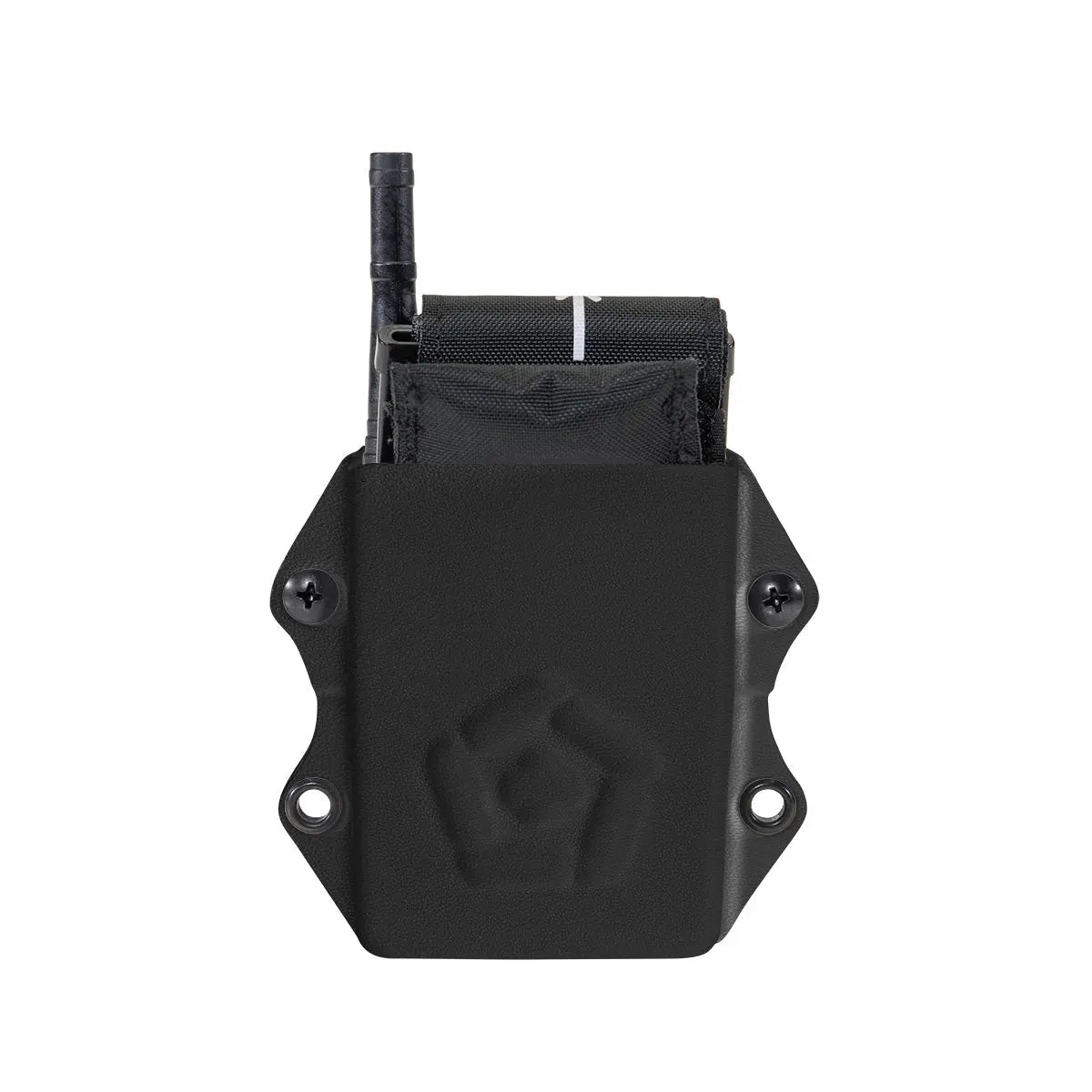

The included Kydex® rigid holster is custom-molded to the TMT™ form factor and attaches to belts, plate carriers, and MOLLE webbing via Malice Clips, providing positive, low-resistance extraction in a single pull. The rigid shell protects the windlass mechanism from compression damage and the band from UV and environmental degradation. At a 3.4″ × 3.5″ × 2″ footprint and roughly 3.2 oz, the holster adds a well-protected, immediately accessible tourniquet to any loadout.
Apply a limb tourniquet high and tight on the proximal third of the limb — never directly over or across a joint. Position the device, remove all slack from the band before turning the windlass, then rotate the windlass until bleeding stops and the distal pulse is eliminated. Secure the windlass in its retention clip, dress the remaining strap, and write the application time on the casualty. Reassess after movement or any change in patient position.
This summary is not a substitute for accredited training or local protocol.
The TMT™ is also available as a component of the TMT RAP Carrier Kit and the RAP MOLLE Bleeding-Control Kit. Compare with the C-A-T Gen 7 and SAM XT, or browse the full tourniquets & pouches collection.
Where the TMT™ w/Rigid Holster SET is Deployed
- Duty belt carry for law enforcement — rigid holster provides structured protection and one-second extraction without unfolding a pouch.
- Vehicle and aircraft crew equipment — rigid mount stays secure in crash, vibration, and environmental exposure without pouch degradation.
- Pre-hospital emergency responders — BLS and ALS providers equipping individual responders for rapid tourniquet deployment on scene.
- Military garrison and institutional carry — rigid holster withstands repetitive draw-and-reset training cycles better than soft pouches.
- Fixed-position security posts — mounting the rigid holster on a desk, locker, or wall bracket keeps the TMT® immediately accessible without a belt system.
TMT™ w/Rigid Holster vs. TMT™ Standalone vs. MOJO® Soft Holster
- TMT™ w/Rigid Holster SET (this product): TMT® tourniquet + injection-molded rigid holster — structured protection, one-second extraction, vehicle/belt/wall mount.
- TMT™ Standalone (PDF185): TMT® tourniquet only — no holster; insert into any standard tourniquet carrier or IFAK pouch you already have.
- MOJO® Belt Holster w/TMT (88-115-03): Soft 500D nylon holster with red pull strap — lighter, more flexible; better for MOLLE integration and body movement.
- TMT™ Black (tmt-us-black): Civilian/tactical black colorway standalone — identical mechanism to the standard Orange/Military colorway.
- CAT Gen 7 Tourniquet: Primary CoTCCC alternative; windlass mechanism vs. TMT® cam-buckle — both CoTCCC recommended; choice often depends on agency protocol or personal preference.
Frequently Asked Questions
Q: What limb range does the TMT® accommodate?
A: The TMT® accommodates limb circumferences from 5¾″ to 38″ (14.6 cm to 96.5 cm), covering pediatric through large adult extremities and allowing application over bulky clothing.
Q: Is the TMT™ CoTCCC recommended?
A: Yes. The Tactical Mechanical Tourniquet (TMT®) is a CoTCCC-recommended device for extremity hemorrhage control. Its no-internal-band design simplifies removal and resetting; dual locking mechanisms prevent slippage; and the click-confirmation torsion bar confirms secure occlusion. UV-protective additives allow storage outside packaging.
Q: Can the TMT™ be applied with one hand for self-aid?
A: Yes. The TMT® is taught as both a self-aid and buddy-aid task. Applying high and tight on the proximal third of the affected limb, the no-internal-band design and cam-buckle mechanism allow single-handed application. The quick-disconnect buckle also enables trapped-limb application scenarios.
Q: What is different about the rigid holster compared to a soft MOJO® pouch?
A: The injection-molded rigid holster provides structured protection against crushing, moisture, and mechanical deformation — important for vehicle mounts, aircraft crew, and environments where a soft pouch may collapse around the tourniquet. It also enables faster one-second draw without the user needing to open or unzip anything. The MOJO® soft holster offers better MOLLE conformability and is lighter on a running duty belt.
Related searches: tactical mechanical tourniquet, TMT tourniquet holster, CoTCCC-recommended tourniquet, 2 inch wide tourniquet, Kydex tourniquet holster, TQ-RAM compatible tourniquet, NSN 6515-01-656-6191
All products sourced from the actual brand manufacturer or authorized master distributors. CoTCCC recommendation status verified where applicable. Ships from MED-TAC International, Pembroke Pines, FL — clinician-founded, veteran-led, SDVOSB-certified.
Available Options:
- Black / Black
- Black / Olive Drab
- Black / Coyote Tan
- Black / Multicam
- Orange / Black
- Orange / Olive Drab
- Orange / Coyote Tan
- Orange / Multicam
Specifications coming soon. Contact us for detailed product information.
