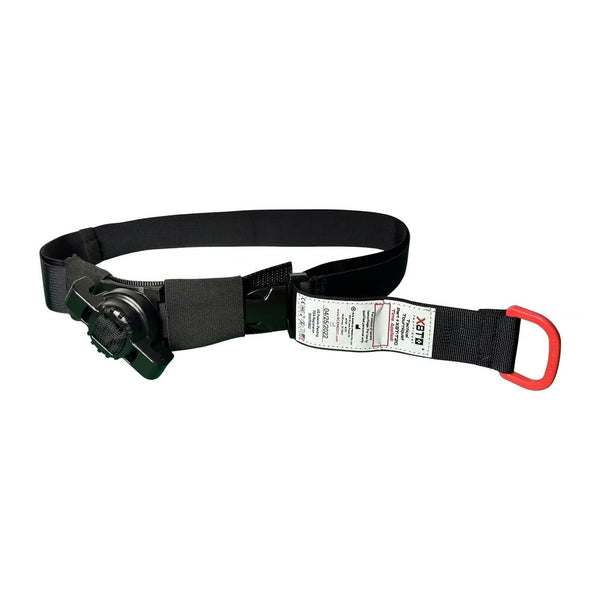

The X8T's case is security: a dial that holds every click on its own and a strap that cannot come unthreaded — so there is no rod to secure and no hook-and-loop to press down.
At a glance
12 things to know about the X8T
How the dial works, what an independent lab found, and the handful of things that trip people up.
-
01
A dial instead of a rod
RCR's Maximum Efficiency Dial sits on a toothed base; the interlocking teeth let it turn one way only, and each turn twists a strap anchored at both redirects, shortening the whole width of the strap around the limb.3,4 It self-secures and allows incremental tightening and release.3
-
02
Ten clicks make a half-turn
Ten tooth advances equal 180° of dial rotation — the same as one half-turn of a windlass rod — so pressure goes up in much finer steps.4 In the lab, adding a click after the first completion took a median of 2 seconds, against medians of 10 to 18 seconds for windlass-rod tourniquets.4
-
03
It occluded every time in a 40-person lab study
Drake University researchers applied the X8T to the arms and thighs of 40 volunteers: all 80 applications reached arterial occlusion, and median occlusion pressures were 298 mmHg on the arm and 359 mmHg on the thigh. Holding occlusion for 100 seconds took one or more extra clicks in 5 of 40 arm and 28 of 40 thigh applications.4 The devices were donated by RCR; the study had no outside funding.
-
04
Lower completion pressure
Because the strap shortens across its full width and in fine increments, X8T completion pressures were lower than those of four windlass-rod tourniquets tested on largely the same volunteers.4 The authors point out that completion pressure is what matters for pressure injury to the tissue underneath, especially on a long transport.
-
05
Nothing to secure
In a 64-person study of eight tourniquet designs, self-securing tightening systems such as the X8T's had no securing struggles and no tightening-system security failures; windlass-rod designs had 58 securing struggles, and 103 of the 109 applications left incorrectly secured involved hook-and-loop or rod-securing steps. One X8T application was left unsecured through a strap-routing mistake.5
-
06
Keep turning past the point it stops
The most common reason for failure in that study was stopping too soon, and it happened most often with the X8T, the TMT™ and the SOF®TT-W Gen 3 — with the X8T, appliers tended to keep hand pressure on the dial between clicks.5 The researchers recommend at least one click past occlusion, and suggest aiming for two clicks past the point the visible bleeding stops before checking for a distal pulse.4,5
-
07
Know where to pull
In the same study, 28.1% of appliers had some difficulty working out where to pull on the X8T, a problem seen with no other design.5 The free end carries a red pull tab that keeps the strap from unthreading, and the Gen 3 label carries a printed PULL arrow.3,4 Practice removes the guesswork.
-
08
A clip for a trapped limb
The quick-release side buckle opens the loop so the strap can go around a limb that cannot be lifted, then clips shut.3,5 Gen 3 updates and shortens the buckle and adds an integrated curve for small limbs.3
-
09
Releasing it takes strength — Gen 3 adds a conversion key
The lab team found releasing the Gen 2 dial sometimes very difficult, needing more hand strength than most bracket-secured windlass tourniquets, with the first release hard to limit to one click.4 RCR's Gen 3 integrates a conversion key into the D-ring for a slow, controlled release when converting to a secondary dressing.3
-
10
Small limbs
RCR rates the X8T for limbs from adult size down to a pediatric 2T — 37.5 in. to 5 in. around — with Gen 3's curved buckle fitting the smaller end.3 The lab team notes that the length of the dial base does not allow pressure around cylinders quite as small as some windlass tourniquets can reach.4
-
11
Three colors, three jobs
Black X8T-T is the Tactical model and Orange X8T-E the high-visibility Emergency model — the same device in two colors.3 Blue X8T-P is the Practice unit, royal blue so it is never mistaken for a live tourniquet, and built to be used hundreds of times.3 It is a training device: never stage it in a kit.
-
12
Registered, labeled and made in the USA
RCR Medical Products (McKinney, Texas) is an FDA-registered manufacturer, and the X8T is listed as a Class I nonpneumatic tourniquet (product code GAX) — the 510(k)-exempt class every non-pneumatic limb tourniquet sits in; its device record marks it single use.6,7 The strap label carries a Time Applied field.3
How to apply the X8T
RCR's position–cinch–rotate sequence, inside the placement rules taught in TCCC and TECC.
-
1Choose the placement. Under threat, or when you cannot find the source: high and tight — as high on the limb as possible, over clothing. When it is safe and you can see the wound: bare skin, 2–3 in. above it. Never across or directly over a joint; if that spot lands on the knee or elbow, go above the joint.1
-
2Position. Slide the loop over the limb, or unclip the quick-release buckle, pass the strap around a trapped limb and clip it shut.3
-
3Cinch. Pull the free end by the red tab as tight as you can before you touch the dial — the dial finishes the job; a loose strap costs clicks.3,4
-
4Rotate. Turn the dial. It clicks and holds each click on its own. Keep turning until the bleeding stops and the distal pulse is gone. It will hurt.1,3
-
5Hands off, then check. Take your hand off the dial, look and feel again, and add clicks if bleeding or a pulse returns — then one or two more.4,5
-
6Record the time. Write the application time in the Time Applied field on the strap label and tell the receiving team.1,3
-
7Reassess. If bleeding continues, keep tightening or apply a second tourniquet side-by-side with the first.1
-
8Leave it on, or convert if you are trained to. For a civilian, and especially after self-aid, leaving it on for the receiving clinicians is good practice. Under TCCC, a tourniquet is converted to a hemostatic or pressure dressing as soon as possible — with every effort to do it within 2 hours — when the casualty is not in shock, the wound can be watched closely and it is not an amputation.1 On Gen 3, the conversion key controls the release.3
Where it fits
- Life-threatening bleeding from an arm or leg
- Any traumatic amputation, even one that is barely bleeding
- A trapped limb you cannot lift — unclip, wrap, clip
- Public-access and emergency kits (Orange) and tactical carry (Black)
- The neck, armpit or groin crease — those wounds are packed and pressed, not tourniqueted; the chest and abdomen are never packed
- Placement across or directly over a joint
- Minor bleeding that direct pressure or a pressure dressing controls
- Casualty care with the Blue X8T-P — it is a practice unit
The evidence
Three independent studies tested the X8T itself. Here is what each found, including the problems.
| Study | Evidence type | What was studied | What it found |
|---|---|---|---|
| Wall et al., J Spec Oper Med 2026 | Human volunteer | X8T-T2G applied to mid-arm and mid-thigh of 40 volunteers (80 applications), held 100 s, compared with four 1.5 in. windlass-rod tourniquets | All occluded; median occlusion 298 mmHg arm, 359 mmHg thigh, lower than windlass rods; extra clicks took 2 s; release sometimes very difficult |
| Wall et al., J Spec Oper Med 2023 (processes) | Human volunteer · 64 appliers | Eight tourniquets, including the X8T, each applied by 64 appliers to live thighs with Doppler monitoring | Self-securing systems had no securing struggles; stopping too soon most frequent with X8T, TMT™ and SOF®TT-W Gen 3; 28.1% unsure where to pull on the X8T |
| Wall et al., J Spec Oper Med 2023 (times) | Human volunteer · 64 appliers | Times for each step of the same 512 applications, from video | Touching the tightening system to last occlusion: X8T 7.6 s vs C-A-T® Gen 7 4.2 s; from a tight strap to secure and done: X8T 9.8 s vs C-A-T® Gen 7 14.5 s |
| McCarty et al., JAMA Surg 2019 | Manikin · randomized crossover | 102 laypeople trained on the C-A-T® then applied five tourniquet types; the X8T was not tested | 92.2% correct with the trained design vs 11.8–68.6% with others — skills did not fully transfer |
All three X8T studies come from one laboratory, used uninjured volunteers in good light with few distractions, and substituted a Doppler signal for bleeding — strong for comparing designs, short of field data. RCR advertises application and securing in 8 seconds; earlier work from the same laboratory measured a median of 37.4 seconds from picking the X8T up to completing the application.3–5
How it compares
The X8T against the windlass tourniquet most buyers know.
| X8T™ | C-A-T® Gen 7 | |
|---|---|---|
| Tightening | Ratcheting rotary dial — 10 clicks per half-turn | Windlass rod, half-turns |
| Securing | Self-securing: dial locks every click; strap cannot unthread | Windlass clip, windlass strap and hook-and-loop strap |
| Strap width | 1.5 in. | 1.5 in. |
| Limb range / length | 5–37.5 in. around (RCR Gen 3) | Open length 37.5 in. |
| Quick-release clip for a trapped limb | Yes — side-release buckle | No — the strap is threaded |
| Weight | ≈4.2 oz (120 g), measured | 2.7 oz |
| Trainer | Blue X8T-P practice unit | Blue C-A-T® Gen 7 trainer |
| evidence-based standard | No | Yes — NSN 6515-01-521-7976 |
X8T figures from RCR Medical and the Wall laboratory; C-A-T® figures from North American Rescue and the same laboratory.3–5,9 Absence from the evidence-based list does not by itself mean a device was tested and failed.2
Build the system
evidence-based standard tourniquets to weigh it against, the dressings that work alongside it, and trainers to practice on.
