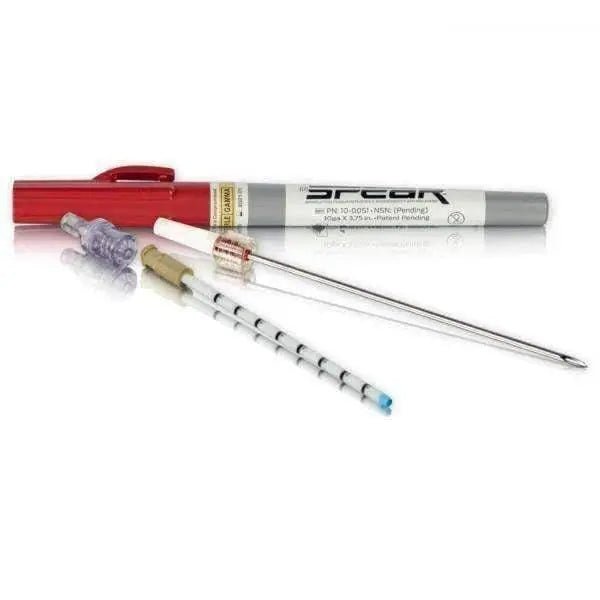

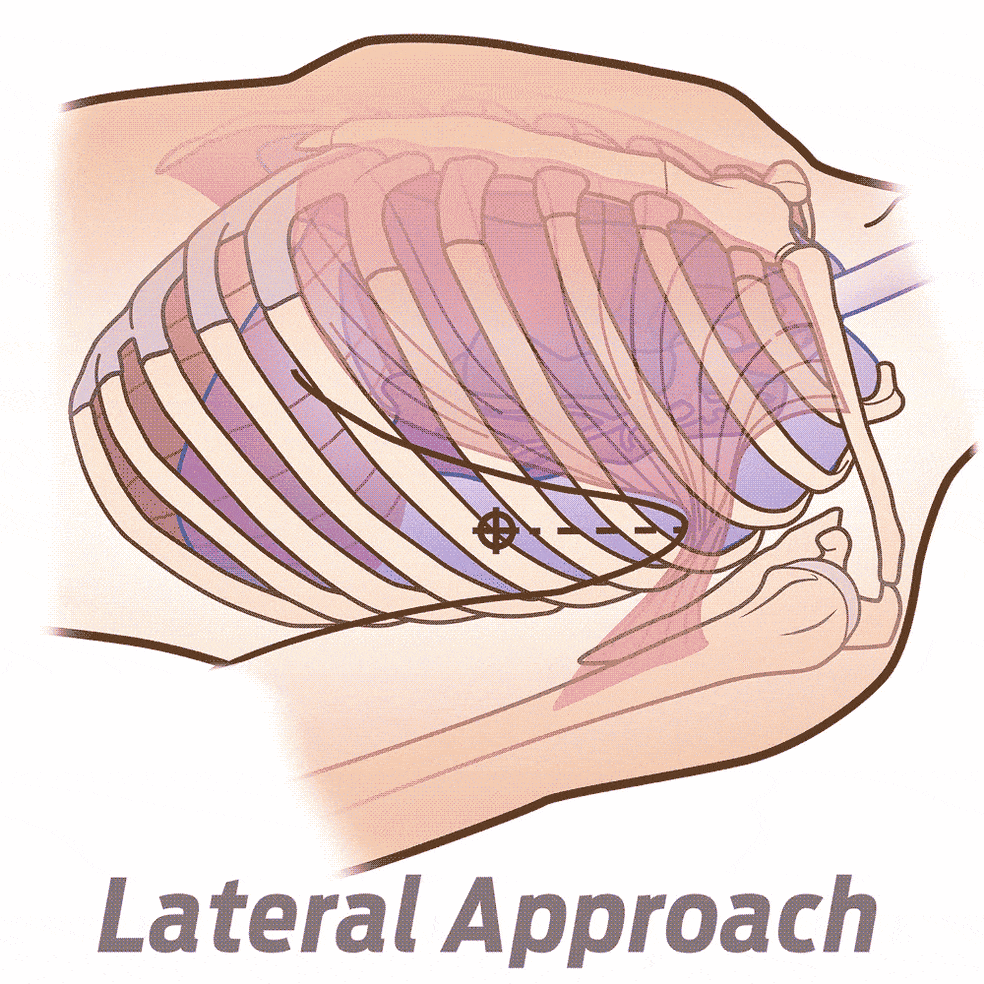

The North American Rescue SPEAR (Simplified Pneumothorax Emergency Air Release) Device is the latest innovation in needle decompression technology. The versatile device has been designed and developed based directly on science, user feedback, and known gaps in the management of tension pneumothorax. Each design feature has been carefully crafted to enhance the user experience and increase the probability of success when a life is on the line. The convenient device allows either lateral decompression or traditional anterior needle thoracostomy.

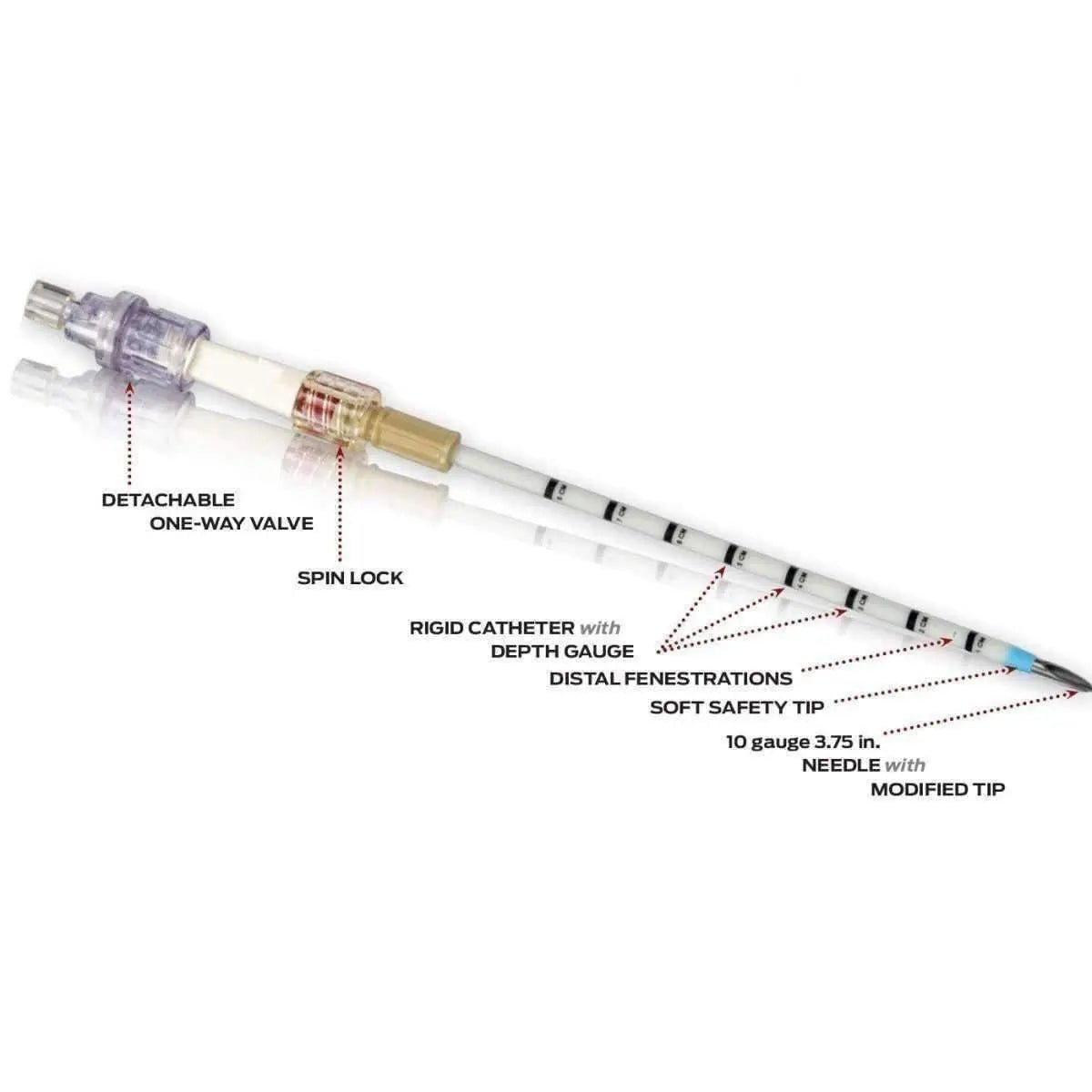

The SPEAR device features a sharper needle point, reducing the amount of force required to insert the needle, as well as a spin-lock features that helps prevent premature separation between the needle and catheter. To help with confirmation of depth and success, the device has centimeter depth markings and a detachable, low pressure one-way check valve that creates an audible whistle as air rushes through.
The one-way valve can be removed from the needle and either reapplied to the catheter or left off entirely, according to local protocols. Upon removal of the needle, the remaining catheter is a rigid, kink-resistant material with a soft tip to lessen the impact on possible tissue contact. Also, the catheter features 3 fenestrations (holes) along the length to aid in air flow.
The latest TCCC Guidelines have allowed for a 10 Ga Needle in addition to the traditional 14 Ga product. The larger lumen increases the area of flow by more than two and a half times. The additional length of the SPEAR device (total catheter length: 3.75 in.) should allow the user to reach and maintain access to the pleural space in a vast majority of the population.
This video will show the LEFT ANTERIOR insertion site, but the SPEAR can be placed in Anterior and Lateral sites bilaterally.
Description
The North American Rescue SPEAR (Simplified Pneumothorax Emergency Air Release) Device is the latest innovation in needle decompression technology. The versatile device has been designed and developed based directly on science, user feedback, and known gaps in the management of tension pneumothorax. Each design feature has been carefully crafted to enhance the user experience and increase the probability of success when a life is on the line. The convenient device allows either lateral decompression or traditional anterior needle thoracostomy.
The SPEAR device features a sharper needle point, reducing the amount of force required to insert the needle, as well as a spin-lock features that helps prevent premature separation between the needle and catheter. To help with confirmation of depth and success, the device has centimeter depth markings and a detachable, low pressure one-way check valve that creates an audible whistle as air rushes through.
The one-way valve can be removed from the needle and either reapplied to the catheter or left off entirely, according to local protocols. Upon removal of the needle, the remaining catheter is a rigid, kink-resistant material with a soft tip to lessen the impact on possible tissue contact. Also, the catheter features 3 fenestrations (holes) along the length to aid in air flow.
The latest TCCC Guidelines have allowed for a 10 Ga Needle in addition to the traditional 14 Ga product. The larger lumen increases the area of flow by more than two and a half times. The additional length of the SPEAR device (total catheter length: 3.75 in.) should allow the user to reach and maintain access to the pleural space in a vast majority of the population.
This video will show the LEFT ANTERIOR insertion site, but the SPEAR can be placed in Anterior and Lateral sites bilaterally.
