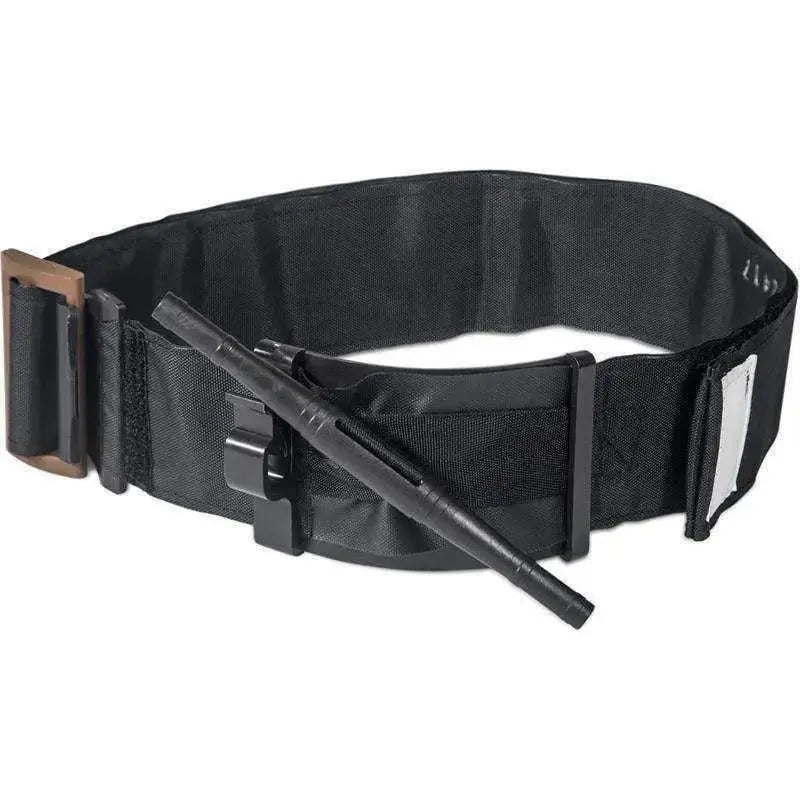

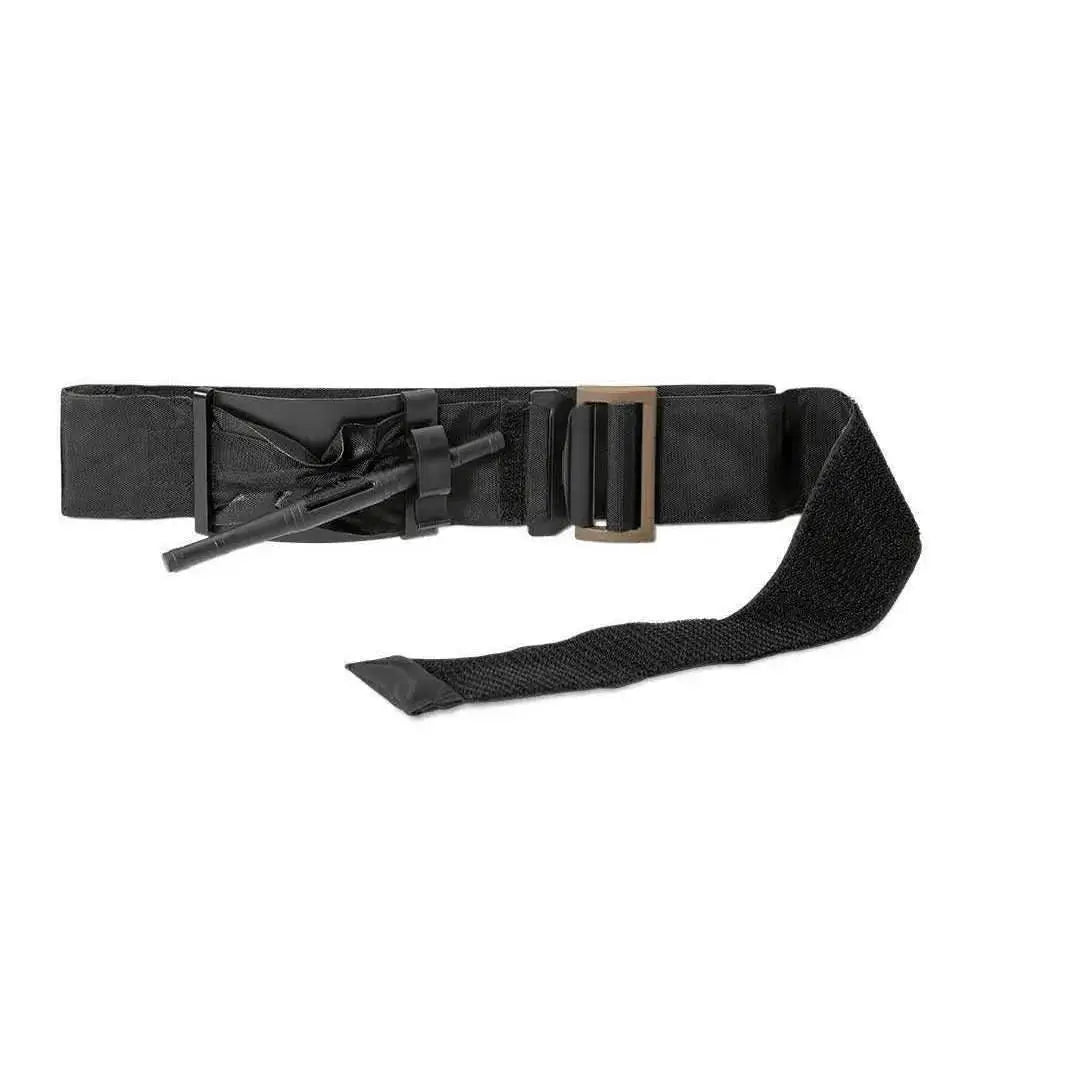

The Tactical Mechanical Tourniquet (TMT™) w/Rigid Holster SET by Safeguard Medical bundles the CoTCCC-recommended TMT™ tourniquet with a custom Kydex® rigid holster and Malice Clip attachments. The 2"-wide co-poly resin acetyl band delivers consistent arterial occlusion from 5.75" to 38" circumference; the Kydex holster provides positive, one-handed access and is compatible with belts, plate carriers, and MOLLE platforms. Available in Black or Orange tourniquet with Black, OD, Coyote Tan, or Multicam holster. NSN: 6515-01-656-6191.
Key Specifications
| Specification |
Detail |
| Manufacturer |
Safeguard Medical (joint venture including Combat Medical) |
| SKU (Primary) |
CMS-TMT (Black/Black); additional color combos available |
| NSN |
6515-01-656-6191 (TMT) |
| Combined Weight |
~5 oz packaged (TMT 3.5 oz + holster 3.2 oz) |

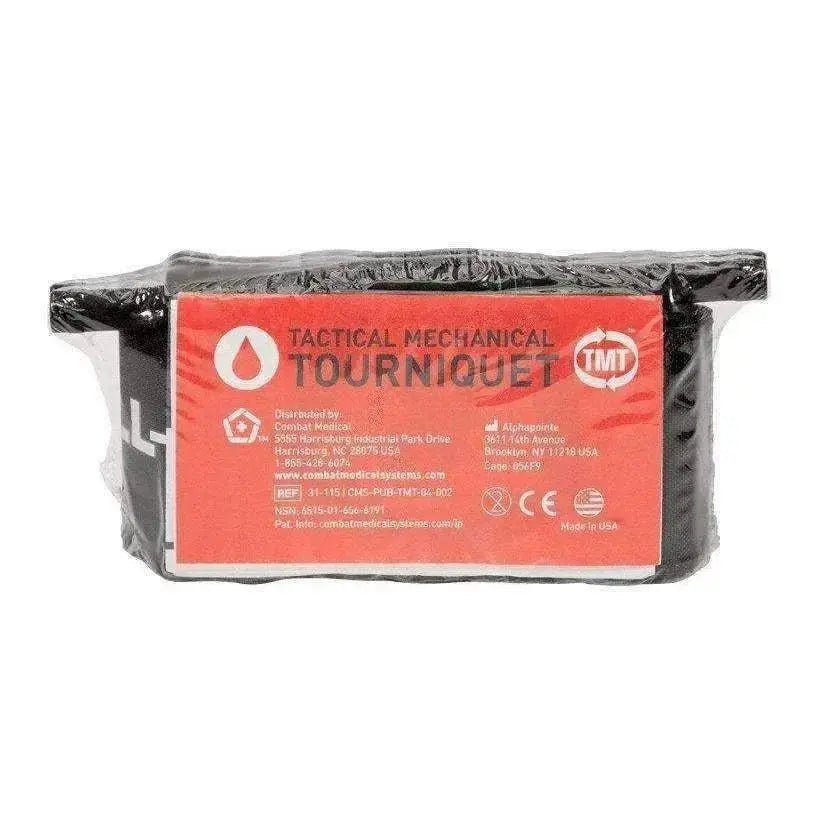

| TMT Dimensions (packaged) |
4.5" H × 2.5" W × 1.85" D (packaged) | 38.7" × 2.25" (open) |
| Holster Dimensions |
3.4" L × 3.5" W × 2" D (Kydex housing) |
| TMT Band Width |
2" (wider than 1.5" CAT/SOF band — reduces occlusion pain and improves pressure distribution) |
| TMT Limb Circumference Range |
5.75" minimum to 38" maximum (single device); two TMTs can be linked for larger circumferences |
| TMT Material |
Co-poly resin acetyl with IR/UV protection |
| Holster Material |
Kydex® (custom-molded) with Malice Clip attachments |
| Tourniquet Colors |

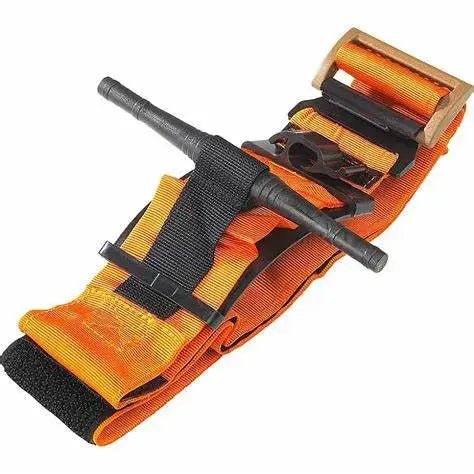

Black | Orange |
| Holster / Case Colors |
Black | Olive Drab | Coyote Tan | Multicam |
| CoTCCC Status |
CoTCCC-recommended | CE Approved |
| Shelf Life |
Indefinite (controlled environment); up to 10 years (operational storage) |
| TQ RAM Compatible |

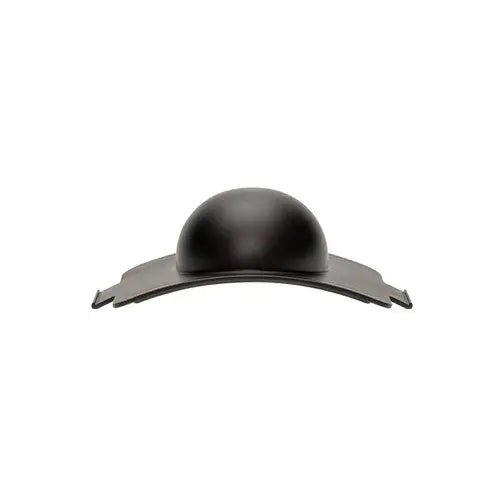

Yes — dual slots on TMT base plate accept TQ-RAM™ point pressure device (sold separately) |
Product Overview
Product Overview

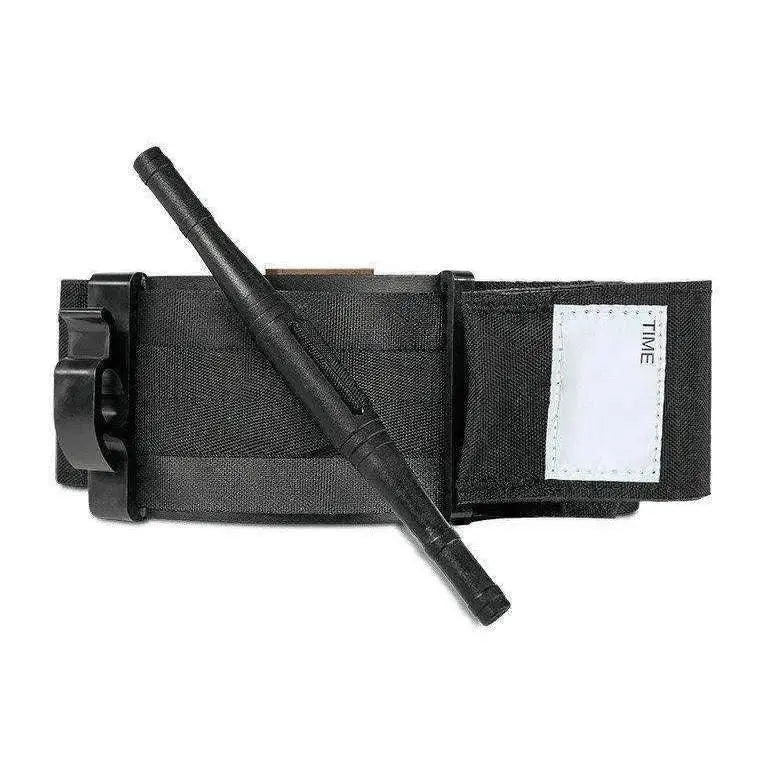

The Tactical Mechanical Tourniquet™ (TMT™) is a CoTCCC-recommended limb tourniquet developed by Combat Medical (now part of Safeguard Medical). Its 2"-wide band distinguishes it from the 1.5" standard of the C-A-T Gen 7 and SOF® Tourniquet — a meaningful clinical difference: wider bands distribute occlusion pressure over a larger tissue surface area, reducing localized nerve and vessel compression, lowering occlusion pain intensity during prolonged application, and improving performance on proximal thigh wounds where a narrow band may seat less effectively.

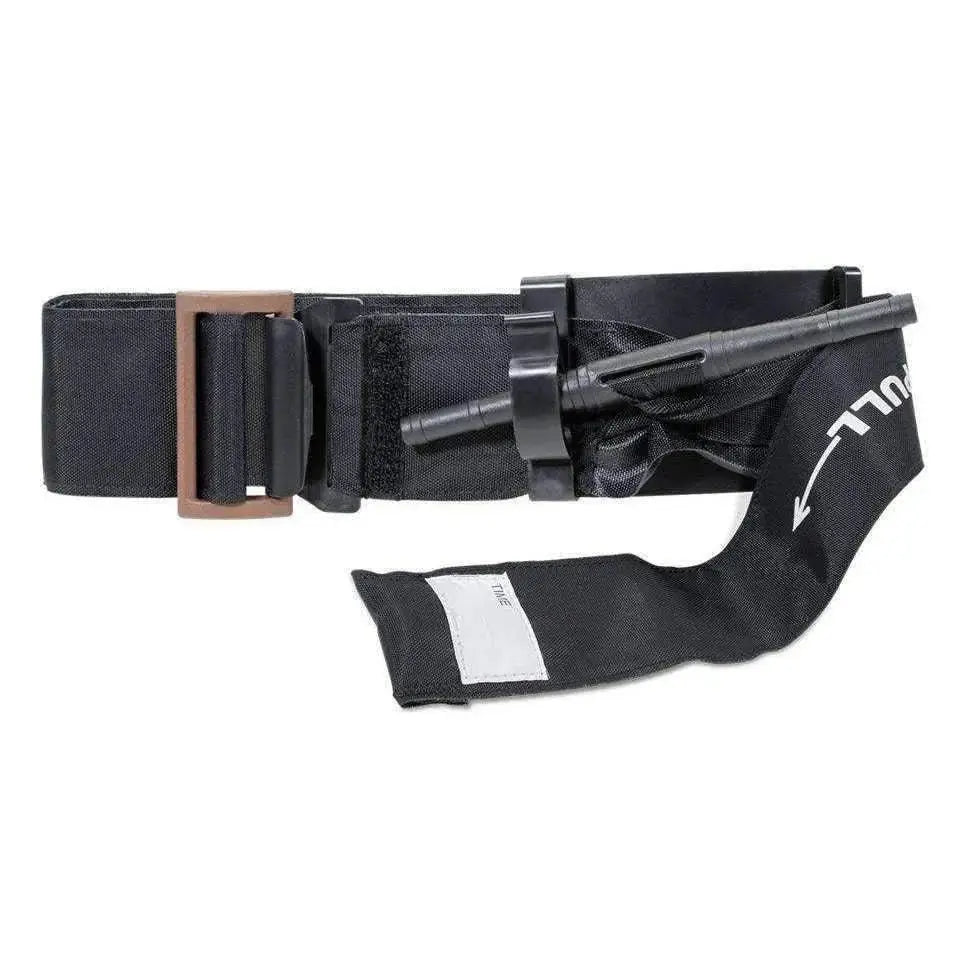

The TMT's windlass mechanism combines hook-and-loop closure familiar from the C-A-T with a quick-detach clip reminiscent of the SOF® Tourniquet — delivering a hybrid application sequence that some users find easier to train under combined C-A-T and SOF paradigms. The base plate of the TMT contains two dedicated slots for the TQ-RAM™ point pressure device (sold separately), enabling the TMT to serve as the anchoring compression platform for wound packing maintenance in junctional or proximal injuries where the tourniquet band alone cannot control bleeding. This extended capability is unique to the TMT among all CoTCCC-recommended limb tourniquets.

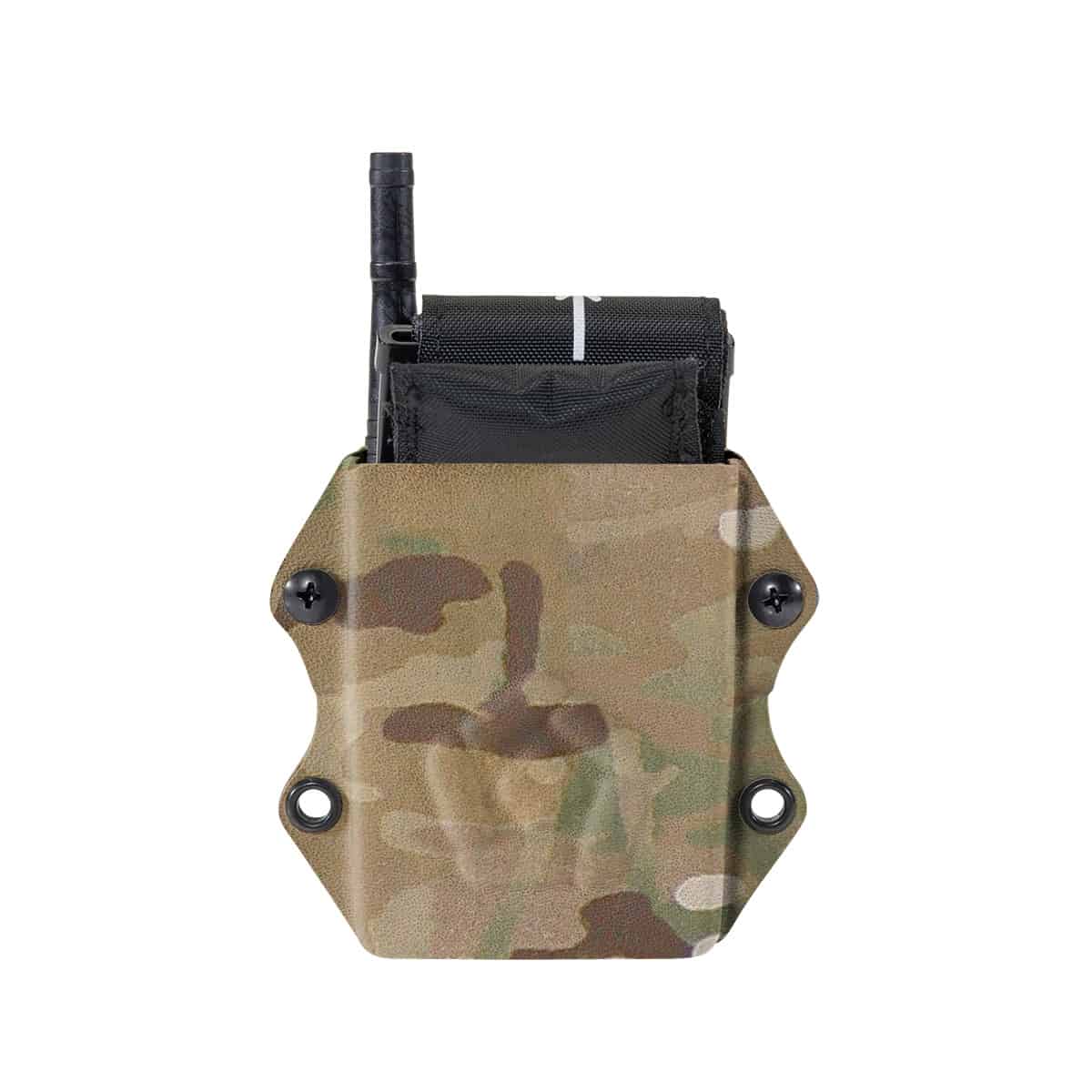

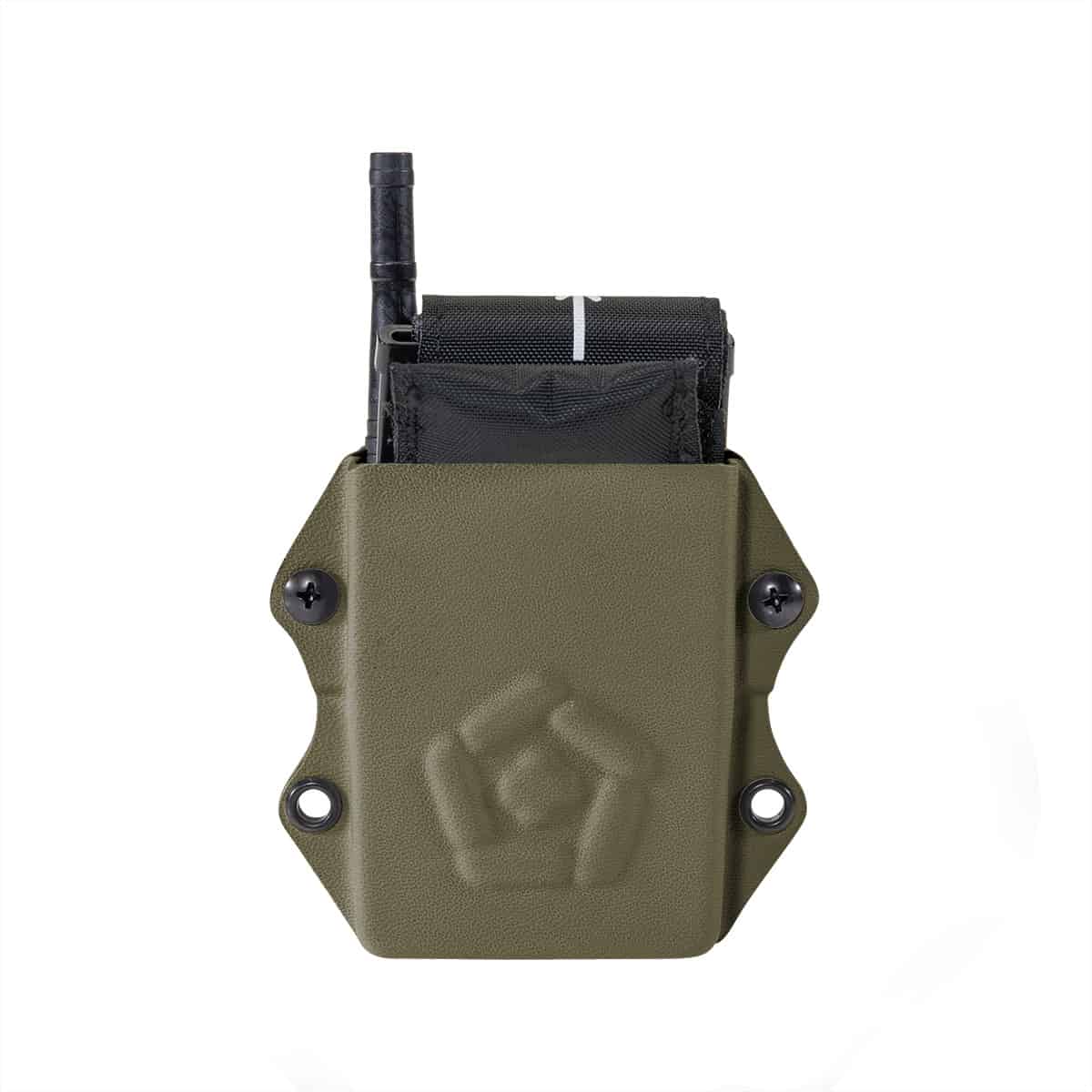

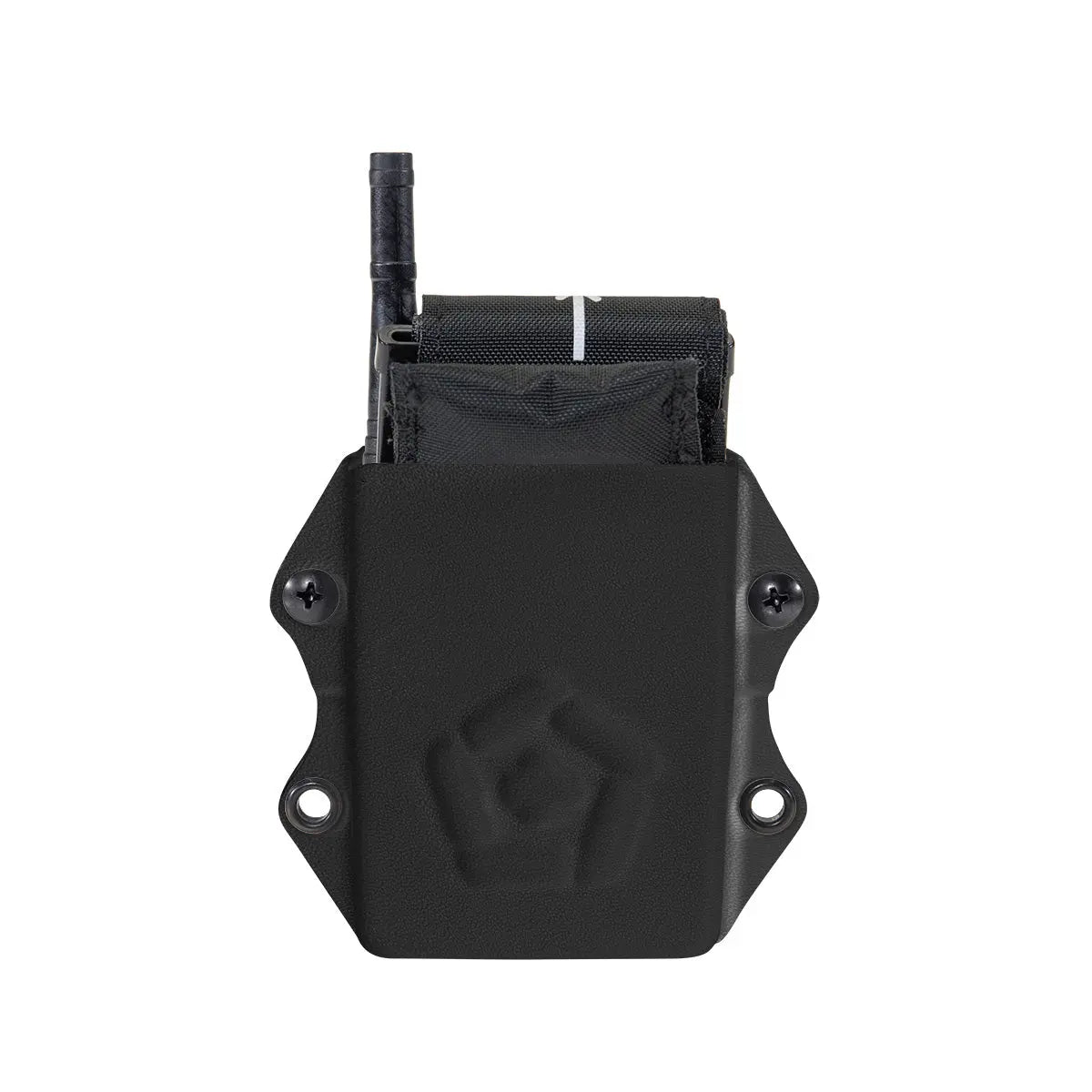

The Kydex® Rigid Holster included in this bundle is custom-molded to the exact TMT form factor and attaches to belts, plate carriers, and MOLLE webbing via Malice Clips — providing positive, low-resistance extraction in a single pull. The rigid shell protects the TMT windlass mechanism from compression damage and UV/environmental degradation. With a 3.4" × 3.5" × 2" holster footprint and 3.2 oz weight, the complete system adds a well-protected, immediately accessible tourniquet to any operator's loadout. The co-poly resin material of the TMT band includes IR and UV inhibitors for resistance to field storage conditions, and the shelf life extends up to 10 years in operational storage.
How to Apply the TMT
-
Position — Flick the TMT open and slide or thread it over the injured limb, placing it 2–3 inches above the wound. Ensure the arrow on the strap points toward the patient's heart (proximal).
-
Cinch — Pull the strap across and through the buckle, removing all slack. No fingers should fit under the band before windlass rotation begins.
-
Secure the strap — The hook-and-loop section holds the strap in place; confirm no slack remains.
-
Rotate windlass — Turn the windlass until bleeding stops and no distal pulse is palpable. The quick-detach clip will hold the windlass during rotation.
-
Lock — Clip the windlass into the retention clip and secure the remaining strap over the windlass.
-
Document — Write the application time immediately. Reassess after transport or patient position changes.
The TMT is also available as a component of the TMT RAP Carrier Kit and RAP Stop the Bleed Kit. Compare with the C-A-T Gen 7 and SAM XT. Browse the full tourniquets & pouches collection.
